15KVA Water Cooled Three Phase Diesel Electric Generator Powered By Fawde Engine

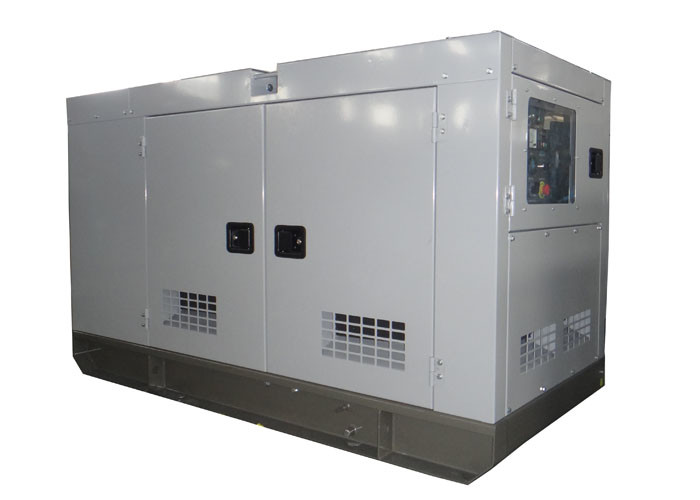

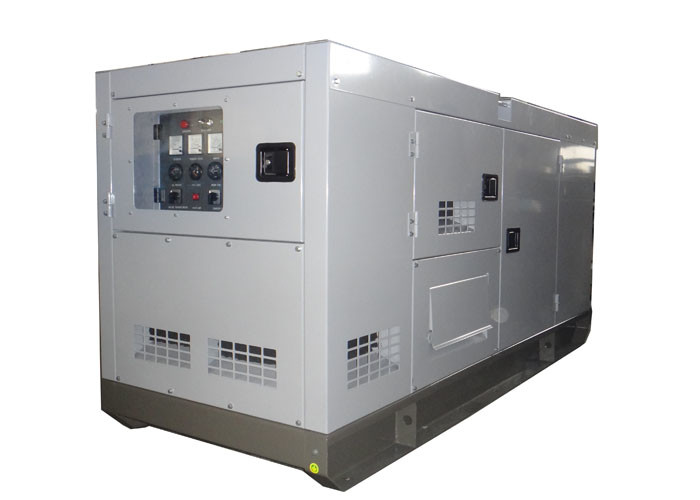

Generator soundproof/Silent and canopy
1) Excellent ventilation
2) Black finish stainless steel locks and hinges
3) Zinc plated or stainless steel fasteners
4) Body made from steel components treated with polyester powder coating
5) Two large doors on either side
6) Radiator fill access plate
7) Fully guarded cooling fan and battery charging alternator
8) Fuel fill and battery access via lockable access doors
9) Emergency stop button on canopy exterior
10) Lube oil drain and radiator drain to exterior
11) Control panel viewing window
12) Lifting points on base frame
Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Genset Spes:
1. SPECIFICATIONS OF GEN-SET | ||
1.1 | Set Model | GP17FWS |
1.2 | Prime at 50HZ, 40℃ ambient | 12KW 15KVA |
1.3 | Standby at 50HZ, 40℃ ambient | 13.2KW 16.5KVA |
1.4 | Rated Gen-set output | 230/400V 50Hz |
1.5 | Rated Relative humidity | ≤ 60 % |
1.6 | Dimension (L×W×H) | 2000×930×1100MM |
1.7 | Weight | 800KGS |
1.8 | Noise level at 7 meter | 66dba |
1.9 | Fuel consumption 100% prime load | 3.3 |
1.10 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
1.11 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
2. SPECIFICATIONS OF ENGINE | ||
2.1 | Engine Brand | FAWDE |
2.2 | Engine Model | 4DW81-23D |
2.3 | Governor/Class | Machanical or Electronic |
2.4 | Cylinder NO. | 4 |
2.5 | Engine build | Line |
2.6 | Emission compliant | Stage II |
2.7 | start-up method | 12V, electric |
2.8 | Air intake type | Natural |
2.9 | Cooling mode | Water Cooling |
2.10 | Bore and stroke | 85×100 mm |
2.11 | Compression ratio | 17:01 |
2.12 | Displacement | 2.27 |
2.13 | Engine Prime Power at 1500rpm | 17KWm |
2.14 | Engine Standby Power at 1500rpm | 19KWm |
2.15 | Lubrication oil capacity | 7.8L |
2.16 | Oil consumption | 0.05 |
2.17 | Dry weight of base | 220Kg |
2.18 | Dry weight of Gen Pac | 240Kg |
2.19 | Overall dimension(G.P) | 920×610×760(mm) |
2.2 | Overall dimension(base) | 750×555×680(mm) |
2.21 | 27℃ air consumption ( m³/ min) | 1.4 |
2.22 | Fuel type | #0 Diesel (Natural temperature) |
2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
3. SPECIFICATIONS OF ALTENATOR | ||
3.1 | Alternator Model | G164D |
3.2 | Alternator Type | A.C. Synchronous |
3.3 | Rated Voltage | 230/400V |
3.4 | Rated Frequency | 50HZ |
3.5 | Rated speed | 1500 RPM |
3.6 | Voltage regulation mode | Auto |
3.7 | Alternator voltage regulation | ±0.5% |
3.8 | Exciting mode | Brushless self exciting |
3.9 | Power factor | 0.8 (lagging) |
3.10 | Phase & wires | 3 phase 12 wires |
3.11 | Rated currency | 23A |
3.12 | Efficiency | 81.70% |
3.13 | Insulation class | H |
3.14 | Protection class | IP23 |
3.15 | Single load step to NFPA110 | 100% |
3.16 | Standards | IEC34-1,NEMA1 |
3.17 | Max. Ambient Temperature | 40℃ |
3.18 | Min. Ambient Temperature | - 20℃ |
3.19 | Max. altitude | 1000m |
3.20 | Weight | 99kg |
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
Company Details:
Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.
Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
