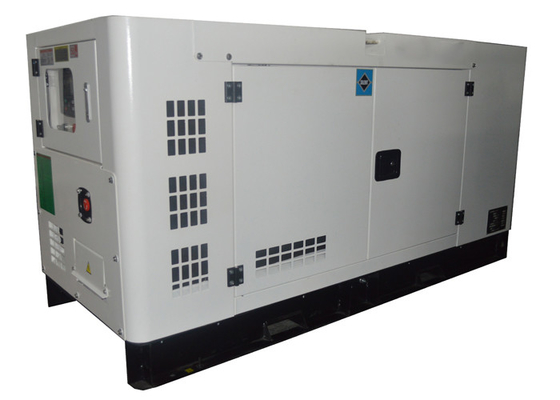

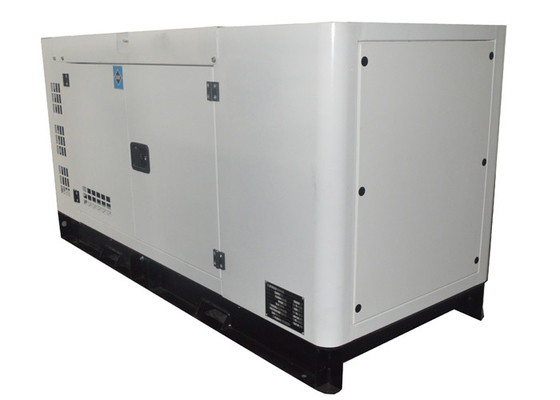

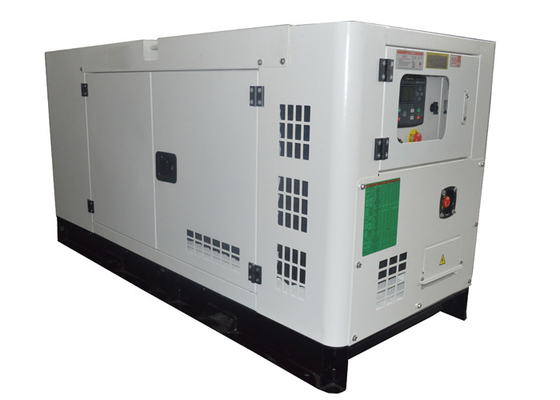

20 Kw Cummins Engine Super Silent Generator Set Stamford Alternator Low Noise
20kva FAWDE diesel generator specification:
| Genset Model |
GP28DCS |
| Prime Power |
20KW/25KVA |
| Standby Power |
22KW/28KVA |
| Phase Number |
3 |
| Power Factor |
0.8 |
| Rated Voltage |
230/400V |
| Frequency |
50 HZ |
| Rated Current |
30A |
| Genset Structure |
Silent |
| Noise Level |
65dB (7meters) |
| Dimension (Silent type) |
2000x940x1200MM |
| Net Weight(Silent type) |
1100KG |
| |
|
| Engine Model |
CUMMINS / 4B3.9-G1 |
| Engine Features |
4-cylinder,4 stroke,water cooled, direct injection |
| Bore * Stroke |
90*100 |
| Displacement |
2.54L |
| 12-hour Power |
21/1500 |
| Fuel Consumption |
240 |
| Compression Ratio |
17:1 |
| Starting Mode |
Electric Starter 12V |
| Fuel Tank Capacity |
40L |
| |
|
| Alternator Model |
Original STAMFORD / PI144D |
| Rated Power |
16KW/20KVA |
| Max Power |
18KW/22KVA |
| |
|
| Excitation Mode |
brushless self-excited |
| Insulation Class |
H |
| Protection Class |
IP23 |
| Construction Type |
SAE Disc-coupling |
Description:
1. Engine: Cummins diesel engine
2. Alternator: Stamford / Mecc Alte / Chinese brand engine
3. Controller: UK Deepsea / Smartgen / ComAp / Harseen
4. Options: remote controller, synchronizing.
5. ATS is optional: Aiskai / Socommec / ABB and so on brand
6. Type: Silent type, weather proof, Trailer type
7. Color: Any color
8. Support OEM
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. Competitive price
2. Good quality engine and alternator
3. Fast delivery. engine in stock
4. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
5. Use high standard of sponge to make soundproof.
6. The canopy design is user friendly, and easy for maintenance.
7. Pre and after sales service is provided.
8. 365 days, 24 hours after sale service
