Electric Strating Silent Diesel Generator Set AC 3 Phase Prime Power 100 Kw

Place of Origin CHINA
Brand Name POWERFRIEND
Certification CE/SONCAP/SASO
Model Number PF
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plywood case
Delivery Time 30 days
Payment Terms L/C, T/T
Supply Ability 300 sets

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Silent Engine IVECO
Warranty 12 Months/1000 Hours Starting Method 12V Electrical Strating
Noise Level(7m) 72dBA Power Factor 0.8
Phase 3 Phase Cooling System Water Cooled
Alternator Stamford Type Control Panel Smartgen
High Light

power generating set

,

silent diesel generators

Leave a Message
Product Description

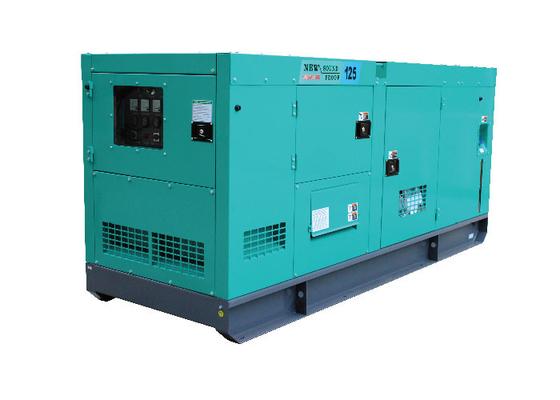

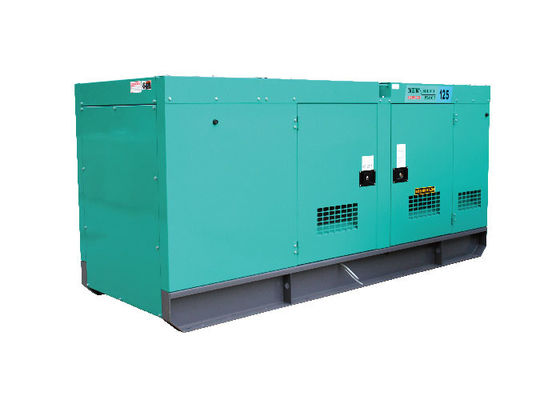

Electric Strating Silent Diesel Generator Set AC 3 Phase Prime Power 100 Kw



Technical specification
Genset Model PF-IV138S
Prime Power 100KW/125KVA
Standby Power 110KW/138KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 180.4A
Genset Structure SILENT
Dimension 3400×1120×1785mm
Net Weight 2900KG
Noise level 72 dba @ 7 meters
Engine Model FPT IVECO/NEF67SM1
Engine Features 4-cylinder,4 stroke,Turbocharged
Bore * Stroke 104mm × 132mm
Displacement 6.7L
12-hour Power(kw) 110KW/1500
Fuel Consumption L/H 29.3L/H
Compression Ratio 17.5:1
Governor type Mechnical
Alternator Model MECC ALTE/ECP34-1L/4
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler Panel Deepsea/ ComAp/ Smartgen



Electric Strating Silent Diesel Generator Set AC 3 Phase Prime Power 100 Kw 0


Packaging & Shipping

Delivery Time: 30 days after deposite

Package: nude packing or plywooden case

high quality diesel genset with 20-150kva engine series power.jpg


Trade shows

Our company has participated in several exhibitions, such as Canton Fair(Guangzhou) and many foreign trade shows.

trade show 2.jpg



Our services
  • After-sales:

Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours.

  • Guarantee:

Warraty period is one year or 1000 hours (depends on which occurs first ). If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.

  • Free training:

We can professionally arrange experienced engineers to provide users with free training in our factory . Certainly , we also provide the paid training of customers’ site.



Company advantages
  • We are a powerful and unity sales team:

we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

  • We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
  • We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
  • With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
FAQ

Q1: What is your warranty period?

A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).



Q2: Does your generator have global warranty?

A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.



Q3: What is your payment terms?

A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.

L/C Irrevocable L/C at sight.



Q4: What is your delivery time?

A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.



Q5: Can the generators be customized?

A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.



Q6: Can you use our logo?

A6: Yes. For mass orders, we can use customer's logo instead of ours.
