45 Kva Silent Power Generator Electric Stock Diesel Genset With 4 Cylinders

1 set
MOQ
Negotiation
Price
45 Kva Silent Power Generator Electric Stock Diesel Genset With 4 Cylinders
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 45KVA/50KVA
Current: 68A
Voltage: 220/380V
Engine: IVECO(Italy) / NEF45Am1A
Controller: Smartgen
MCCB: Delixi /ABB
Sound Level/db: 72dB 7 Meter
Warranty: 1 Year Or 1000 Hours
Alternator: Original Stamford
Dimension (L×W×H): 2400*950*1200mm
High Light:

power generating set

,

silent diesel generators

Basic Infomation
Place of Origin: WUXI,China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP45FPS
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 25 days
Supply Ability: 500 sets / Month
Product Description

Factory price 45kva power electric silent stock generator with 4 Cylinders
SPECIFICATION:

45KVA Silent type generator set specification:


1.1Set ModelGP45FPS
1.2Prime at 60HZ, 40℃ ambient36KW  45KVA
1.3Standby at 60HZ, 40℃ ambient40KW   50KVA
1.4Rated Gen-set output220/380V  60Hz
1.5Rated Relative humidity≤ 60 %
1.6Dimension (L×W×H)2400*950*1200mm
1.7Weight1800kg
1.8Fuel consumption 100% prime load10.2L/h
1.9Total heat radiated to ambient26KW
1.10Noise Level at 7m (Normal/Super)72dB
1.11Structure of Gen-setThe Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12Control system (Optional)Basic control panel or Advanced control panel  with automatically  start-up function and other function.



45kva IVECO engine specification:


2. SPECIFICATIONS OF ENGINE
2.1Engine BrandOriginal Italy IVECO
2.2Engine ModelNEF45Am1A
2.3Governor/ClassElectrical
2.4Cylinder NO.4
2.5Engine buildLine
2.6Fuel spray patternPT direct injection
2.7start-up method24V, electric
2.8AspirationTurbocharged/Charged air cooled
2.9Cooling modeRadiator cooled (enclose water)
2.10Bore and stroke104×132 mm
2.11Compression ratio16.5:1
2.12Displacement4.5 L
2.13Engine Prime Power at 1800rpm45KWm
2.14Engine Standby Power at 1800rpm50KWm
2.15Battery capacity120A/hr
2.16Starting/Min temperature4℃
2.17Lubrication oil capacity16L
2.18Coolant  capacity  -  radiator  and engine (40℃)28L
2.19Exhaust temp - full load prime518℃
2.20Exhaust gas flow - full load prime1500m 3/h
2.21Exhaust gas back pressure max75mmHg
2.22Air flow - radiator (40℃  ambient)3.5 m  3/s
2.23Pusher fan head (duct allowance) 40℃13mmH 2O
2.24Air   intake   -   engine-   full   load prime498m 3/h
2.25Standard Air intake temp25℃
2.26Fuel type#0 Diesel (Natural temperature)
2.27Filter systemAdopt  whole  changeable  lubricating  oil, fuel    filter and air filter
2.28Exhaust systemAdopt  industrial  high  efficiency  muffler and ripple pipe


Description:


100% load L/h11.3L Fuel consumption
80% load L/h9.2L Fuel consumption
50% load L/h6.4L Fuel consumption




1. Original Euro italy engine

2. Alternator: Italy Mecc alte / Stamford

3. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing.

4. ATS cabinet

5. Type: Silent type, weather proof, Trailer type

Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:


1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Original EURO ITALY engine , good quality , good price.

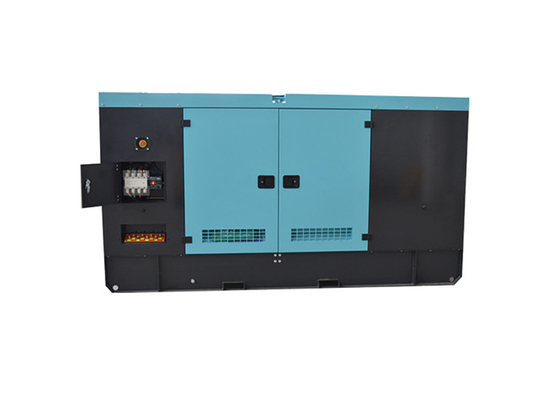

45 Kva Silent Power Generator Electric Stock Diesel Genset With 4 Cylinders 0

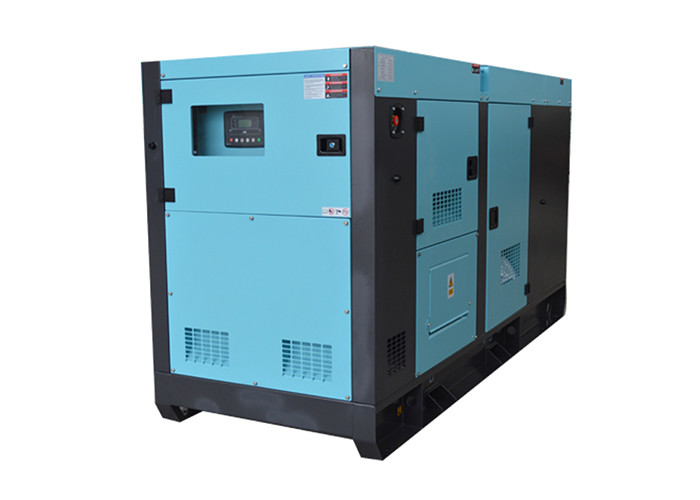

45 Kva Silent Power Generator Electric Stock Diesel Genset With 4 Cylinders 1


There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.

ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card

Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump

Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers

Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours

If have any questions, please contact us. Your inquiry would be appreciated.

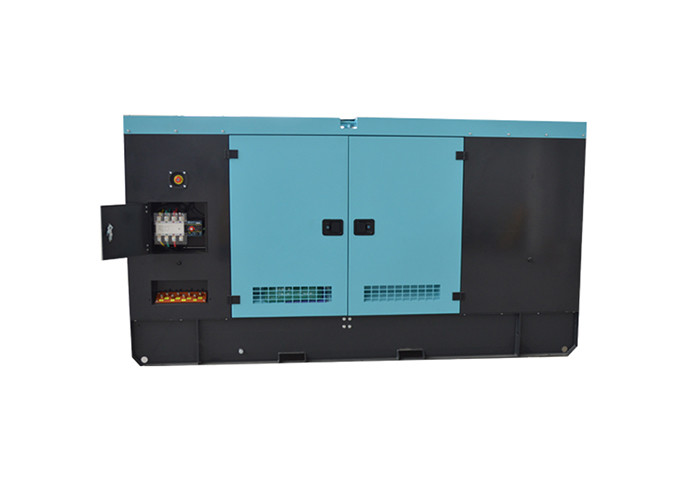

45 Kva Silent Power Generator Electric Stock Diesel Genset With 4 Cylinders 2
