50Hz 380V Silent Diesel Generator 32kw 40kva Cummins Generator With Fuel Tank

1 set
MOQ
Negotiation
Price
50Hz 380V Silent Diesel Generator 32kw 40kva Cummins Generator With Fuel Tank
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 32kw/35KW
Frequency: 50HZ / 60HZ
Current: 60.8A
Voltage: 220/380V
Engine: Cummins / 4BT3.9-G1
Controller: Smartgen / DeepSea
MCCB: Delixi /ABB
Sound Level/db: 72dB 7 Meter
Warranty: 12 Months Or 1000 Hours
Alternator: Stamford Type
High Light:

power generating set

,

silent diesel generators

Basic Infomation
Place of Origin: WUXI,CHINA
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP44DCS
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 25 days
Supply Ability: 500 sets / Month
Product Description

50Hz 380V silent diesel generator 32kw 40kva cummins generator with Fuel tank


40KVA Cummins silent type generator SPECIFICATION:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP44DCS
1.2 Prime at 50HZ, 40℃ ambient 32KW 40KVA
1.3 Standby at 50HZ, 40℃ ambient 35KW 44KVA
1.4 Rated Gen-set output 230/400V 220V/380V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 2350×1050×1650mm
1.7 Weight 1456kg
1.8 Fuel consumption 100% prime load 9.3L/h
1.9 Total heat radiated to ambient 12KW
1.10 Noise Level at 7m (Normal/Super) 68/60dB
1.11 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model 4BT3.9-G1
2.3 Governor/Class Mechnical
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 102×120 mm
2.11 Compression ratio 16.5:1
2.12 Displacement 3.9 L
2.13 Engine Prime Power at 1500rpm 36KWm
2.14 Engine Standby Power at 1500rpm 40KWm
2.15 Battery capacity 100A/hr
2.16 Starting/Min temperature 4℃
2.17 Lubrication oil capacity 9.0L
2.18 Coolant capacity - radiator and engine (40℃) 28L
2.19 Exhaust temp - full load prime 488℃
2.20 Exhaust gas flow - full load prime 906m 3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃ ambient) 2.1 m 3/s
2.23 Pusher fan head (duct allowance) 40℃ 10mmH 2O
2.24 Air intake - engine- full load prime 248m 3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.28 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model G184J
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 54.1A
3.12 Efficiency 0.866
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 216kg

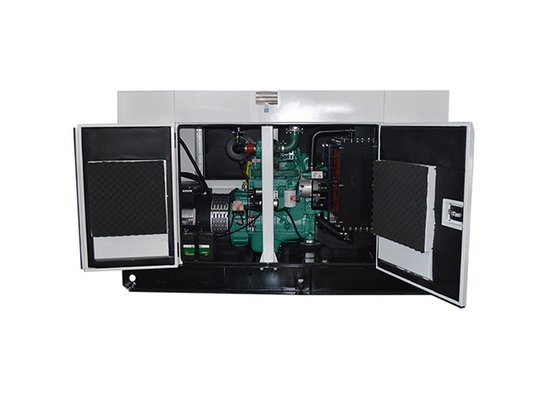

50Hz 380V Silent Diesel Generator 32kw 40kva Cummins Generator With Fuel Tank 0

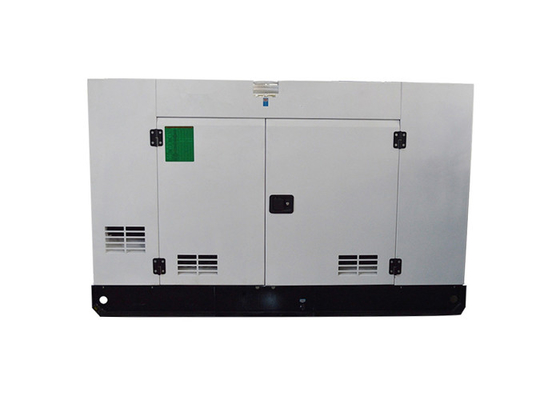

50Hz 380V Silent Diesel Generator 32kw 40kva Cummins Generator With Fuel Tank 1



Description:


1. Original Cummins engine

2. Alternator: Italy Mecc alte / Stamford

3. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing.

4. ATS cabinet

5. Type: Silent type, weather proof, Trailer type

Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:


1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Original Cummins engine , good quality , good price.

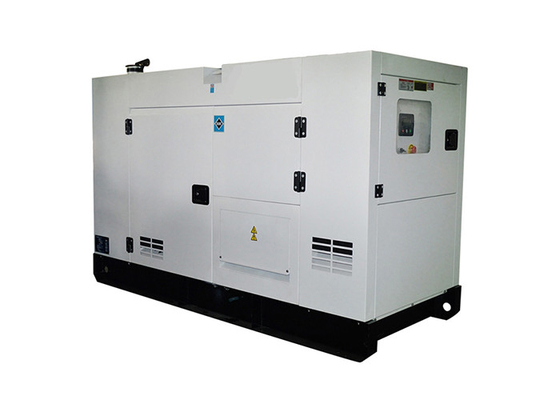

50Hz 380V Silent Diesel Generator 32kw 40kva Cummins Generator With Fuel Tank 2



There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.



ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.



Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card



Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump

Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers

Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
