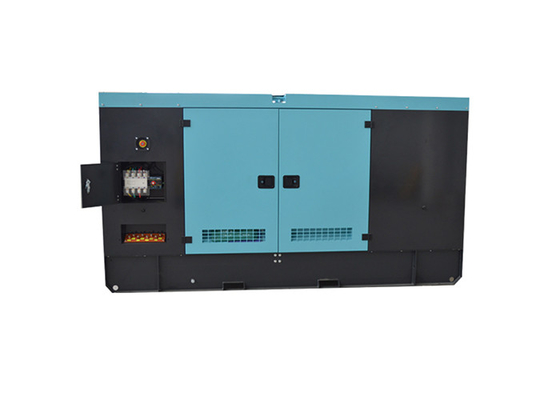

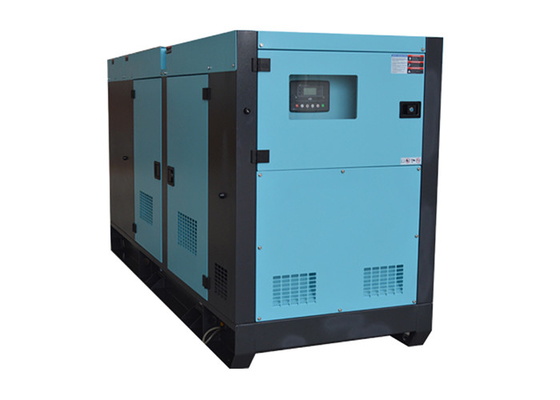

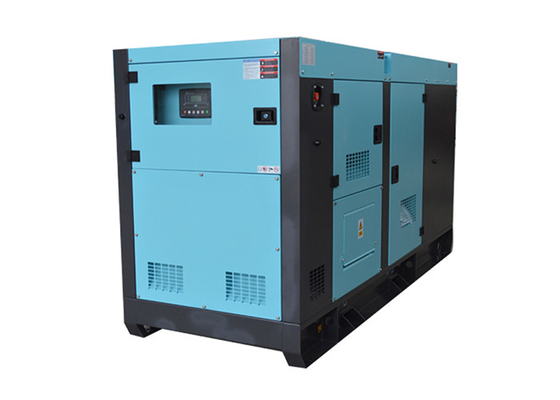

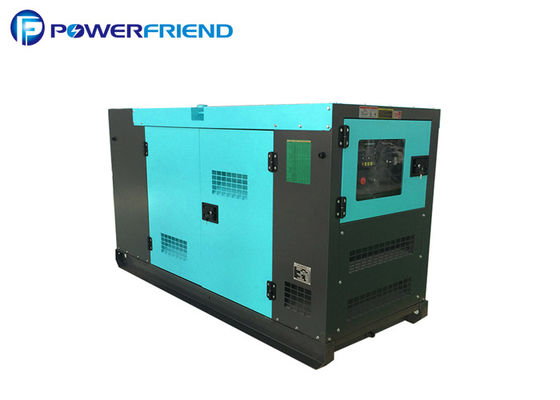

45kva 36kw Elecltric Diesel Power Generator With FPT Engine , 3 Phase Diesel Generator

Place of Origin Wuxi,Jiangsu Province,China
Brand Name POWERFRIEND
Certification CE
Model Number PF-IV50S
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Plywood case
Delivery Time Within 20 days
Payment Terms L/C, T/T
Supply Ability 300Sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type With Silent Shell Frequency 50Hz/60Hz
Engine IVECO Alternator STAMFORD TYPE/Chinese Alternator
Control Panel Smartgen 6110 Voltage 220/380v,230/400V
Current 68.3A Phase 3 Phase
RPM 1500/1800 Prime Power 45kva
High Light

industrial diesel generators

,

diesel genset

Leave a Message
Product Description





Factory supply 45kva 36kw elecltric Diesel power generator with FPT engine



Technical specification
Genset Model PF-IV50S
Prime Power 36KW/45KVA
Standby Power 40KW/50KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 72.2A
Genset Structure SILENT
Dimension 2300×950×1260mm
Net Weight 1150KG
Noise level 70 dba @ 7 meters
Engine Model FPT IVECO/NEF45SAM1A
Engine Features 4-cylinder,4 stroke,natural aspirated
Bore * Stroke 104mm × 132mm
Displacement 4.5L
12-hour Power(kw) 41.5KW/1500
Fuel Consumption L/H 11.3L/H
Compression Ratio 17.5:1
Governor type Mechnical
Alternator Model MECC ALTE/ECO32-1L/4
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler Panel Deepsea/ ComAp/ Smartgen



45kva 36kw Elecltric Diesel Power Generator With FPT Engine , 3 Phase Diesel Generator 0







Promise:

carry the principal of satisfying the needs of consumers , long term the pure spare parts technical advice supervising installment and Commissioning transport gensets and training operator. After receive the feedback of quality problem, answer the consumer and supply problem solve program in 24 hours. Do our best to supply satisfied service.
System:
I Service before sale
Sales Engineer supply technical advice and auxiliary supervising, such as, choosing type auxiliary generator room design solve the problem come across when use the equipment.


II Service during sale
Supply customer production infomation and arrange shippment for customer.
III Service after sale
1 Supply Engine room design free of Charge
2 Supply installment and Commissioning Guide free of Charge
3 Train the operator and maintain persons free of charge;
4 Perform files for the consumer, in hot persuit of service regular inspection lifelong service.
5 supply the pure spare parts year in market price,
6 Supply technology assistance for your whole life.

Guarantee:
1 Guarantee Period: One years after the date of shipment from the manufacturer's plant or 1000 hours from the manufactured date,which comes first.
2 Repair or Replacement: PowerFriend Warrants to bear any repair or replacement charge under terms of warranty with the defects in design, material and workmanship.
3 Warranty limitation:

1) misuse& Lack of proper maintenance,

2) Not perform operation manual,

3) Generator modified without our Approval or Direction,

4) non-use Genuine parts,

5) Wearing Parts( Engine air filter & Oil filter )


FAQ

Q1: What is your warranty period?

A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).



Q2: Does your generator have global warranty?

A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.



Q3: What is your payment terms?

A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.

L/C Irrevocable L/C at sight.



Q4: What is your delivery time?

A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.



Q5: Can the generators be customized?

A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.



Q6: Can you use our logo?

A6: Yes. For mass orders, we can use customer's logo instead of ours.
