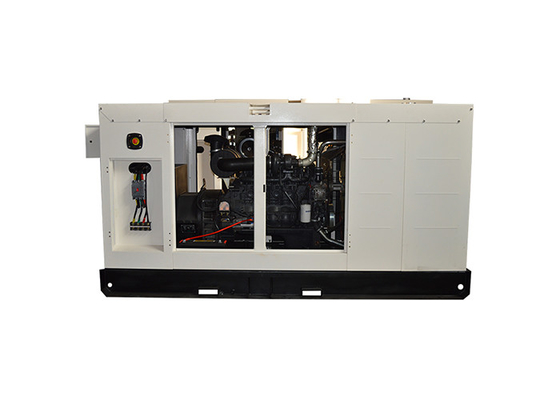

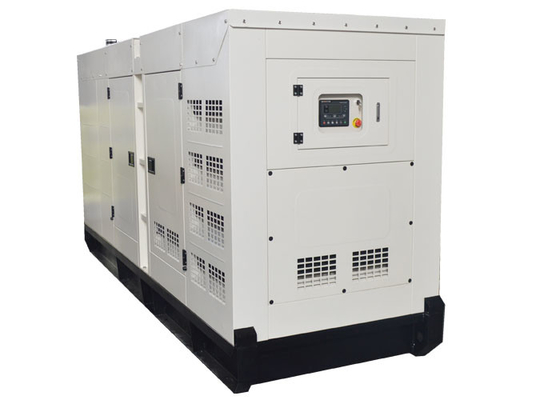

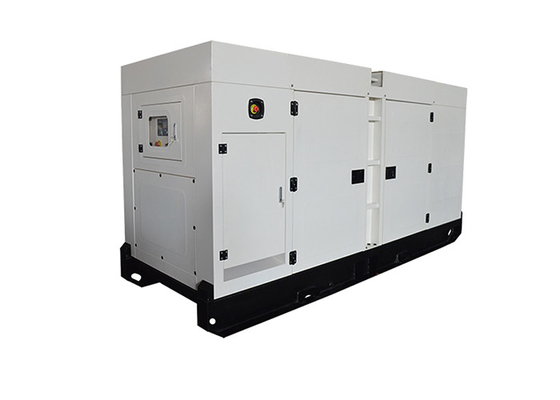

150kva Diesel Electric Silent Generator Set 120kw To 600kw Doosan Canopy Type Generator
Genset Model | GP165DS |
Prime Power | 120KW / 150KVA |
Standby Power | 132KW / 165KVA |
Phase Number | 3 |
Power Factor | 0.8 |
Rated Voltage | 230/400V |
Frequency | 50 HZ |
Rated Current | 216A |
Genset Structure | SILENT |
Noise Level | 68 dBA@7m |
Dimension | 3200X1120X1580MM |
Net Weight | 1000KG |
Engine Model | Doosan / DP086TA |
Engine Features | 6-cylinders,Turbo 4 stroke,water cooled, direct injection |
Bore * Stroke | 140*152 |
Displacement | 14L |
12-hour Power(kw) | 120kw/1500 |
Fuel Consumption | 36L |
Compression Ratio | 17.5:1 |
Starting Mode | Electric Starter 24V |
Fuel Tank Capacity | 120L |
Alternator Model | STAMFORD /UCDI274F |
Rated Power | 120KW / 150KVA |
Excitation Mode | brushless self-excited |
Insulation Class | H |
Protection Class | IP23 |
Construction Type | SAE Disc-coupling |
Controler panel | Deepsea/Smartgen |
Smartgen 6120 | 6120 Series generator controller integrating digital, intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming. The controller uses LCD display. |
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
