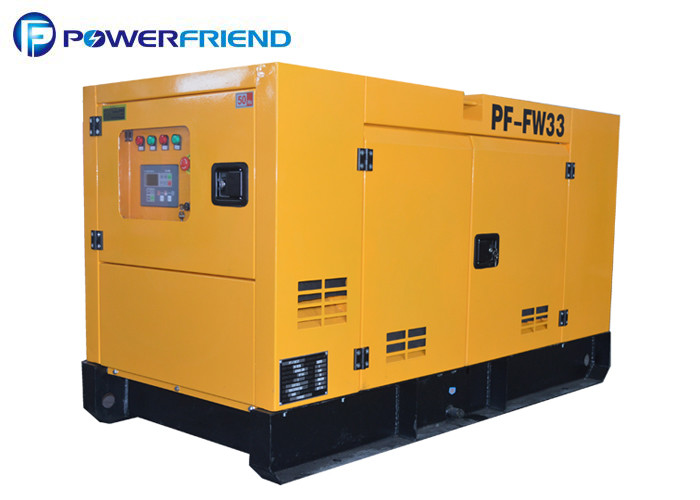

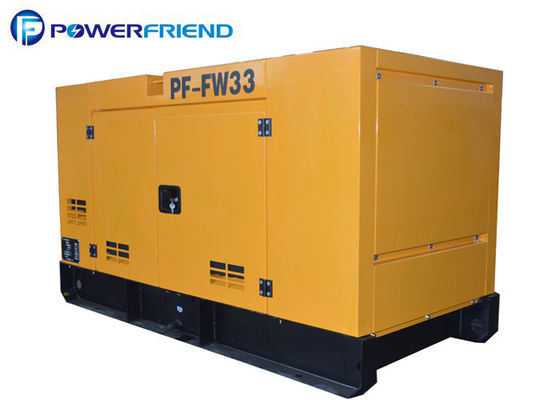

6 Cylinder 140kw 175kva 3 Phase Soundproof Diesel Ac Generator With Ats

1 set
MOQ
TBD
Price
6 Cylinder 140kw 175kva 3 Phase Soundproof Diesel Ac Generator With Ats
Features Gallery Product Description Request A Quote
Features
Specifications
Model: GP193YCS
Certificate: CE/ISO9001
Power Factor: 0.8
Starting Method: Mechanical Or Electronic
Color: Depend
Warranty: 1 Year/1000 Hours
Running Voltagre(V): 25-30
Construction Type: SAE Disc-coupling
Protection Class: IP23
Displacement: 7.3L
Engine Model: YC6A230L-D20
Alternator Model: UP274H
High Light:

industrial diesel generators

,

diesel genset

Basic Infomation
Place of Origin: WUXI, CHINA
Brand Name: GPRO
Certification: ISO9001/ CE /
Model Number: GP193YCS
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 25 work days
Supply Ability: 250 sets / Month
Product Description

6 Cylinder 140kw 175kva 3 Phase Soundproof Diesel Ac Generator With Ats



Product Description



1. Engine low fuel consumption.

2. All orignal engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.



Genset Model GP193YCS
Prime Power 140KW/175KVA
Standby Power 154KW/193KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 253A
Genset Structure SILENT
Dimension 3400×1120×1785mm
Net Weight 2080KG
Engine Model YC6A230L-D20
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 108mm × 132mm
Displacement 7.3L
12-hour Power(kw) 155KW/1500
Fuel Consumption L/H 38.5L/H
Compression Ratio 17.5:1
Alternator Model UP274H
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Smartgen 6120 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



6 Cylinder 140kw 175kva 3 Phase Soundproof Diesel Ac Generator With Ats 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.

6 Cylinder 140kw 175kva 3 Phase Soundproof Diesel Ac Generator With Ats 1

Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!

 6 Cylinder 140kw 175kva 3 Phase Soundproof Diesel Ac Generator With Ats 2
