Trailer Mounted 80kw 100kva Diesel Power Generator , Silent Diesel Gensets
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Rate | 100kva | Frequency | 50HZ |
|---|---|---|---|
| Engine Model | Chinese Brand Or Famous Brand For Optional | Voltage | 230/400V |
| Alternator | Stamford/Leroy Somer/Marathon For Optional | Controller | Smartgen / DeepSea |
| MCCB | Delixi /ABB | Warranty | 1 Year Or 1000 Hours |
| Protection Class | IP23 | Displacement | 8.7L |
| Options | ATS/Fuel Tank Capacity | Noise Level | 65dBA@7m(no Load) |
| High Light | industrial diesel generators,diesel genset |
||
Product Description

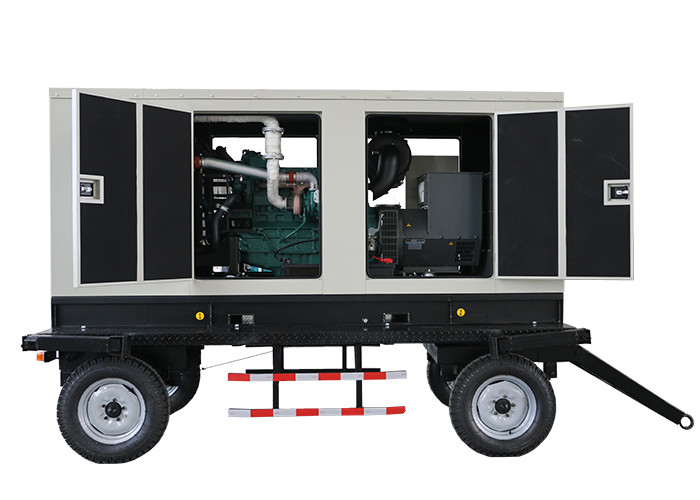

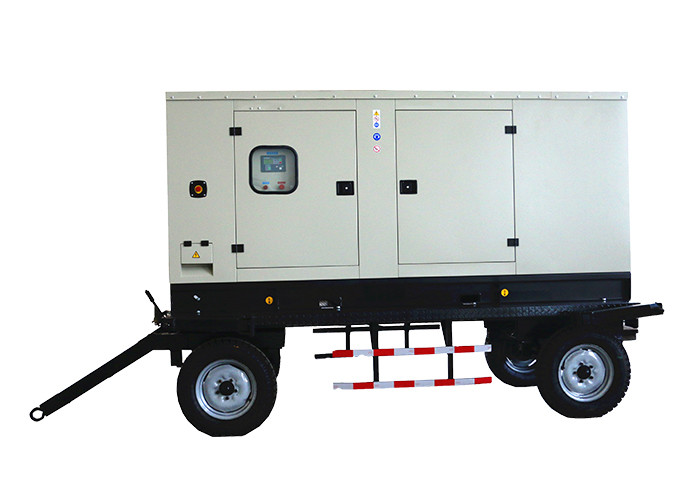

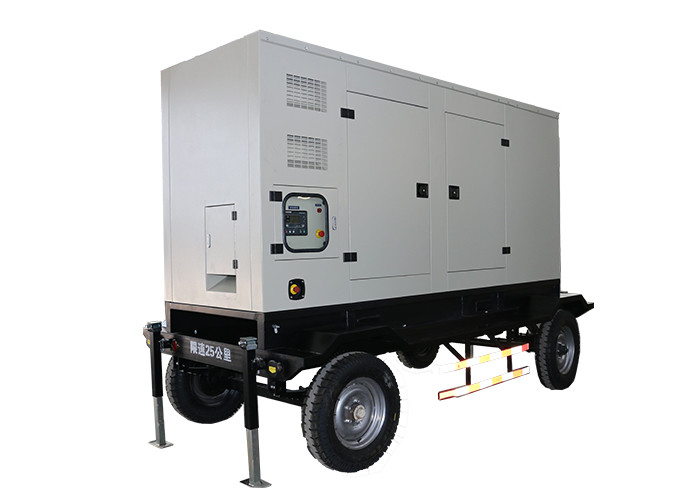

Mobile power trailer mounted 80kw 100kva diesel trailer generator
Product Description
| 1. Specification of Genset | |
| Gensets Model | PF-DC110T |
| Prime/ Standby Power | 80kw/100kva 88kw/110kva |
| Rated Voltage | 380/220V |
| Rated Frequency (HZ) | 50 |
| Rated Speed | 1500rpm |
| Power Factor | 0.8(lagging) |
| Dimensions (mm) (L×W×H) | 1710x700x1340 |
| Genset Weight (kg) | 960 |
| 2. Specification of Diesel Engine | |
| Engine Brand | Optional |
| Engine Model | / |
| Number of Cylinders | 6 |
| Cylinder Arrangement | Vertical in-line |
| Cycle | Four stroke |
| Aspiration | Turbocharged, Water cooling |
| Fuel System | PT type fuel pump, EFC |
| Bore×Stroke (mm×mm) | 159 x 159 |
| Displacement (Liter) | 50.3 |
| Compression Ratio | 13.9:1 |
| Speed Governor | Electronic |
| Cooling System | Forced Water Cooling Cycle |
| Total lubrication System Capacity (L) | 95 |
| Fuel Consumption at 100% Load (L/H) | 57 |
| Starting Method | DC24V electrical starting |
| 3. Specification of Alternator | |
| Alternator Brand | Stamford / Meccalte |
| Alternator Model | UCI 274C |
| Number of Phase | 3 |
| Connecting Type | 3 Phase and 4 Wires |
| Number of Bearing | 1 |
| Protection Grade | IP21 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
| 4. Specification of Control Panel (with Deepsea Controller) | |
| The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure, high water temperature,over speed, over load protection function. | |
| The features of Deepsea controller: | |
| Deepsea controller is a new generation automatic control module for single genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of genset for user or special assembly factory. | |
| Packaging & Shipping |
Delivery Time: 30 days after deposite
Package: nude packing or plywooden case
FAQ
| FAQ |
Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose.
Please contact us for more details.
Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
