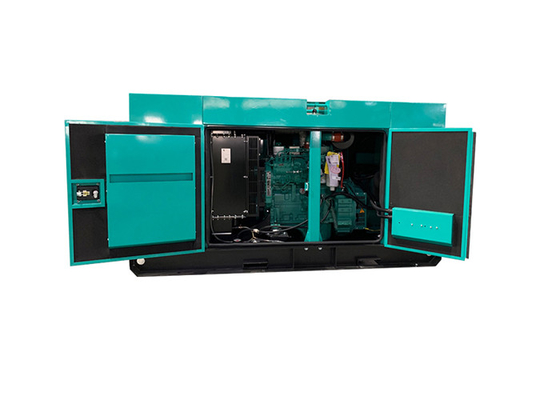

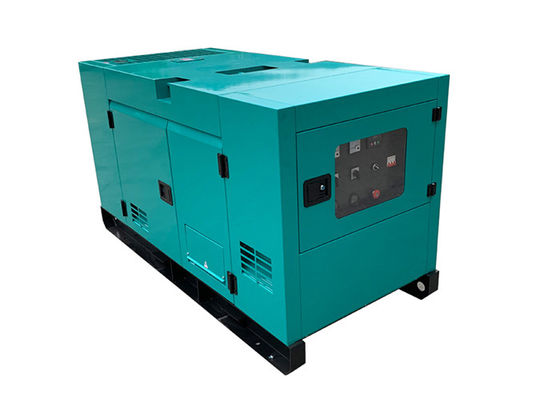

FAWDE Quiet Diesel Generator 30KW 38KVA 4 Cylinder Generator 1 Year Warranty
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Brand | FAWDE | Prime Power | 30KW 38KVA |
|---|---|---|---|
| Genset Model | PF-DC66S | Standby Power | 33KW 41KVA |
| Engine Model | 4DX21-53D | Rated Current(A) | 54.1 (A) |
| Warranty | 1 Year Or 1000 Hours | Certificates | CE, ISO9001 |
| High Light | industrial diesel generators,diesel genset |
||
Product Description
FAWDE New Design Quiet Diesel Generator 30KW 38KVA 4 Cylinder Generator
Product describition
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-FW41 |
| 1.2 | Prime at 50HZ, 40℃ ambient | 30KW 38KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 33KW 41KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | Open: 1800*800*1150, Silent: 2320*1060*1150 |
| 1.7 | Weight | Open: 800kg, Silent: 1200kg |
| 1.8 | Fuel consumption 100% prime load | 8.3L/H |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 2 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | FAWDE |
| 2.2 | Engine Model | 4DX21-53D |
| 2.3 | Governor/Class | Mechanical or Electronic |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 24V, electric |
| 2.8 | Air intake type | Turbocharged |
| 2.9 | Cooling mode | Water Cooling |
| 2.10 | Bore and stroke | 102×118 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 3.86 |
| 2.13 | Engine Prime Power at 1500rpm | 39KWm |
| 2.14 | Engine Standby Power at 1500rpm | 43KWm |
| 2.15 | Lubrication oil capacity | 12.5L |
| 2.16 | Oil consumption | 0.06 |
| 2.17 | Dry weight of base | 350Kg |
| 2.18 | Dry weight of Gen Pac | 375Kg |
| 2.19 | Overall dimension(G.P) | 1155×680×835(mm) |
| 2.2 | Overall dimension(base) | 810×680×800(mm) |
| 2.21 | 27℃ air consumption ( m³/ min) | 3.2 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR | ||
| 3.1 | Alternator Model | Stamford/PI 144J |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 54.1A |
| 3.12 | Efficiency | 86.60% |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1,NEMA1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 216kg |
Safe and reliable electricity transmission network solutions !
Why choose us:
Description:
Diesel generator is a kind of small power generation equipment. It refers to the power machinery which uses diesel oil as fuel and diesel engine as prime mover to drive the generator to generate electricity. The unit is generally composed of diesel engine, generator, control box, fuel tank, starting and control battery, protection device, emergency cabinet and other components.
1.PowerFriend is devoted to the R&D and manufacturing of diesel generator sets since 2010.
2.The marketing center is located in Wuxi Steel Union governor's buildinghas .
3.PowerFriend is maintaining long term strategic friendship cooperation with domestic and abroad famous manufactures of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroysomer, Stamford, and Marathon etc.
Package & Delivery
Package: Plastic Package.
Payment: By 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 %L/C at sight.
Delivery: 25 days after we get the down payment.
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Pre and after sales service is provided.
7. Fast response for the inquires, service, etc.
