100KVA Perkins Diesel 80KW Generator Standby Power Electric Genset

Place of Origin Jiangsu of China
Brand Name POWER FRIEND
Certification ISO,CE Certification
Model Number PF-P100
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 300 Set / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Power 80KW 100KVA Frequency 50/60HZ
Voltage 220v - 690v Optional Engine Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional
Alternator Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional Controller Deepsea, Smartgen, Harsen For Optional
MCCB ABB Or Delixi Cooling System Water Cooled
Genset Type Open Type, Silent Type, Container Type, Trailer Type For Optional ATS Optional
High Light

perkins silent diesel generator

,

water cooled generator

Leave a Message
Product Description

100KVA 80KW Perkins Diesel Generator Standby Power Electric Genset



MODEL

PF-P100

PRIME POWER (KVA/KW)

100/80

STANDBY POWER(KVA/KW)

110/88

Rated voltage(V)

400/230

Rated speed(rpm)

1500

Rated frequency(Hz)

50

Power factor

0.8

Ambient temperature(°C)

40

Altitude(m)

1000

Connection type

3 phase 4 wires

ENGINE MANUFACTURER

PERKINS

Model

1104C-44TAG2

Rated Power(kW)

99.5

No. of cylinders & configuration

4 vertical in-Line

Method of operation

4-stroke

Speed regulation

Mechanically governor

Starting system

DC 12V Electronic start

Cooling method

Closed-circuit cooling system

Total displacement(L)

4.41

Compression ratio

18.2:1

Bore×Stroke(mm)

105×127

100% Load fuel consumption(L/h)

≤22.6

ALTERNATOR MANUFACTURER

STAMFORD

Number of Phase

3

Connection Type

3Phase and 4Wires

Number of Bearing

1

Power Factor

0.8

Protection Grade

IP23

Terminal

12

Winding/ Pitch

100% Copper  2/3 Pitch

Cooling Fan

Cast alloy aluminum

Exciter Type

Brushless, Self-Exciting

Insulation Class, Temperature Rise

H/H

Telephone Influence Factor( TIF)

TIF <50 / THF<2%

Total Harmonic TGH/THC

<1.5% at no load / <5% at load

Voltage Regulation, Steady State

≤±1%

Sustained Short-Circuit Current

300%(3 in):10s

CONTROL SYSTEM

DSE SERIES



 Heavy duty world class brand  industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards

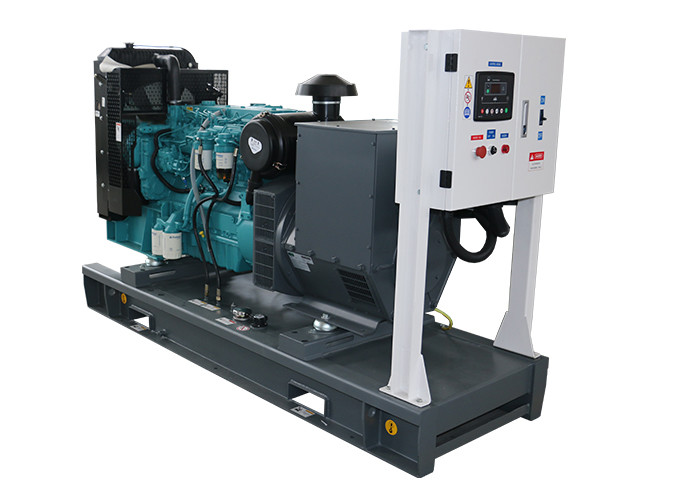

100KVA Perkins Diesel 80KW  Generator Standby Power Electric Genset 0

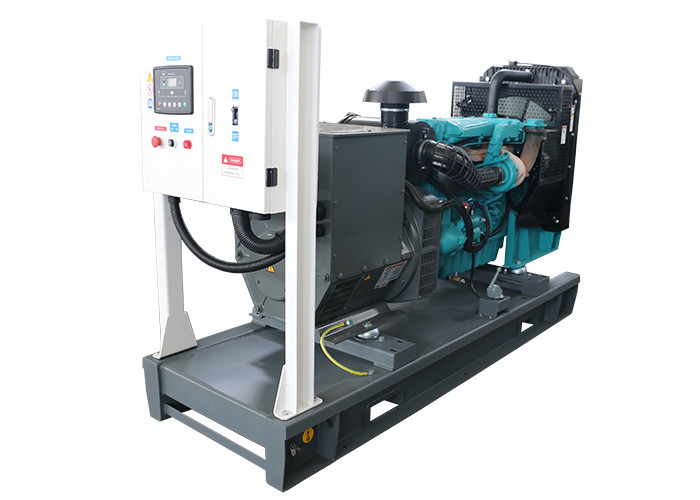

100KVA Perkins Diesel 80KW  Generator Standby Power Electric Genset 1



ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



 Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours



If have any questions, please contact us. Your inquiry would be appreciated.
