Containerized UK Perkins Diesel Generator / Genset 1000KW 1250KVA
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Power | 1000KW 1250KVA | Frequency | 50/60HZ |
|---|---|---|---|
| Voltage | 220v - 690v Optional | Engine | Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional |
| Alternator | Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional | Controller | Deepsea, Smartgen, Harsen For Optional |
| MCCB | ABB Or Delixi | Cooling System | Water Cooled |
| Genset Type | Open Type, Silent Type, Container Type, Trailer Type For Optional | ATS | Optional |
| High Light | perkins silent diesel generator,open type genset |
||
Product Description

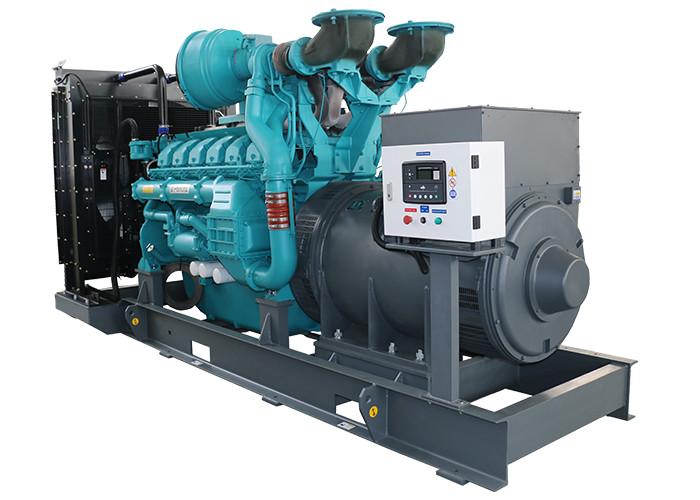

Containerized UK Perkins Diesel Generator Genset 1000KW 1250KVA
|
Generator set |
Generator Model |
PF-P1250 |
|
Rating Power (KW/KVA) |
1000/1250 |
|
|
Standby Power(KW/KVA) |
1100/1375 |
|
|
Rating Ammeter(A) |
1804 |
|
|
Diesel Engine |
Engine Model |
Perkins 4012-46TWG2A |
|
Prime Power(KW) |
1097 |
|
|
Standby Power(KW) |
1207 |
|
|
Bore X Stroke (mm) |
160X190 |
|
|
Number of Cylinder & Configuration |
12V |
|
|
Displacement(l) |
45.8 |
|
|
Compression Ratio |
13.6:1 |
|
|
Aspiration |
Turbocharged & after-cooled |
|
|
Max. intake depression(mbar) |
6 |
|
|
Combustion air Volume(m³/min) |
91 |
|
|
Max. Exhaust back Pressure(mbar) |
10 |
|
|
Exhaust Gas Flow(m³/min) |
245 |
|
|
Max. Exhaust Gas Temperature |
460 |
|
|
Cooling |
Water cooled with Radiator |
|
|
Fan cooling air flow(m³/min) |
1380 |
|
|
Total Coolant capacity(l) |
235 |
|
|
Max. temperature of coolant |
96 |
|
|
Max. permissible oil temp |
105 |
|
|
Total oil capacity(l) |
178 |
|
|
Rating Fuel Consumption(l/h) |
265 |
|
|
Governing Type |
Electrics Governor |
|
|
Alternator |
Rating Voltage(V) |
400/230 |
|
Alternator Model |
MX-1030-4 |
|
|
Rating Capacity(KW/ |
1030/1287.5 |
|
|
Eff.% |
95.2% |
|
|
Power Factor |
0.8 lagged |
|
|
Exciting type |
PMG, DVR |
|
|
Voltage regulation |
±0.25% |
|
|
No. of Phase |
3 phase 4 wire |
|
|
Enclosure Class |
IP22 |
|
|
Class of Insulation |
H |
|
|
Control Panel |
Control Module |
GCS6410 AMF Module |
|
Battery |
Rating Capacity(AH)
|
4X150AH 12V |
|
|
Generator set dimension (LXWXH) |
5200x2080x2520 mm |
|
|
Generator Weight (kg) |
10500 |
|
|
Soundproof Canopy (40HQ) |
12192X2438X2896mm |
|
|
Noise at 7m around the canopy |
73dBA |
Heavy duty world class brand industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
