Original Silent Generator Set With Cummins engine 1000kw 1250kva
SPECIFICATION:
| 1. SPECIFICATIONS OF GEN-SET |
| 1.1 |
Set Model |
GP1375CCS |
| 1.2 |
Prime at 50HZ, 40℃ ambient |
1000kW 1250KVA |
| 1.3 |
Standby at 50HZ, 40℃ ambient |
1100kW 1375KVA |
| 1.4 |
Rated Gen-set output |
220V 60Hz |
| 1.5 |
Rated Relative humidity |
≤ 60 % |
| 1.6 |
Dimension (L×W×H) Open type |
5200x2000x2400mm |
| 1.7 |
Dimension (L×W×H) Silent type |
6500x2435x2585mm |
| 1.8 |
Weight Open type |
10000kgs |
| 1.9 |
Weight Silent type |
11000kgs |
| 1.10 |
Fuel consumption 100% prime load |
231.8L/h |
| 1.11 |
Structure of Gen-set |
The Gen-set adopt integrative structure,
engine is fix on high strength steel basic frame,
anti vibration instrument between the engine and basic frame,
cooling fan have protecting cap, control cabinet
and circuit breaker installed on Gen-set.
|
| 1.12 |
Control system (Optional) |
Basic control panel or
Advanced control panel
with automatically start-up
function and other function.
|
| 2. SPECIFICATIONS OF ENGINE |
| 2.1 |
Engine Brand |
Cummins |
| 2.2 |
Engine Model |
KTA50-G3 |
| 2.3 |
Governor/Class |
Electrical |
| 2.4 |
Cylinder NO. |
16 |
| 2.5 |
Engine build |
V |
| 2.6 |
Fuel spray pattern |
Pt type fuel pump,EFC |
| 2.7 |
start-up method |
24V, electric |
| 2.8 |
Aspiration |
Turbocharged/Aftercooled |
| 2.9 |
Cooling mode |
Radiator cooled (enclose water) |
| 2.10 |
Bore and stroke |
159×159mm |
| 2.11 |
Compression ratio |
13.9:1 |
| 2.12 |
Displacement |
50.3L |
| 2.13 |
Engine Prime Power at 1500rpm |
1150KWm |
| 2.14 |
Engine Standby Power at 1500rpm |
1227KWm |
| 2.15 |
Battery Charging system |
35Ampere |
| 2.16 |
Starting/Min temperature |
7℃ |
| 2.17 |
Lubrication oil capacity |
177L |
| 2.18 |
Coolant capacity - engine (40℃) |
161L |
| 2.19 |
Theromostat |
82-93℃ |
| 2.20 |
Max water temperature |
104℃ |
| 2.21 |
Exhaust temp - full load prime |
585℃ |
| 2.22 |
Exhaust gas flow - full load prime |
4529L/s |
| 2.23 |
Exhaust gas back pressure max |
10kPa |
| 2.24 |
Intake flow |
30425 L/s |
| 2.25 |
Max intake restriction |
4529L/s |
| 2.26 |
Fuel type |
#0 Diesel (Natural temperature) |
| 2.27 |
Filter system |
Adopt whole changeable lubricating oil,
fuel filter and air filter
|
| 2.28 |
Exhaust system |
Adopt industrial high efficiency
muffler and ripple pipe
|
| 3. SPECIFICATIONS OF ALTENATOR |
| 3.1 |
Alternator Model |
STAMFORD/ LVI634G |
| 3.2 |
Alternator Type |
A.C. Synchronous |
| 3.3 |
Rated Voltage |
230/400V |
| 3.4 |
Rated Frequency |
60HZ |
| 3.5 |
Rated speed |
1800 RPM |
| 3.6 |
Voltage regulation mode |
Auto |
| 3.7 |
Alternator voltage regulation |
±0.5％ |
| 3.8 |
Exciting mode |
Brushless self exciting |
| 3.9 |
Power factor |
0.8 (lagging) |
| 3.10 |
Phase & wires |
3 phase 12 wires |
| 3.11 |
Rated currency |
1804A |
| 3.12 |
Efficiency |
0.949 |
| 3.13 |
Insulation class |
H |
| 3.14 |
Protection class |
IP23 |
| 3.15 |
Single load step to NFPA110 |
100% |
| 3.16 |
Standards |
IEC34-1 |
| 3.17 |
Max. Ambient Temperature |
40℃ |
| 3.18 |
Min. Ambient Temperature |
- 20℃ |
| 3.19 |
Max. altitude |
1000m |
| 3.20 |
Weight |
2658kg |
Description:
1. Original Cummins engine
2. Alternator: Original Stamford
3. Controller: Deepsea 6220/7320
4. Options: remote controller, synchronizing.
5. ATS is optional
6. Type: Soundproof type, weather proof, Trailer type
7. Color: Any color
8. Support OEM
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. Low fuel consumption
2. Good quality engine and alternator
3. Fast delivery. Big quantity of Engines in stock.
4. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
5. Use high standard of sponge to make soundproof.
6. The canopy design is user friendly, and easy for maintenance.
7. Pre and after sales service is provided.
8. 365 days, 24 hours after sale service

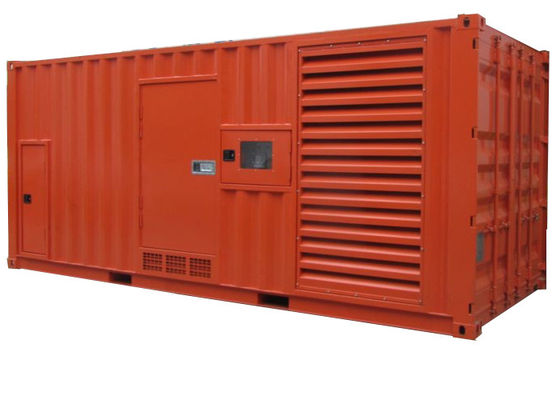

1250kva 1000kw original Cummins silent type photos:
