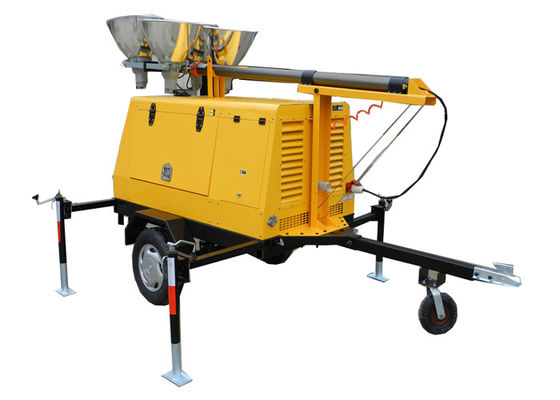

Single Phase Mobile Light Tower / generator light tower 3000rpm / 3600 rpm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Light Type | 4X1000W Metal Halide | Engine Type | Diesel Power , 186FA Air Cooled , |
|---|---|---|---|
| Frequency | 50/60HZ | Current | 10A |
| Voltage | 220/230/240v | Phase | Single Phase |
| Alternator | 100% Copper | Height Of Mast | 6.7 Meters |
| Fuel Consumption | 270g/Kw.h | Warranty | 1 Year Or 1000 Hours |
| Engine Speed | 3000rpm / 3600 Rpm | ||
| High Light | portable light towers,generator light tower |
||
Product Description
Single Phase Mobile Light Tower / generator light tower 3000rpm / 3600 rpm
SPECIFICATION:
|
Tower Light |
|
|
|
Height of Mast |
6.7M |
|
|
Power of Lamps |
4*1000W Metal Halide, Round |
|
|
Luminous Flux |
440000lm |
|
|
Elevation of Mast |
Manual/pneumatic mast |
|
|
Raising of Mast |
Manual/pneumatic mast |
|
|
Rotation of Mast |
360°, Manual |
|
|
Windproof Ability |
< 10M/S |
|
|
Inclination |
<10 degree |
|
|
Lampholder |
E40 |
|
|
Alternator |
|
|
|
Alternator Type |
Brush, with AVR |
|
|
AC Frequency |
50Hz |
|
|
Cont.AC Power |
4.5 kVA |
|
|
Max.AC Power |
5.0 kVA |
|
|
AC Voltage |
220, 110/220, 115/230, 120/240V etc. |
|
|
Phase Number |
Single Phase |
|
|
Power Factor |
1 |
|
|
Insulation Class |
F |
|
|
Engine |
|
|
|
Engine Type |
Air-cooled, 4-stroke, Diesel, 1-Cylinder |
|
|
Engine Model |
Chinese engine RD186FAE |
|
|
Max. Power |
10hp |
|
|
Displacement |
418cc |
|
|
Engine Speed |
3000rpm |
3600rpm |
|
Fuel Capacity |
33.5L (top tank) |
|
|
Oil Capacity |
1.65L |
|
|
Fuel Consumption |
270 g/kw.h |
|
|
Full Tank Operating |
50hr(4*400W), 25hr(4*1000W) |
|
|
Fuel Model |
0#(Summer),-10#(Winter) |
|
|
Lube Model |
SAE 10W 30(Above CC Grade) |
|
|
Start System |
Electric |
|
|
Noise at 7M |
70 db(A) |
|
|
Trailer |
|
|
|
Towing |
Ring or Ball Hitch |
|
|
Tyre Diameter |
500MM |
|
|
Stablizing Legs |
4 pcs, Manual |
|
|
Suspension System |
Leaf Spring Axle |
|
Description:
Net weight : 375kg
Gross Weight: 435kgs
Packing size: 2340x1120x1100mm
20 GP loading Quantity 10 units (14 for bulk packing)
40 HQ loading Quantity 20 units (28 for bulk packing)
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Football field , basket ball field, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Use 100% copper alternator
2. 24 hours/7 days after sale service
3. Short delivery time
4. Produce engines / canopy and assemble by ourselves.
5. Stable quality warranty
