Trailer Mobile Light Tower with metal halide 4000w lights Single Phase
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Light Type | 4X1000W Metal Halide | Engine Type | Diesel Power , 186FA Air Cooled |
|---|---|---|---|
| Frequency | 50/60HZ | Current | 10A |
| Voltage | 220/230/240v | Phase | Single Phase |
| Alternator | 100% Copper | Height Of Mast | 6.7 Meters |
| Fuel Consumption | 270g/Kw.h | Warranty | 1 Year Or 1000 Hours |
| High Light | mobile lighting tower,portable light towers |
||
Product Description
Trailer Mobile Light Tower with metal halide 4000w lights Single Phase
We produce the 186FA engines / alternators by ourself.
We also can produce bigger power mobile light tower generator.
SPECIFICATION:
| Model | B-5000 | B-5000-1 | ||
| Length(mm) | 2180 | |||
| width(mm) | 1130 | |||
| height(mm) | 2700(2300,Detached a pair of the top lights) | |||
| Height(Mast fully extended,m) | 7 | |||
| Weight(Dry,kg) | 480 | 550 | ||
| Frequency(Hz) | 50 | 60 | 50 | 60 |
| Speed(rpm) | 1500 | 1800 | 1500 | 1800 |
| Continued power(KVA) | 2.7 | 3.2 | 4.8 | 5 |
| Number of cylinders | 1 | |||
| Diesel engine characteristics or Specs | 4 cycles, in line,Air cooled diesel | |||
| Engine aspiration | Naturally aspirated | |||
| Alternator | Brushless & single phase | |||
| Fuel tank type | Single deck tank | |||
| Fuel tank capacity | 38 liters(10US gallons) | |||
| Operating hours(Fuel Tank) | 63 hours | 25 hours | ||
| Type of lights | Metal halide floodlight | |||
| Round(E40/E39) | Rectangle(E40/E39,Gewiss) | |||
| Number & power of lights | 4*400W | 4*1000W | ||
| Mast lifting & extension | Manual | |||
| Number of mast sections | 5 | |||
| Mast erection time | N.A. | |||
| Mast rotation | 330° Manual | |||
| Light bar tilt | Manual | |||
| Control system | Key start | |||
| Stabilizing legs | Manual | |||
| Trailer suspension & braking system | Hexagonal rubber axle without brake | |||
| Hitch & tow bar | Ball or O ring | |||
| Tire & rim size | 13” | |||
| Output sockets | 1 Piece(230V,10A) | |||
| Acoustic pressure | 78dB(A) at 7 meter away | |||
| Max. load quantity in a 40' container(sets) | 20 | 16 | ||
Description:
Engine: Air cooled 186FA diesel engine
Alternator: 100% cooper
Packing size: 2340x1120x1100mm
20 GP loading Quantity 20 units
40 HQ loading Quantity 40 units
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Football field , basket ball field, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Use 100% copper alternator
2. 24 hours/7 days after sale service
3. Short delivery time
4. Produce engines / canopy and assemble by ourselves.
5. Stable quality warranty

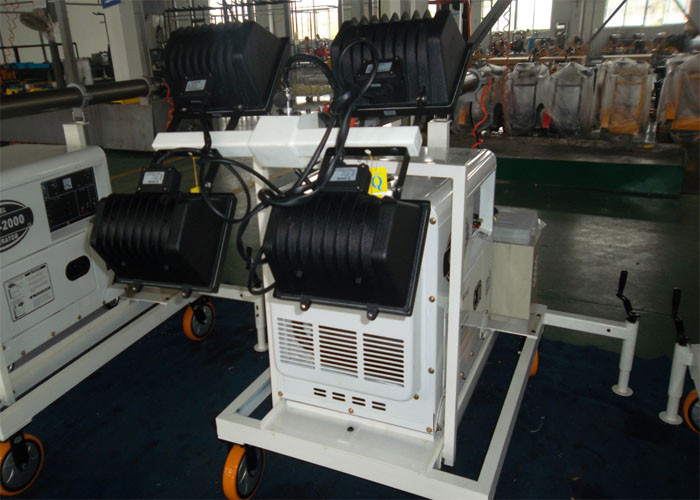

Mass products photos:
