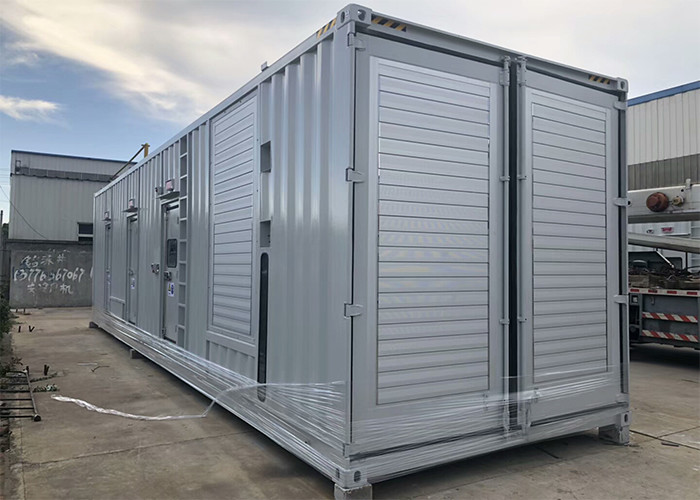

1500kva Silent industrial diesel generators by Cummins Engine 40HQ Containerized Genset
|
Genset |
Power Capacity |
Prime Power |
1500kva / 1200kw |
|
Standby Power |
1650kva / 1320kw |
||
|
Rated Voltage |
Volt |
400/230V |
|
|
Rated Current |
Amp |
1899 |
|
|
Rated Frequency |
Hz |
50 |
|
|
Rated Speed |
RPM |
1500 |
|
|
Power Factor / Phase |
Cos 0.8 Lagging / 3 phase |
||
|
Cooling System |
Closed cycle water-cooled with fan, water tank |
||
|
Overall Dimension |
(L×W×H) mm |
5050*2050*2450 | |
|
Gross Weight |
KG |
8500 |
|
|
Overall Dimension (soundproof) |
(L×W×H) mm |
40HQ | |
|
Gross Weight |
KG |
- |
|
|
Diesel |
Engine Brand |
Cummins |
|
|
Engine Model No. |
KTA50-G3 |
||
|
Rated Power |
kW |
1000 |
|
|
Engine Structure |
12 cylinders vertical in-line, 4 stroke,Turbocharged, |
||
|
Speed Governor |
Electronic |
||
|
Compression Ratio |
15.1:1 |
||
|
Displacement |
litre |
4.75 |
|
|
Lube Capacity |
litre |
- |
|
|
Fuel System |
PT type fuel injection pump |
||
|
Fuel Consumption |
L/H |
258.6 |
|
|
Lube Consumption |
g/kw.h |
0.5% |
|
|
Rotating Speed |
RPM |
1500 |
|
|
Starting Mode |
By 24V batteries |
||
|
Alternator |
Alternator Brand |
Stamford |
|
|
Alternator Model |
PI 634G |
||
|
Features |
Brushless, self-excitation, AVR regulation, |
||
|
Insulation Class |
Class H |
||
|
Steady Voltage Regulation |
≤±1% |
||
|
Instant Voltage Ragulation |
-15%~+20% |
||
|
Voltage Regulation Scope |
>10% |
||
|
Power Factor |
0.8 Lagging |
||
|
Connection Type |
3 phase 4 wire, Y type |
||
|
Controller |
Model No. |
Smartgen |
|
Cummins / Stamford Genset Features:
1. Engine: Cummins industrial diesel engine
2. Heat Dissipation: Radiator 40°C max, fans are driven by belt, with safe guard
3. Protective Operation: Choice of manual/auto and AMF control panels and protection systems
4. Control Panel: Digital auto-start LED panel
5. Shakeproof: Anti Vibration Suspension Absorber
6. Safe Filter: Dry type air filter, fuel filter, oil filter
7. Breaker: Mould case circuit breaker
8. Power: 24V DC start motor and storage battery
9. Nozzle: Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running
automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional.
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
