Rated Power 30kva Perkins Diesel Generator Original UK Motor Denyo Type Canopy
| 1. SPECIFICATIONS OF GEN-SET |
| 1.1 |
Set Model |
GP33PS |
| 1.2 |
Prime at 50HZ, 40℃ ambient |
24KW 30KVA |
| 1.3 |
Standby at 50HZ, 40℃ ambient |
26KW 33KVA |
| 1.4 |
Rated Gen-set output |
230/400V 50Hz |
| 1.5 |
Rated Relative humidity |
≤ 60 % |
| 1.6 |
Dimension (L×W×H) |
2600×1050×1400mm |
| 1.7 |
Weight |
1400kg |
| 1.8 |
Fuel consumption
100% prime load
|
7,8L/H |
| 1.9 |
Noise Level at 7
(Normal/Super)
|
75/65dB |
| 1.10 |
Structure of Gen-set |
The Gen-set adopt
integrative structure,
engine is fix on high strength
steel basic frame, anti vibration
instrument between the engine
and basic frame, cooling fan
have protecting cap, control
cabinet and circuit breaker
installed on Gen-set
|
| 1.11 |

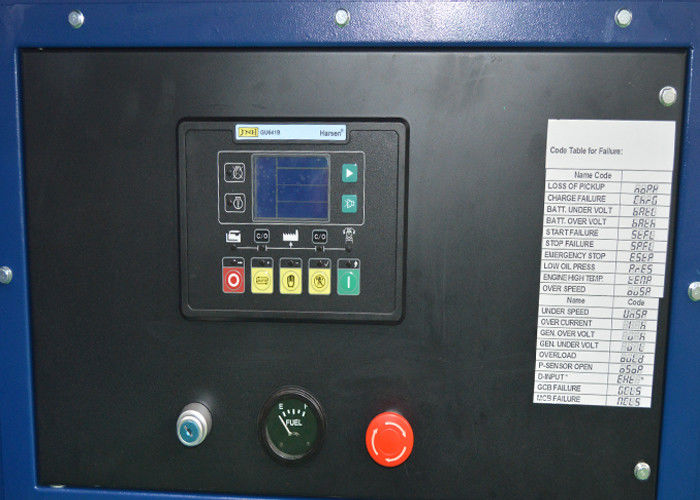

Control system (Optional) |
Basic control panel or Advanced
control panel with
automatically start-up function
and other function
|
| 2. SPECIFICATIONS OF ENGINE |
| 2.1 |
Engine Brand |
Perkins |
| 2.2 |
Engine Model |
1103A-33G |
| 2.3 |
Governor/Class |
Mechanical |
| 2.4 |
Cylinder NO. |
3 |
| 2.5 |
Engine build |
Vertical in-line |
| 2.6 |
Fuel spray pattern |
direct injection |
| 2.7 |
Aspiration |
Naturally |
| 2.8 |
Cooling mode |
Radiator cooled
(enclose water)
|
| 2.9 |
Bore and stroke |
105×127mm |
| 2.10 |
Compression ratio |
19.25 : 1 |
| 2.11 |
Displacement |
3.3L |
| 2.12 |
Engine Prime Power at 1500rpm |
27KWm |
| 2.13 |
Engine Standby Power at 1500rpm |
30KWm |
| 2.14 |
Start-up mode |
12V, electric |
| 2.15 |
Battery capacity |
/ |
| 2.16 |
Starting/Min temperature |
/ |
| 2.17 |
Lubricating oil consumption |
Lubricating oil consumption less
than 10% Fuel consumption
|
| 2.18 |
Lubrication oil capacity |
7.0litres |
| 2.19 |
Coolant capacity –
radiator and engine (40℃)
|
10.2litres |
| 2.20 |
Exhaust temp – full load prime |
515°C |
| 2.21 |
Exhaust gas flow – full load prime |
6.1m³/min |
| 2.22 |
Exhaust gas back pressure max |
15 kPa |
| 2.23 |
Air flow – radiator (40℃ ambient) |
/ |
| 2.24 |
Pusher fan head (duct allowance) 40℃ |
/ |
| 2.25 |
Air intake – engine– full load prime |
2.6m³/min |
| 2.26 |
Standard Air intake temp |
25℃ |
| 2.27 |
Fuel type |
#0 Diesel
(Natural temperature)
|
| 2.28 |
Filter system |
Adopt whole changeable
lubricating oil, fuel
filter and air filter
|
| 2.29 |
Exhaust system |
Adopt industrial high
efficiency silencer and
flexible bellows
|
| 2.30 |
Engine derating – altitude |
/ |
| 2.31 |
Engine derating – temperature |
/ |
| 3. SPECIFICATIONS OF ALTENATOR |
| 3.1 |
Alternator Model |
PI 144F |
| 3.2 |
Alternator Type |
A.C. Synchronous |
| 3.3 |
Rated Voltage |
230/400V |
| 3.4 |
Rated Frequency |
50HZ |
| 3.5 |
Rated speed |
1500 RPM |
| 3.6 |
Voltage regulation mode |
Auto |
| 3.7 |
Alternator voltage regulation |
±0.5％ |
| 3.8 |
Exciting mode |
Brushless self exciting |
| 3.9 |
Power factor |
0.8 (lagging) |
| 3.10 |
Phase & wires |
3 phase 12 wires |
| 3.11 |
Rated currency |
45A |
| 3.12 |
Efficiency |
0.862 |
| 3.13 |
Insulation class |
H |
| 3.14 |
Protection class |
IP23 |
Description:
1. Power: 30KVA/24KW
2. Engine: Original UK Perkins motor
3. Alternator: Genuine Stamford, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. ATS is optional
6. Type: Open type, Soundproof type, Trailer type, Container type, etc
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
7. Rental field.
Competitive Advantage:
1. Full power range 10kva to 2000kva.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
Generator Denyo canopy photos for your refernece:
