38KVA ATS Soundproof Type Industrial Diesel Generators Deepsea Harsen

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPower(Prime/Standby) | 30KW/38KVA | Frequency | 50/60hz |
---|---|---|---|
Current | 63A | Voltage | 220v-480v |
Engine | FAW / 4DX22-50D | Alternator | Meccalte/Stamford/Marathon/China Brand |
Controller | Deepsea/Smartgen/Harsen | MCCB | ABB/Delixi |
Warranty | One Year Or 1000hrs | Fuel Tank | 8 Hours Contunuous Running |
ATS | AISKAI / SOCOMMEC | ||
High Light | industrial diesel generators,diesel genset |
30KW 38KVA diesel power generator Specification:
Genset Model | B-XC38S |
Prime Power | 30KW/38KVA |
Standby Power | 33KW/42KVA |
Phase Number | 1 |
Power Factor | 1 |
Rated Voltage | 400V |
Frequency | 50 HZ |
Rated Current | 45A |
Genset Structure | Open |
Noise Level | 70-73dB (7meters) |
Dimension | 1815x765x805MM |
Net Weight | 450KG |
Engine Model | FAWDE 4DX22-50D |
Engine Features | 4-cylinder,4 stroke,water cooled, direct injection |
Bore * Stroke | 102*118 |
Displacement | 3.86L |
12-hour Power | 37KW/1500 |
Fuel Consumption | 220/KW.H |
Compression Ratio | 17:1 |
Starting Mode | Electric Starter 12V |
Fuel Tank Capacity | 50L |
Alternator Model | STAMFORD / PI144J |
Rated Power | 30KW/38KVA |
Max Power | 33KW/42KVA |
Excitation Mode | brushless self-excited |
Insulation Class | H |
Protection Class | IP23 |
Construction Type | SAE Disc-coupling |
Description:
1. Power Range: 8kw to 30kw
2. Engine: Yangdong
3. Alternator: Genuine Stamford, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. ATS is optional
6. Type: Open type, Soundproof type, Trailer type, Container type, etc
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
7. Rental field.
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.

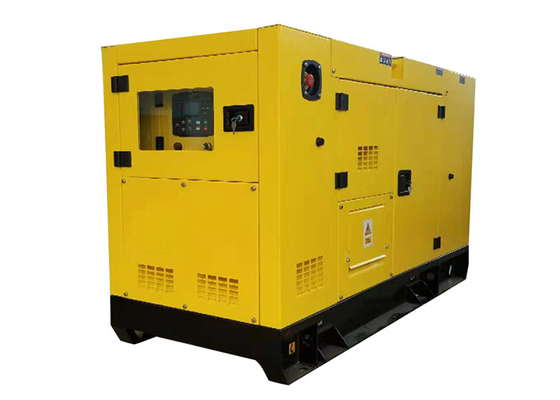

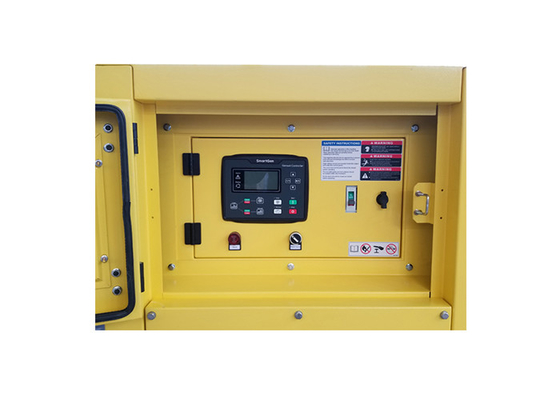

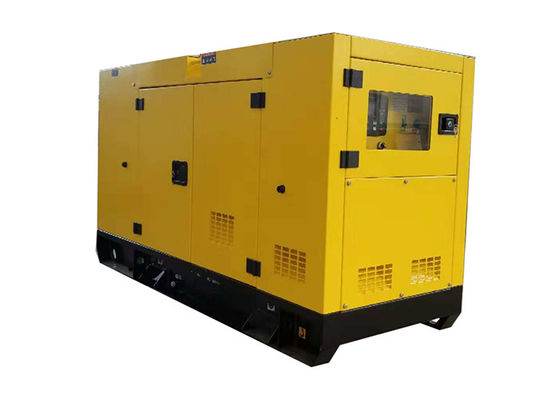

Genset photos for your refernece:
Our canopy type for choice:
