Prime 500kva Water Cooled Generator Soundproof Type With Stamford Alternator

Prime 500kva Water Cooled Generator Soundproof Type With Stamford Alternator

  • High Light

    open type genset


    water cooled generator

  • Power(Prime/Standby)
  • Frequency
  • Current
  • Voltage
  • Engine
    UK Perkins 2506C-E15TAG2
  • Alternator
  • Controller
  • MCCB
  • Warranty
    One Year Or 1000hrs
  • Fuel Tank
    8 Hours Contunuous Running
  • ATS
  • Place of Origin
    Wuxi, China
  • Brand Name
  • Certification
    ISO, CE
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plywooden box or plastic poly
  • Delivery Time
    25-30 days after advance payment
  • Payment Terms
    T/T or L/C
  • Supply Ability
    500pcs/ Month

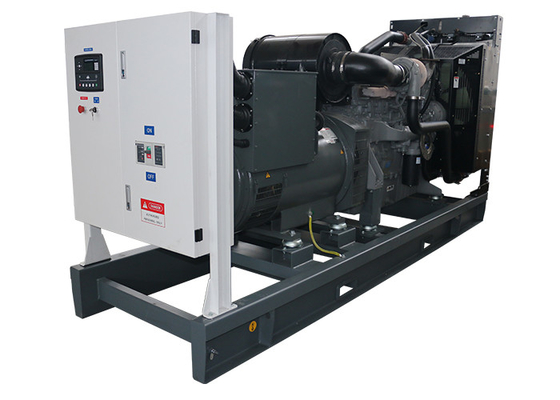

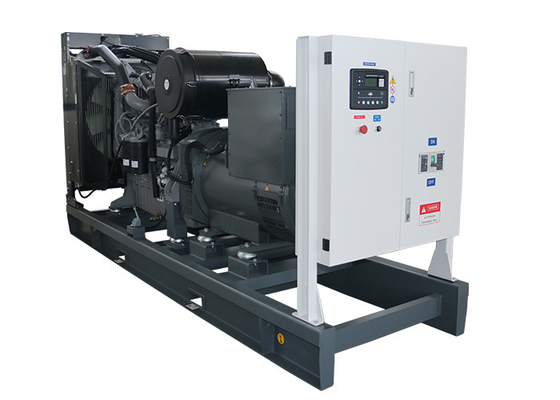

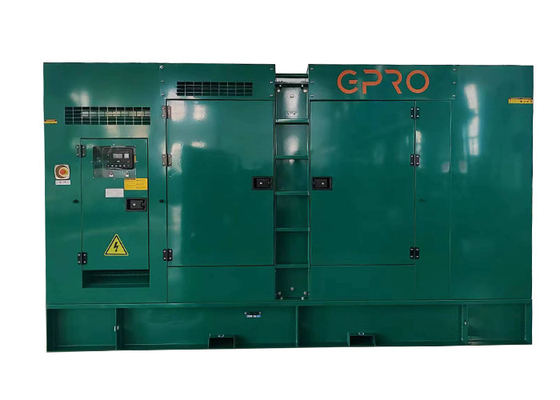

Prime 500kva Water Cooled Generator Soundproof Type With Stamford Alternator


Prime 500kva Water Cooled Generator Soundproof Type With Stamford Alternator 0



1.1 Set Model B-P500S
1.2 Prime at 50HZ, 40℃ ambient 400KW /500KVA
1.3 Standby at 50HZ, 40℃ ambient 440KW /550KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 4900×1650×2400mm
1.7 Weight 4700kg
1.8 Fuel consumption 100% prime load 106 l/hr
1.9 Noise Level at 7 (Normal/Super) 75/65dB
1.10  Structure of Gen-set

The Gen-set adopt integrative structure,

engine is fix on high strength steel

basic frame, anti vibration instrument

 between the engine and basic frame,

 cooling fan have protecting cap,

control cabinet and circuit breaker

 installed on Gen-set

1.11 Control system (Optional)

Basic control panel or Advanced

control panel with automatically start-up

function and other function

2.1 Engine Brand Perkins
2.2 Engine Model 2506C-E15TAG2
2.3 Governor/Class Electronic
2.4 Cylinder NO. 6
2.5 Engine build Vertical in-line
2.6 Fuel spray pattern direct injection
2.7 Aspiration turbocharged, air to air charge cooling
2.8 Cooling mode Radiator cooled (enclose water)
2.9 Bore and stroke 135x 167 mm
2.10  Compression ratio 16.0:1
2.11 Displacement 15.2 litres
2.12 Engine Prime Power at 1500rpm 435KWm
2.13 Engine Standby Power at 1500rpm 478KWm
2.14 Start-up mode 24V, electric
2.15 Battery capacity 2 x 12V 128 Ah
2.16 Starting/Min temperature /
2.17 Lubricating oil consumption

Lubricating oil consumption less

  than 10% Fuel consumption

2.18 Lubrication oil capacity 62 litres
2.19 Coolant capacity – radiator and engine (40℃) 58 litres
2.20  Exhaust temp – full load prime 514°C
2.21 Exhaust gas flow – full load prime 81m³/min
2.22 Exhaust gas back pressure max 3,0 kPa
2.23 Air flow – radiator (40℃ ambient) /
2.24 Pusher fan head (duct allowance) 40℃ /
2.25 Air intake – engine– full load prime 30.5m³/min
2.26 Standard Air intake temp 25℃
2.27 Fuel type #0 Diesel (Natural temperature)
2.28 Filter system

Adopt whole changeable lubricating

 oil, fuel  filter and air filter

2.29 Exhaust system

Adopt industrial high efficiency

 silencer and flexible bellows

2.30  Engine derating – altitude /
2.31 Engine derating – temperature /
3.1 Alternator Model STAMFORD /HCI544D
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10  Phase & wires 3 phase 12 wires
3.11 Rated currency 793.9A
3.12 Efficiency 0.943
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃



1.    Power: 500KVA/550KVA

2.    Engine: Original UK Perkins motor

3.    Alternator: Genuine Stamford, Marathon, Meccalte, etc

4.    Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.

5.    ATS is optional

6.    Type: Open type, Soundproof type, Trailer type, Container type, etc

7.    Color: Can be customized



1.    Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc

2.    Home use: personal use for house, camping, party, etc

3.    Telecom, Mobile tower, etc

4.    Island, Desert or any place without electricity

5.    As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.

6.    Standby power or main power, indoor or outdoor using.

7. Rental field.


Competitive Advantage:

1.    Full power range 10kva to 2000kva.

2.    All genuine engines and alternators.

3.    The components we use are in high quality.

4.    Fast delivery. Big quantity of Engines in stock.

5.    The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6.    Use high standard of sponge to make soundproof.

7.    The canopy design is user friendly, and easy for maintenance.

8.    Pre and after sales service is provided.

9.    Fast response for the inquires, service, etc.
