550KVA KTA19-G4 Diesel Power Generating Set Powered By Cummins

550KVA KTA19-G4 Diesel Power Generating Set Powered By Cummins

  • High Light

    power generating set

    ,

    industrial generators

  • Power(Prime/Standby)
    500KVA 400KW
  • Standby Power
    550KVA 440KW
  • Frenquency
    50HZ
  • Voltage
    220/380V, 230/400V
  • Engine
    Cummins
  • Alternator
    Meccalte/Stamford/Marathon
  • Controller
    Deepsea/Smartgen/Harsen
  • MCCB
    ABB/Delixi
  • Warranty
    One Year Or 1000hrs
  • Fuel Tank
    8 Hours 100% Loading
  • Place of Origin
    Jiangsu, China
  • Brand Name
    GPRO
  • Certification
    ISO, CE
  • Model Number
    GP500CCS
  • Minimum Order Quantity
    1
  • Price
    negotiable
  • Packaging Details
    Plywooden box or plastic poly
  • Delivery Time
    25 days after deposit
  • Payment Terms
    T/T or L/C
  • Supply Ability
    500pcs/ Month

550KVA KTA19-G4 Diesel Power Generating Set Powered By Cummins

550KVA KTA19-G4 Diesel Power Generating Set Powered By Cummins



Specification of 550KVA Silent Cummins diesel generator



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP500CCS
1.2 Prime at 50HZ, 40℃ ambient 400KW 500KVA
1.3 Standby at 50HZ, 40℃ ambient 440KW 550KVA
1.4 Rated Gen-set output 230/400V  50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 4900×1650×2550mm
1.7 Weight 5357kg
1.8 Fuel consumption 100% prime load 107L/h
1.9 Total heat radiated to ambient 88KW
1.10  Noise Level at 7m (Normal/Super) 78/70dB
1.11 Structure of Gen-set

The Gen-set adopt integrative structure,

 engine is fix on high strength

steel basic frame, anti vibration

instrument between the engine

 and basic frame, cooling fan

 have protecting cap,

control cabinet and circuit

breaker installed on Gen-set.

1.12 Control system (Optional)

Basic control panel or

 Advanced control panel

 with automatically  start-up

 function and other function.

2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model KTA19-G4
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Aftercooled
2.9 Cooling mode

Radiator cooled

 (enclose water)

2.10  Bore and stroke 159×159mm
2.11 Compression ratio 14.5:1
2.12 Displacement 19L
2.13 Engine Prime Power at 1500rpm 448KWm
2.14 Engine Standby Power at 1500rpm 504KWm
2.15 Battery capacity 190A/hr
2.16 Starting/Min temperature 0℃
2.17 Lubrication oil capacity 50L
2.18 Coolant  capacity  -  radiator  and engine (40℃) 91L
2.19 Exhaust temp - full load prime 538℃
2.20  Exhaust gas flow - full load prime 5162m3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃  ambient) 13.7 m  3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air   intake   -   engine-   full   load prime 1912m3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system

Adopt  whole  changeable

  lubricating  oil, fuel

    filter and air filter

2.28 Exhaust system

Adopt  industrial  high

efficiency  muffler and ripple pipe

3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Marathon
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10  Phase & wires 3 phase 12 wires
3.11 Rated currency 721.7A
3.12 Efficiency 0.938
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20  Weight 1250kg

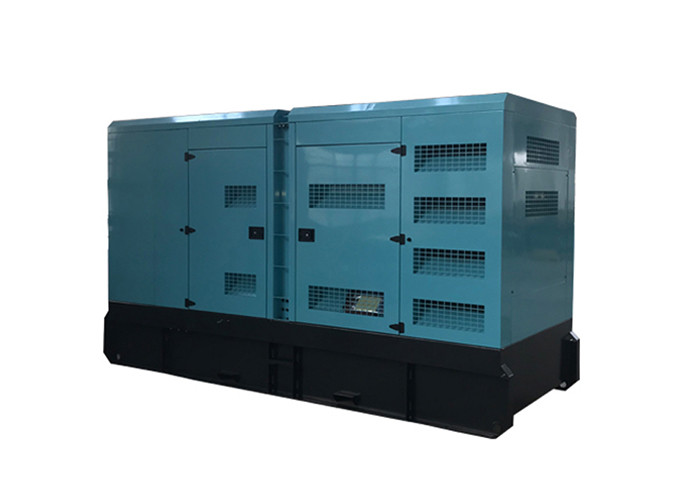

550KVA KTA19-G4 Diesel Power Generating Set Powered By Cummins 0

Description:



1.    Power Range: 20-2500kw

2.    Engine: DCEC Cummins, CCEC Cummins, USA Cummins

3.    Alternator: Genuine Stamford, Marathon, Meccalte, etc

4.    Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.

5.    ATS is optional

6.    Type: Open type, Soundproof type, Trailer type, Container type, etc

7.    Color: Can be customized

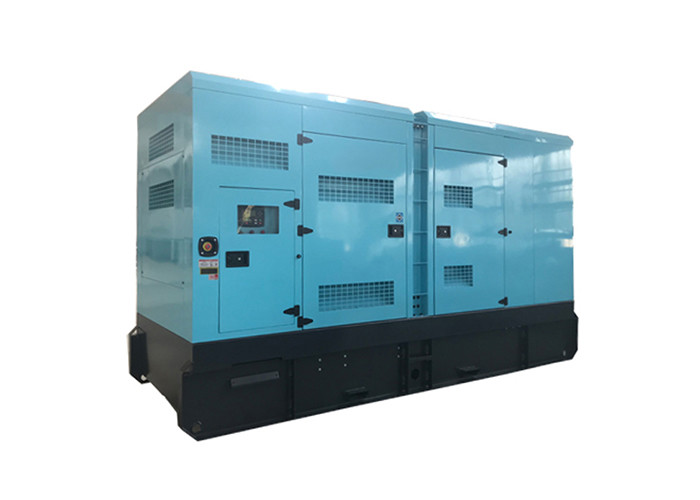

550KVA KTA19-G4 Diesel Power Generating Set Powered By Cummins 1

Applications:

1.    Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc

2.    Home use: personal use for house, camping, party, etc

3.    Telecom, Mobile tower, etc

4.    Island, Desert or any place without electricity

5.    As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6.    Standby power or main power, indoor or outdoor using.

7.    Rental field.



Competitive Advantage:

1.    Full power range.

2.    All genuine engines and alternators.

3.    The components we use are in high quality.

4.    Fast delivery. Big quantity of Engines in stock.

5.    The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6.    Use high standard of sponge to make soundproof.

7.    The canopy design is user friendly, and easy for maintenance.

8.    Pre and after sales service is provided.

9.    Fast response for the inquires, service, etc.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!

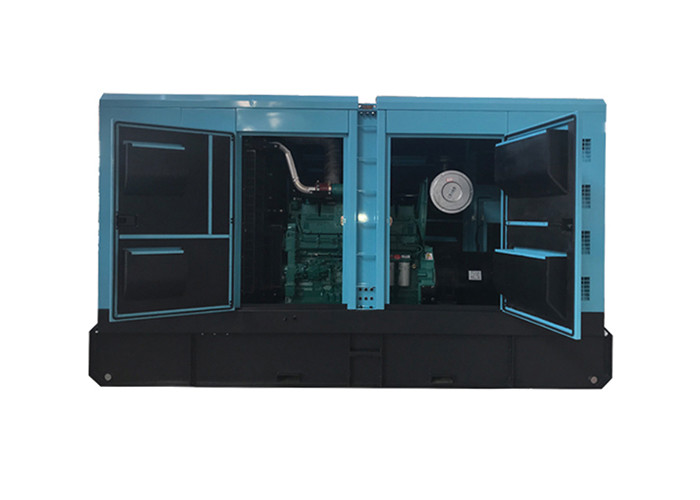

550KVA KTA19-G4 Diesel Power Generating Set Powered By Cummins 2

Our Partners:

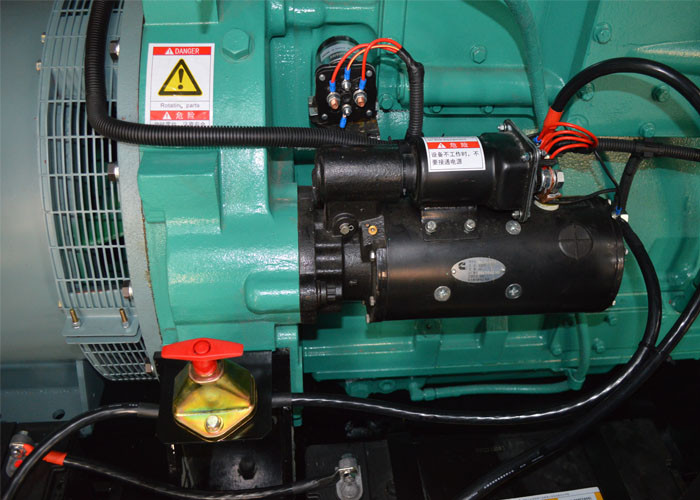

550KVA KTA19-G4 Diesel Power Generating Set Powered By Cummins 3
