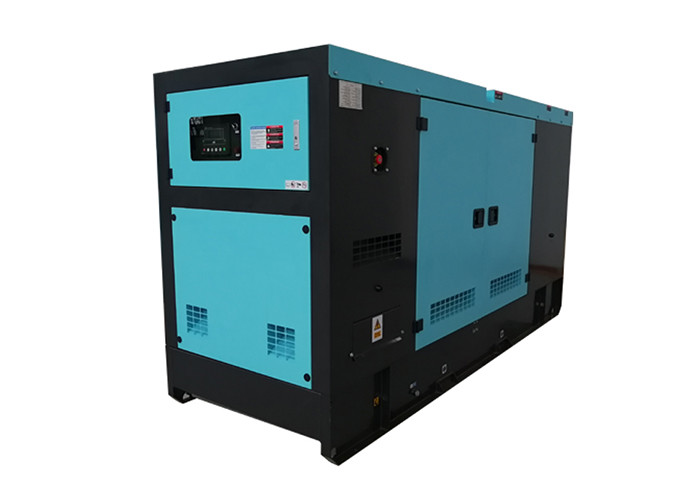

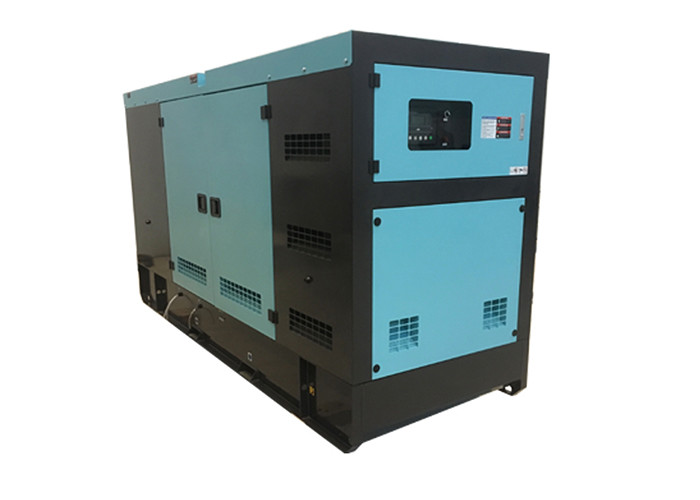

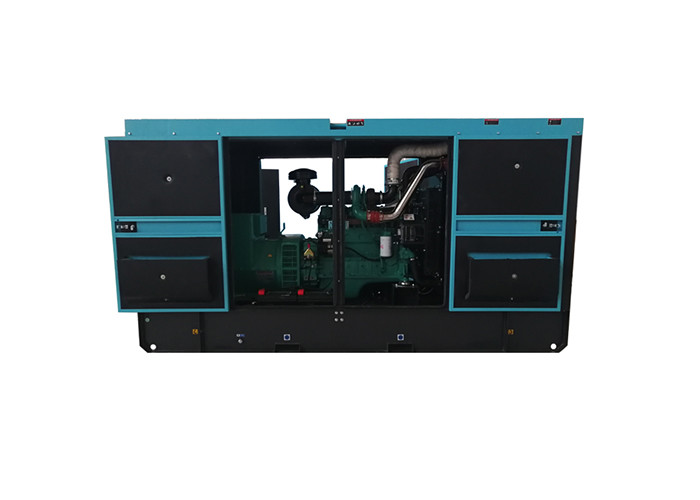

220v - 690v 30kva Silent Generator Set By Isuzu 4JB1T Engine
Model Soundproof diesel generator set |
GP30IS |
||
SET |
Rated power(Kw/kva) Prime power |
24KW/30KVA |
|
Frequency(Hz) |
50 |
||
Phase |
3 |
||
Voltage(V) |
380/220V |
||
Current(A) |
34.8 |
||
Fuel capacity(L) |
82 |
||
Fuel consumption(L/Hour) 100% Prime power |
4.4 |
||
Dimension (mm) |
L |
1880 |
|
W |
800 |
||
H |
1080 |
||
Weight(kg) |
770 |
||
Noice level for silent type (Db/7m) |
56 |
||
ENGINE |
Model |
4JB1T, ISUZU Brand |
|
Prime power(kw/kva) |
24/30 |
||
Cylinders |
4 |
||
Bore×stroke(mm) |
93×102 |
||
Intake Method |
Natural intake |
||
Displacement(L) |
2.771 |
||
Speed governing |
Mechanical governor |
||
Cooling starting method |
Water cooling |
||
ALTERNATOR |
Model |
G184F |
|
Rated power(kw/kva) |
22/27.5 |
||
Insulation class |
H |
||
Alternator enclosure |
IP23 |
||
THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50°C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION. |
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional.
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
