Super Silent 64dB Perkins Diesel Generator 15kva Key Start 404A-22G Engine
| 1. SPECIFICATIONS OF GEN-SET |
| 1.1 |
Set Model |
GP17PS |
| 1.2 |
Prime at 50HZ, 40℃ ambient |
12KW 15KVA |
| 1.3 |
Standby at 50HZ, 40℃ ambient |
13KW18KVA |
| 1.4 |
Rated Gen-set output |
230/400V 50Hz |
| 1.5 |
Rated Relative humidity |
≤ 60 % |
| 1.6 |
Dimension (L×W×H) |
2100×850×1300mm |
| 1.7 |
Weight |
700kg |
| 1.8 |
Fuel consumption 100% prime load |
5,4 l/hr |
| 1.9 |
Noise Level at 7 (Normal/Super) |
75/65dB |
| 1.1 |
Structure of Gen-set |
The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set |
| 1.11 |
Control system (Optional) |
Basic control panel or Advanced control panel with automatically start-up function and other function |
| 2. SPECIFICATIONS OF ENGINE |
| 2.1 |
Engine Brand |
Perkins |
| 2.2 |
Engine Model |
404A-22G |
| 2.3 |
Governor/Class |
Mechanical |
| 2.4 |
Cylinder NO. |
4 |
| 2.5 |
Engine build |
Vertical in-line |
| 2.6 |
Fuel spray pattern |
Indirect injection |
| 2.7 |
Aspiration |
Naturally |
| 2.8 |
Cooling mode |
Radiator cooled (enclose water) |
| 2.9 |
Bore and stroke |
84×100mm |
| 2.1 |
Compression ratio |
23·3 : 1 |
| 2.11 |
Displacement |
2.216L |
| 2.12 |
Engine Prime Power at 1500rpm |
18.4KWm |
| 2.13 |
Engine Standby Power at 1500rpm |
20.3KWm |
| 2.14 |
Start-up mode |
12V, electric |
| 2.15 |
Starting/Min temperature |
/ |
| 2.16 |
Lubricating oil consumption |
Lubricating oil consumption less than 10% Fuel consumption |
| 2.17 |
Lubrication oil capacity |
10,6 litres |
| 2.18 |
Coolant capacity – radiator and engine (40℃) |
6,98 litres |
| 2.19 |
Exhaust temp – full load prime |
445°C |
| 2.2 |
Exhaust gas flow – full load prime |
3,64m³/min |
| 2.21 |
Exhaust gas back pressure max |
10,2 kPa |
| 2.22 |
Air flow – radiator (40℃ ambient) |
/ |
| 2.23 |
Air intake – engine– full load prime |
1,45m³/min |
| 2.24 |
Standard Air intake temp |
25℃ |
| 2.25 |
Fuel type |
#0 Diesel (Natural temperature) |
| 2.26 |
Filter system |
Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.27 |
Exhaust system |
Adopt industrial high efficiency silencer and flexible bellows |
| 2.28 |
Engine derating – altitude |
Above the sea-level 1525m high, a fall of 4% from a rise of 300m. |
| 2.29 |
Engine derating – temperature |
Above the ambient temperature 40℃ high, a fall of 2% from a rise of 11%. |
| 3. SPECIFICATIONS OF ALTENATOR |
| 3.1 |
Alternator Model |
PI 144D |
| 3.2 |
Alternator Type |
A.C. Synchronous |
| 3.3 |
Rated Voltage |
230/400V |
| 3.4 |
Rated Frequency |
50HZ |
| 3.5 |
Rated speed |
1500 RPM |
| 3.6 |
Voltage regulation mode |
Auto |
| 3.7 |
Alternator voltage regulation |
±0.5％ |
| 3.8 |
Exciting mode |
Brushless self exciting |
| 3.9 |
Power factor |
0.8 (lagging) |
| 3.1 |
Phase & wires |
3 phase 12 wires |
| 3.11 |
Rated currency |
25.3A |
| 3.12 |
Efficiency |
0.842 |
| 3.13 |
Insulation class |
H |
| 3.14 |
Protection class |
IP23 |
| 3.15 |
Single load step to NFPA110 |
100% |
| 3.16 |
Standards |
IEC34-1,NEMA1 |
| 3.17 |
Max. Ambient Temperature |
40℃ |
| 3.18 |
Min. Ambient Temperature |
- 15℃ |
| 3.19 |
Max. altitude |
1000m |
| 3.2 |
Weight |
133Kg |
Description:
1. Power: 15KVA/12KW
2. Engine: Original UK Perkins motor
3. Alternator: Genuine Stamford
4. Controller: Deepsea or Smartgen with or without AMF. Options: Key start model
5. ATS is optional
6. Type: Super silent generator , 64dB at 7 meters, 71 dB at 1 meter.
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
7. Rental field.
Competitive Advantage:
1. Full power range 10kva to 2000kva.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
10. Approval EURO emission standard and USA EPA emission standard.

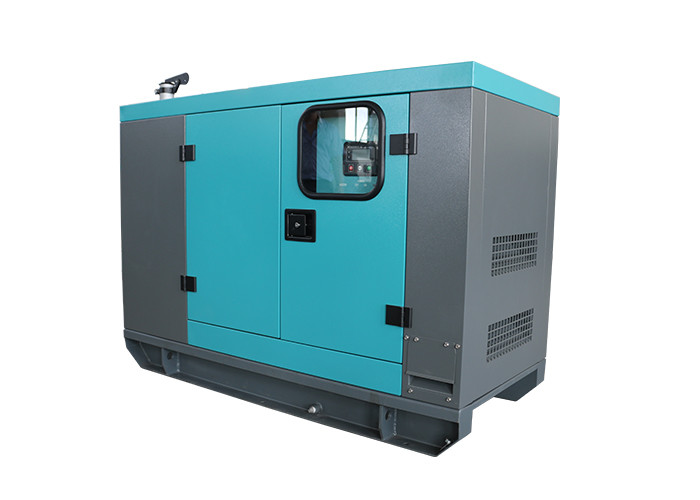

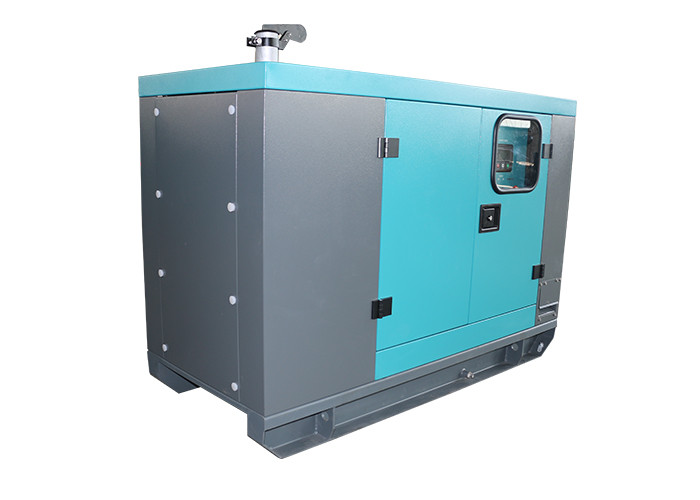

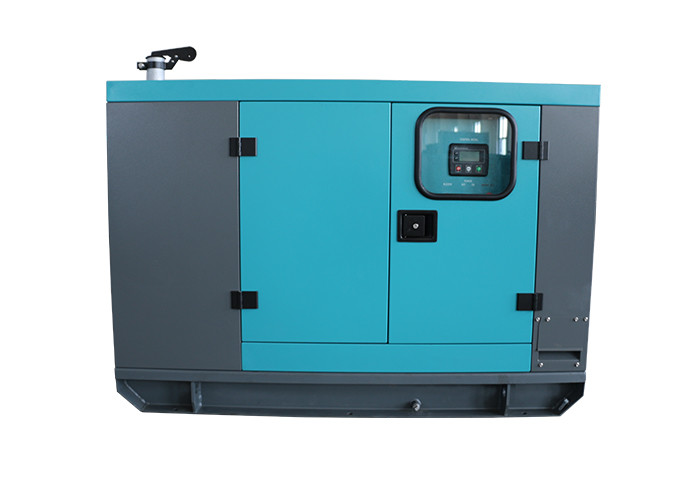

Super silent generators photos:
