10 hours continue working silent generator set 12kw 15kva with FAWDE engine

Place of Origin Jiangsu of China
Brand Name Power Friend
Certification ISO,CE Certification
Model Number PF-FW22
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 300 Set / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Power 16KW 20KVA Frequency 50/60HZ
Voltage 220v - 690v Optional Engine FAWDE
Alternator Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional Controller Deepsea, Smartgen, Harsen For Optional
MCCB ABB Or Delixi Cooling System Water Cooled
Genset Type Open Type, Silent Type, Container Type, Trailer Type For Optional ATS Optional
High Light

power generating set

,

industrial generators

Leave a Message
Product Description

10 hours continue working silent generator set 12kw 15kva with FAWDE engine



Model Soundproof diesel generator set

PF-FW22

SET

Rated power(Kw/kva) Prime power

16KW/20KVA

Frequency(Hz)

50

Phase

3

Voltage(V)

380/220V

Current(A)

23

Fuel capacity(L)

100

Fuel consumption(L/Hour)

100% Prime power

4

Dimension (mm)

L

1880

W

800

H

1080

Weight(kg)

770

Noice level for silent type (Db/7m)

56

ENGINE

Model

4DW91-29D

Prime power(kw/kva)

16/20

Cylinders

4

Bore×stroke(mm)

93×102

Intake Method

Natural intake

Displacement(L)

2.771

Speed governing

Mechanical governor

Cooling starting method

Water cooling

ALTERNATOR

Model

UP184E

Rated power(kw/kva)

12/15

Insulation class

H

Alternator enclosure

IP23

THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50°C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION.


Heavy duty world class brand  industrial diesel engine:

a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards

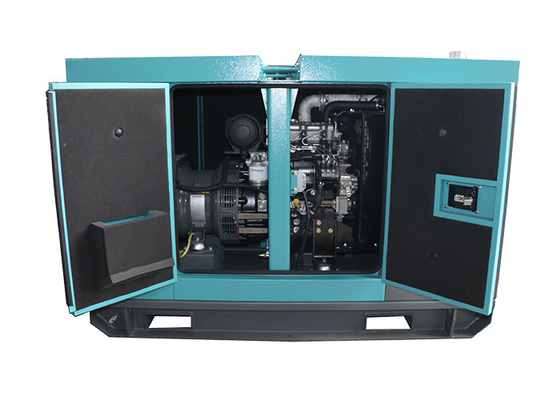

10 hours continue working silent generator set 12kw 15kva with FAWDE engine 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional.

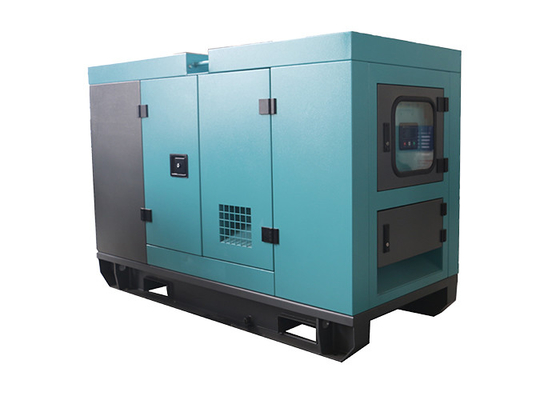

10 hours continue working silent generator set 12kw 15kva with FAWDE engine 1

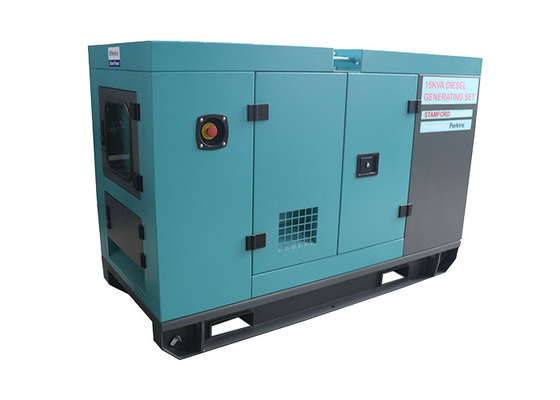

10 hours continue working silent generator set 12kw 15kva with FAWDE engine 2





 Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets.

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours

. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
. Spare-parts can also be sent by air express.


If have any questions, please contact us. Your inquiry would be appreciated.
