Water Cooled Cummins Diesel Generator Silent Generator Set 400V Three Phase

1 sets
MOQ
negotiation
Price
Water Cooled  Cummins Diesel Generator Silent Generator Set 400V Three Phase
Features Gallery Product Description Request A Quote
Features
Specifications
Cooling System: Water Cooled
Fuel Tank: 8 Hours Running
Speed Govern: Electronic
Speed: 1500rpm
Conditions Of Use: Land Use
High Light:

power generating set

,

industrial generators

Basic Infomation
Place of Origin: China, Wuxi
Brand Name: GPRO
Certification: CE, ISO
Model Number: GP125DCS
Payment & Shipping Terms
Packaging Details: ply wooden case, plastic
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 400 sets
Product Description

Water Cooled Cummins Diesel Generator Silent Generator Set 400V Three Phase



Generator soundproof/Silent and canopy

1) Excellent ventilation

2) Black finish stainless steel locks and hinges

3) Zinc plated or stainless steel fasteners

4) Body made from steel components treated with polyester powder coating

5) Two large doors on either side

6) Radiator fill access plate

7) Fully guarded cooling fan and battery charging alternator

8) Fuel fill and battery access via lockable access doors

9) Emergency stop button on canopy exterior

10) Lube oil drain and radiator drain to exterior

11) Control panel viewing window

12) Lifting points on base frame



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Genset Spes:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP125DCS
1.2 Prime at 50HZ, 40℃ ambient 90kW 113KVA
1.3 Standby at 50HZ, 40℃ ambient 100kW 125KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 3150×1150×1780mm
1.7 Weight 2265kg
1.8 Fuel consumption 100% prime load 26L/h
1.9 Total heat radiated to ambient 19KW
1.10 Noise Level at 7m (Normal/Super) 72/62dB
1.11 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.

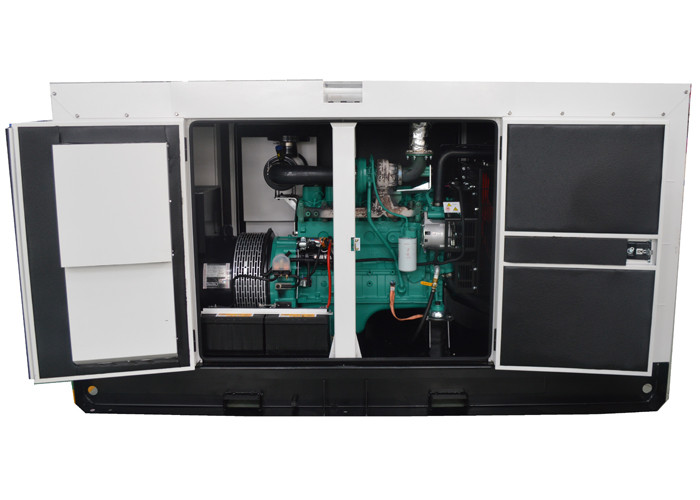

Water Cooled  Cummins Diesel Generator Silent Generator Set 400V Three Phase 0


Genset details:

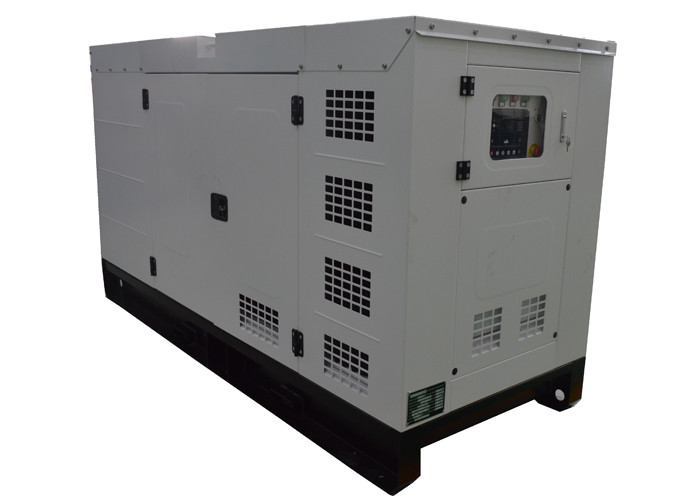

Water Cooled  Cummins Diesel Generator Silent Generator Set 400V Three Phase 1







Company Details:



Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:

1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.


Water Cooled  Cummins Diesel Generator Silent Generator Set 400V Three Phase 2
 Tag: Cummins diesel generator, silent diesel generator
