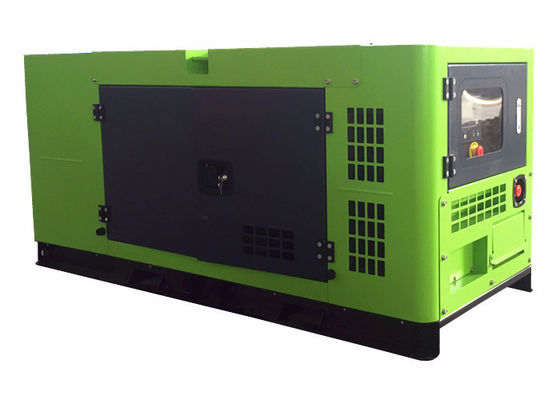

Perkins 403A-15G2 engine generator 12kw / 15kva diesel power genset
-
High Light
open type genset
,water cooled generator
-
Output Power12KW 15KVA
-
Frequency50/60HZ
-
Voltage220v - 690v Optional
-
EnginePerkins
-
AlternatorStamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
-
ControllerDeepsea, Smartgen, Harsen For Optional
-
MCCBABB Or Delixi
-
Cooling SystemWater Cooled
-
Genset TypeOpen Type, Silent Type, Container Type, Trailer Type For Optional
-
ATSOptional
-
Place of OriginJiangsu of China
-
Brand NameGPRO
-
CertificationISO,CE Certification
-
Model NumberPF-P15
-
Minimum Order Quantity1 SET
-
PriceNegotiation
-
Packaging DetailsPlywood or Plastic packing
-
Delivery Time15 - 20 working day
-
Payment TermsL/C, T/T
-
Supply Ability300 Set / Month
Perkins 403A-15G2 engine generator 12kw / 15kva diesel power genset
Perkins 403A-15G2 engine generator 12kw/15kva diesel power genset UK brand
| 1. Specification of genset | |||||||||
| Genset Model | PF-P15 | ||||||||
| Prime Power(KW) | 15KVA/12KW | ||||||||
| Rated Voltage(V) | 380V | ||||||||
| Rated Current(A) | 30.4 | ||||||||
| Rated Frequency(HZ) | 50 | ||||||||
| Power Factor(COS) | 0.8(lagging) | ||||||||
| Rated Speed | 1500rpm | ||||||||
| Dimensions(mm) (L×W×H) -- silent type | 2050×950×1420 | ||||||||
| Genset Weight(kgs) -- silent type | 900 | ||||||||
| Noise Level @ 7 m | 70db (A) | ||||||||
| 2. Specification of diesel engine | |||||||||
| Engine Brand | Perkins | ||||||||
| Engine Model | 403A-15G2 | ||||||||
| Number of Cylinders | 3 | ||||||||
| Cylinder Arrangement | “L” Type | ||||||||
| Cycle | Four stroke | ||||||||
| Air intake System | Naturally aspirated, Air/Water cooling | ||||||||
| Fuel System | Indirect injection | ||||||||
| Maximum Prime Power at Rated RPM | 20.3KW (27.6BHP) | ||||||||
| Bore×Stroke (mm×mm) | 84x 100 | ||||||||
| Displacement (Liter) | 2.216 | ||||||||
| Compression Ratio | 23.3:1 | ||||||||
| Speed Governor | Electronic | ||||||||
| Cooling System | Water Cooled | ||||||||
| Lub. oil capacity (L) | 10.6 | ||||||||
| Fuel Consumption at 100% Load (L/h) | 5.3 | ||||||||
| Starting Method | DC24V electrical starting | ||||||||
| 3. Specification of alternator | |||||||||
| Alternator Brand | Stamford | ||||||||
| Alternator Model | PI144D | ||||||||
| Number of Phase | 3 | ||||||||
| Connecting Type | 3 Phases and 4 Wires | ||||||||
| Number of Bearing | 1 | ||||||||
| Maximum Capacity | 22KVA | ||||||||
| Rated Speed | 1500RPM | ||||||||
| Protection Grade | IP23 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | ||||||||
| Insulation Class | H | ||||||||
| TIF | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% | ||||||||
| 4. Specification of control Panel | |||||||||
| HGM6110K series Genset controller integrating digital, intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarm protective. The controller uses LCD display, optional Chinese, English, Spanish and Russian display interface with Operation easy and reliable. HGM6110K series Genset controller uses micro-processing technique which can carryout precision measure, constant value adjustment, timing and threshold setting and etc. functions. It can be widely used in all types of generator automatic control system for compact structure, advanced circuits, simple connections and high reliability,can be widely applied to various types of generating units automation system. | |||||||||
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional.
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
. Spare-parts can also be sent by air express.
If have any questions, please contact us. Your inquiry would be appreciated.
Our products are sold all over the world, you can rest assured.
