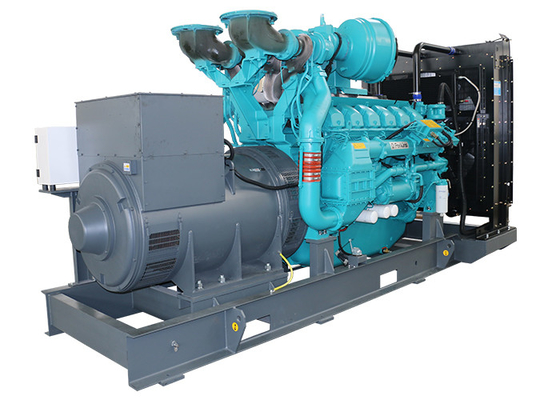

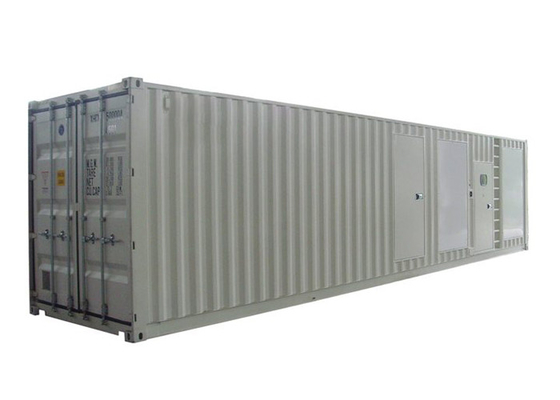

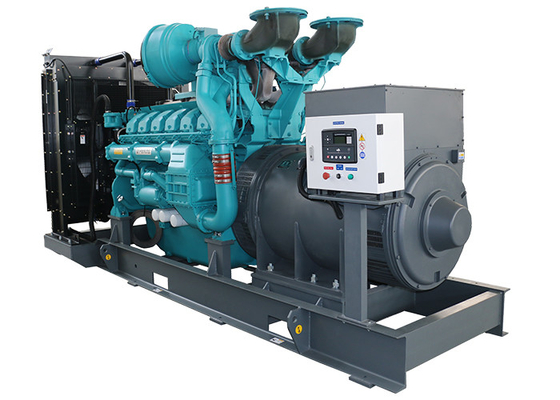

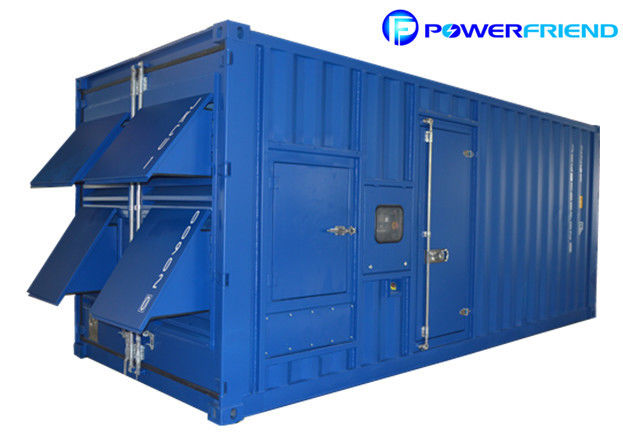

Container Type Diesel Water Cooled Generator Soundproof 1250KVA / 1000KW
-
High Light
open type genset
,water cooled generator
-
Output Power1250KVA /1000KW
-
Frequency50/60HZ
-
Voltage220/400V 230/430 240/415 Optional
-
EnginePerkins
-
AlternatorStamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
-
ControllerDeepsea 6020/7320
-
MCCBABB Or Delixi
-
Cooling SystemWater Cooled
-
Noisel Level85dB At 7 Meters
-
ATSOptional
-
Place of OriginJiangsu,China
-
Brand NameGPRO
-
CertificationISO,CE , CO, FORM E Certification
-
Model NumberPF-P1375
-
Minimum Order Quantity1 SET
-
PriceNegotiation
-
Packaging DetailsPlywood or Plastic packing
-
Delivery Time25 working days
-
Payment TermsL/C, T/T
-
Supply Ability500 Set / Month
Container Type Diesel Water Cooled Generator Soundproof 1250KVA / 1000KW
UK Perkins container type generator 800kw to 1500kw soundproof big power genset
|
MODEL |
PF-P1375 |
| PRIME POWER (KVA/KW) | 1250/1000 |
| STANDBY POWER(KVA/KW) | 1375/1100 |
| Rated voltage(V) | 400/230 |
| Rated speed(rpm) | 1500 |
| Rated frequency(Hz) | 50 |
| Power factor | 0.8 |
| Ambient temperature(°C) | 40 |
| Altitude(m) | 1000 |
| Connection type | 3 phase 4 wires |
| ENGINE MANUFACTURER |
UK Perkins brand |
| Model | 4012-46TWG2A |
| Rated Power(kW) | 1000 |
| No. of cylinders & configuration | 3 vertical in-Line |
| Method of operation | 4-stroke |
| Speed regulation | Mechanically governor |
| Starting system | DC 12V Electronic start |
| Cooling method | Closed-circuit cooling system |
| Total displacement(L) | 3.3 |
| Compression ratio | 17.25:1 |
| Bore×Stroke(mm) | 105×127 |
| 100% Load fuel consumption(L/h) | ≤13.9 |
| ALTERNATOR MANUFACTURER | STAMFORD |
| Number of Phase | 3 |
| Connection Type | 3Phase and 4Wires |
| Number of Bearing | 1 |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Terminal | 12 |
| Winding/ Pitch | 100% Copper 2/3 Pitch |
| Cooling Fan | Cast alloy aluminum |
| Exciter Type | Brushless, Self-Exciting |
| Insulation Class, Temperature Rise | H/H |
| Telephone Influence Factor( TIF) | TIF <50 / THF<2% |
| Total Harmonic TGH/THC | <1.5% at no load / <5% at load |
| Voltage Regulation, Steady State | ≤±1% |
| Sustained Short-Circuit Current | 300%(3 in):10s |
| CONTROL SYSTEM | DSE SERIES |
Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Features and benefits
1.Tightly structure, excellent design and craft
2.Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3.Self-diagnostic capability simplifies troubleshooting
4.LCD display shows system status and setup information
5.Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
6.Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
7.Enclosed muffler for added quietness
8.Service and maintenance accessible through easy-latch side service door
Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
If have any questions, please contact us. Your inquiry would be appreciated.
Our products are sold all over the world, you can rest assured.
