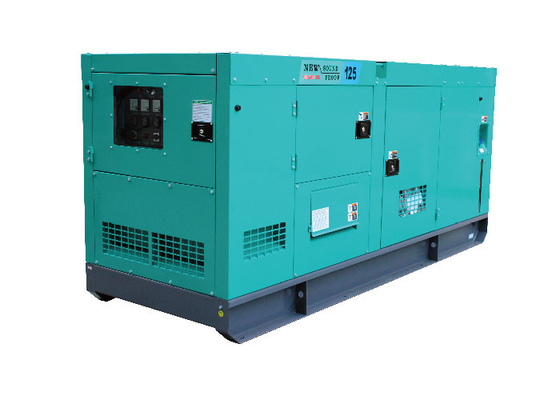

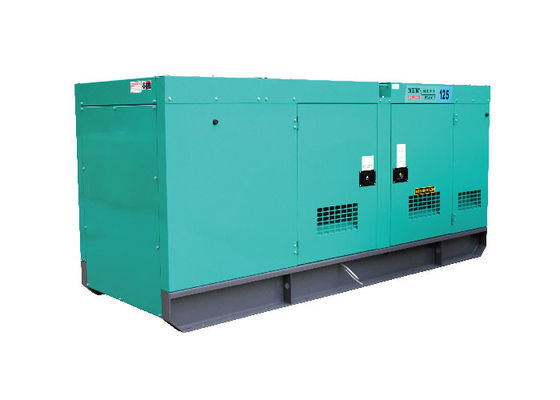

Water Cooled Prime Power 15kva Silent Generator Set Three Phase 400V with ATS
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Cooling System||Water Cooled||Fuel Tank||8 Hours Running|
|Conditions Of Use||Land Use||ATS||Optional|
power generating set,
silent diesel generators
Three Phase 15kva Compact Design with ATS Silent Generator Set
Generator soundproof/Silent and canopy
1) Excellent ventilation
2) Black finish stainless steel locks and hinges
3) Zinc plated or stainless steel fasteners
4) Body made from steel components treated with polyester powder coating
5) Two large doors on either side
6) Radiator fill access plate
7) Fully guarded cooling fan and battery charging alternator
8) Fuel fill and battery access via lockable access doors
9) Emergency stop button on canopy exterior
10) Lube oil drain and radiator drain to exterior
11) Control panel viewing window
12) Lifting points on base frame
Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
|1. SPECIFICATIONS OF GEN-SET|
|1.2||Prime at 50HZ, 40℃ ambient||12KW 15KVA|
|1.3||Standby at 50HZ, 40℃ ambient||13.2KW 16.5KVA|
|1.4||Rated Gen-set output||230/400V 50Hz|
|1.5||Rated Relative humidity||≤ 60 %|
|1.8||Noise level at 7 meter||66dba|
|1.9||Fuel consumption 100% prime load||3.3|
|1.10||Structure of Gen-set||The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.|
|1.11||Control system (Optional)||Basic control panel or Advanced control panel with automatically start-up function and other function.|
|2. SPECIFICATIONS OF ENGINE|
|2.3||Governor/Class||Machanical or Electronic|
|2.6||Emission compliant||Stage II|
|2.7||start-up method||12V, electric|
|2.8||Air intake type||Natural|
|2.9||Cooling mode||Water Cooling|
|2.10||Bore and stroke||85×100 mm|
|2.13||Engine Prime Power at 1500rpm||17KWm|
|2.14||Engine Standby Power at 1500rpm||19KWm|
|2.15||Lubrication oil capacity||7.8L|
|2.17||Dry weight of base||220Kg|
|2.18||Dry weight of Gen Pac||240Kg|
|2.21||27℃ air consumption ( m³/ min)||1.4|
|2.22||Fuel type||#0 Diesel (Natural temperature)|
|2.23||Filter system||Adopt whole changeable lubricating oil, fuel filter and air filter|
|2.24||Exhaust system||Adopt industrial high efficiency muffler and ripple pipe|
|3. SPECIFICATIONS OF ALTENATOR|
|3.2||Alternator Type||A.C. Synchronous|
|3.5||Rated speed||1500 RPM|
|3.6||Voltage regulation mode||Auto|
|3.7||Alternator voltage regulation||±0.5％|
|3.8||Exciting mode||Brushless self exciting|
|3.9||Power factor||0.8 (lagging)|
|3.10||Phase & wires||3 phase 12 wires|
|3.15||Single load step to NFPA110||100%|
|3.17||Max. Ambient Temperature||40℃|
|3.18||Min. Ambient Temperature||- 20℃|
JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
