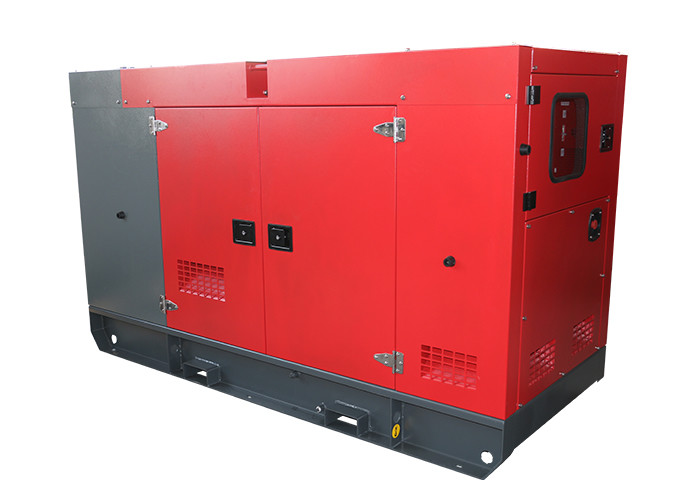

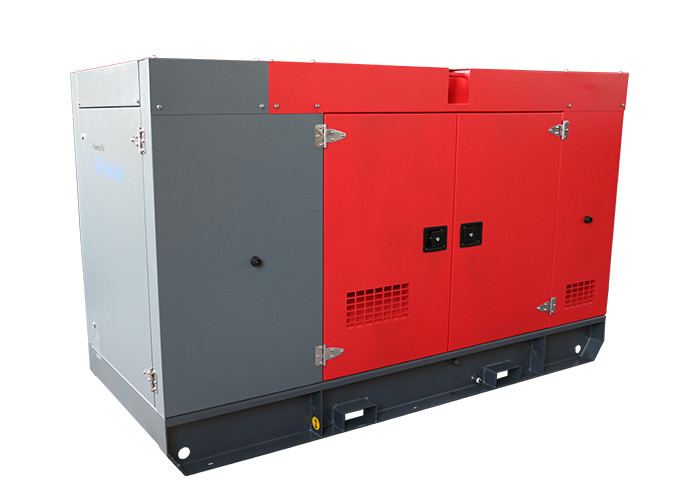

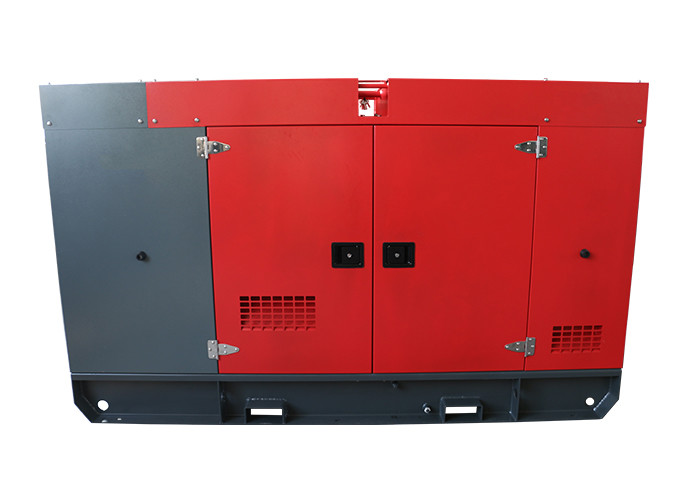

50kva Industrial Diesel Generators FAWDE Engine Soundproof 3 Phase For Industrial
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power(Prime/Standby) | 50KVA/40KW | Standby Power | 55kva / 44kw |
|---|---|---|---|
| Current | 100A | Voltage | 220/380V |
| Engine | Foton Lovol 1004T | Alternator | Original Stamford / Mecc Alte |
| Controller | Smartgen / DeepSea/ Harseen | MCCB | Delixi / ABB 3 Pole Or 4 Pole |
| Sound Level/db | 65dB 7 Meter | Warranty | 1 Year Or 1000 Hours |
| ATS | Option | ||
| High Light | industrial diesel generators,diesel silent generator |
||
Product Description
50KVA POWER GENERATOR SPECIFICATION:
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-FW55S |
| 1.2 | Prime at 50HZ, 40℃ ambient | 40KW 50KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 44KW 55KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | 2500X1000X1355 mm |
| 1.7 | Weight | 1180 kg |
| 1.8 | Fuel consumption 100% prime load | 10.6L/h |
| 1.9 | Noise level at 7 m (Normal/Super) | 65dB |
| 1.10 | Structure of Gen-set |
The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 1.11 | Control system (Optional) |
Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | FAWDE |
| 2.2 | Engine Model | 4DX23-65D |
| 2.3 | Governor/Class | Mechanical/Electrical(select) |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Fuel spray pattern | Direct injection |
| 2.7 | start-up method | 12V, electric |
| 2.8 | Aspiration | Nature |
| 2.9 | Cooling mode | Radiator cooled (enclose water) |
| 2.10 | Bore and stroke | 100X127 mm |
| 2.11 | Compression ratio | 16.5:1 |
| 2.12 | Displacement | 3.99 L |
| 2.13 | Engine Prime Power at 1500rpm | 40KWm |
| 2.14 | Engine Standby Power at 1500rpm | 44KWm |
| 2.15 | Battery capacity | 120A/hr |
| 2.16 | Starting/Min temperature | select |
| 2.17 | Lubrication oil capacity | 8.5L |
| 2.18 | Coolant capacity – radiator and engine (40℃) | 21L |
| 2.19 | Exhaust temp – full load prime | <600℃ |
| 2.20 | Exhaust gas flow – full load prime | 9000m3/h |
| 2.21 | Exhaust gas back pressure max | 25mmHg |
| 2.22 | Air flow – radiator (40℃ ambient) | 1.3 m3/s |
| 2.23 | Pusher fan head (duct allowance) 40℃ | / |
| 2.24 | Air intake – engine– full load prime | 9600m3/h |
| 2.25 | Standard Air intake temp | 25℃ |
| 2.26 | Fuel type | #0 Diesel (Natural temperature) |
| 2.27 | Filter system |
Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.28 | Exhaust system |
Adopt industrial high efficiency silencer and flexible bellows |
| 2.29 | Engine derating – altitude |
Above the sea-level 1525m high, a fall of 4% from a rise of 300m. |
| 2.30 | Engine derating – temperature |
Above the ambient temperature 40℃high, a fall of 2% from a rise of 11%. |
| 3. SPECIFICATIONS OF ALTENATOR | ||
| 3.1 | Alternator Model | 224D |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 39.3A |
| 3.12 | Efficiency | 0.858 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1,NEMA1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 15℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 151㎏ |
Description:
1. Chinese brand- FAWDE engine
2. Alternator: Brushless - Original Stamford / Mecc Alte
3. Controller: Deepsea or Smartgen with or without AMF.
4. Options: remote controller, synchronizing.
5. ATS is optional
6. Type: Soundproof type, weather proof, Trailer type
7. Color: Any color
8. Support OEM
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. Low fuel consumption
2. Good quality engine and alternator
3. Fast delivery. Big quantity of Engines in stock.
4. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
5. Use high standard of sponge to make soundproof.
6. The canopy design is user friendly, and easy for maintenance.
7. Pre and after sales service is provided.
8. 365 days, 24 hours after sale service
