20kva Perkins Diesel Water Cooled Generator Electric Power 16kw Silence Genset 3 Phase
Free samples available
Has provided samples for 15,698 customers and assisted in completing 8,973 projects
New customers enjoy 300-500$ coupons
Save $300-500 per customer, "Free Gift" Network Cable Kit, Optical Cable Kitx
|Output Power||16KW 20KVA||Frequency||50/60HZ|
|Voltage||220v - 690v Optional||Engine||Perkins|
|Alternator||Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional||Controller||Deepsea, Smartgen, Harsen For Optional|
|MCCB||ABB Or Delixi||Cooling System||Water Cooled|
|Genset Type||Open Type, Silent Type, Container Type, Trailer Type For Optional||ATS||Optional|

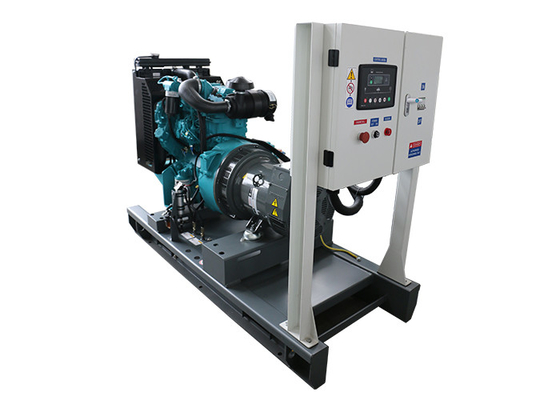

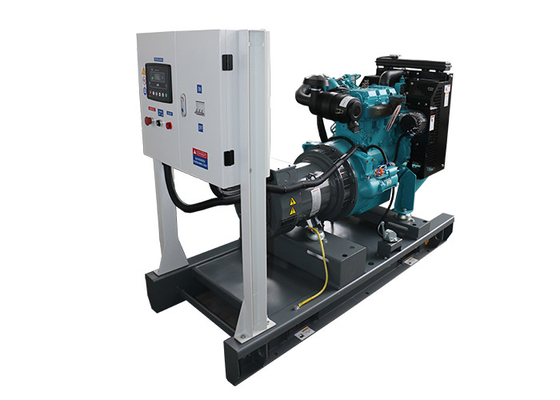

open type genset,
water cooled generator

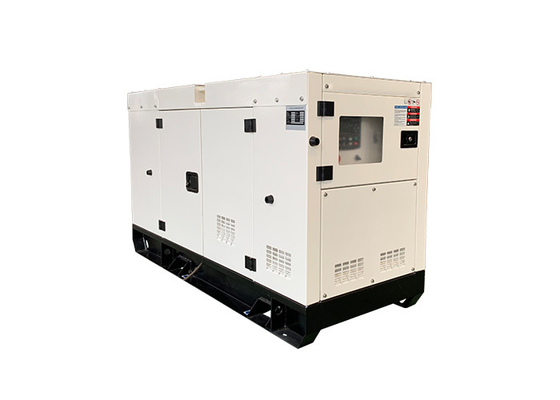

20kva Perkins Diesel Generator Electric Power 16kw Silence Genset 3 phase
|Genset||Prime Power (kw/kva)||16/ 20|
|Voltage Recovery Time||≤1S|
|Rated Frequency (Hz)||50|
|Frequency Recovery Time||≤5S|
|Running Noise db(A)/7m(Silent type)||75|
|Battery capacity (V-Ah)||12V 100Ah|
|Soundproof Type- Dimension (L*W*H) (mm)||1800*750*1120|
|Soundproof Type-Weight (kg)||1080|
|Engine||Engine brand/ model||Perkins 404A-22G|
|Output Power (kw)||20|
|Cylinder No. & Config.||4, in-line|
|Combustion System||Indirect injection|
|Engine Speed (r/min)||1500|
|Starting System||12V DC Electric|
|Filter System||Dry oil filter/Fuel filter/Oil filter|
|Alternator||Alternator brand||Stamford, Mecc-alte,Faraday…|
|Excitation System||Brushless, self-exciting|
|Voltage Regulation Mode||AVR|
|Connection Type||3phase,4wires,”Y” connection|
|Rotation Speed (r/min)||1500|
|Temperature Rise (℃)||125|
|Voltage Regulation (0 load)||≥95%～105%|
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional.
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
. Spare-parts can also be sent by air express.
If have any questions, please contact us. Your inquiry would be appreciated.
