250 kw Industrial Diesel Generator Cummins Engine 275 kw Standby Generating

1 SET
MOQ
Negotiation
Price
250 kw Industrial Diesel Generator Cummins Engine 275 kw Standby Generating
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 250KW 312KVA
Frequency: 50/60HZ
Voltage: 220v - 690v Optional
Engine: Yuchai,Cummins, Perkins, Deutz, FPT, Chinese Brand For Optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
Controller: Deepsea, Smartgen, Harsen For Optional
MCCB: ABB Or Delixi
Cooling System: Water Cooled
Genset Type: Open Type, Silent Type, Container Type, Trailer Type For Optional
ATS: Optional
High Light:

power generating set

,

silent diesel generators

Basic Infomation
Place of Origin: Jiangsu of China
Brand Name: GPRO
Certification: ISO,CE Certification
Model Number: GP343YCS
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Product Description

250kw Industrial Use Diesel Generator Power by Yuchai engine 275kw Standby Generating



Technical data

Genset Model

GP343YCS

 Prime Power

250KW/312KVA

Rated Voltage

400/230V

Frequency

50/60Hz

Power Factor

0.8(lagging)

The regulating rate of steady voltage

≤±0.5%

The regulating rate of instantaneous voltage

≤-15%/ +20%

The time of steady voltage

≤1.5sec

The waving rate of voltage

≤1.0%

The regulating rate of steady frequency

≤3%

The regulating rate of instantaneous frequency

≤±10%

The time of steady frequency

3sec

Dimension (L×W×H) (mm)

3000*1000*1700

Genset weight (kg)

2100

Diesel Engine

Brand

 Chinese Yuchai

Model

YC6MK420L-D20

Number of Cylinders

6

Rotating Speed

1500RPM

Cycle

Four stroke

Type

waste gas turbine boost,direct spurting type

Bore×Stroke(mm)

116*136

Displacement(L)

8.7

Lubricating Capacity(L)

28.3

Speed Governor

Electrical

Cooling System

Water-cooled

Speed Stability (%)

≤5%

Fuel Consumption at 100% Load

220g/kw.h

Starting Method

DC24V Electrical starting

Alternator

Brand

Stamford

Model

UCI 274K

Number of Phase

3

Connecting Type

Three Phase and Four Lines

Number of Bearing

1

Grading Protection

IP23

Altitude

≤1000m

Exciter Type

Brushless (AVR automatic voltage regulating)

Insulation Class

H degree

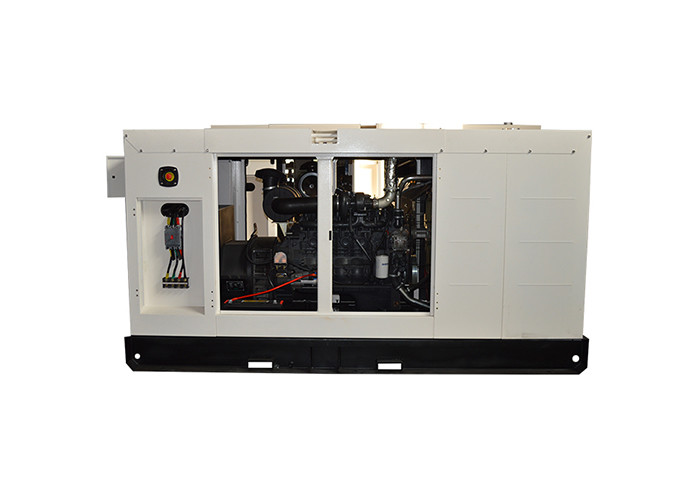

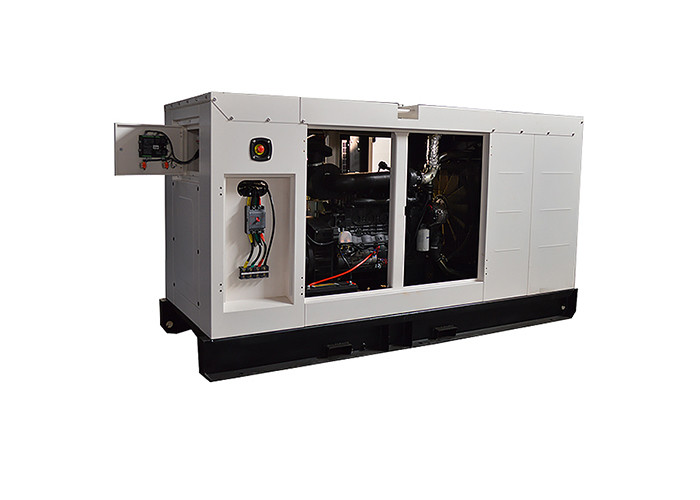

The components of the genset

(1)  Yuchai Diesel Engine;        (2) Stamford  Alternator;     (3) Control Panel

Control Panel

The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.



250 kw Industrial Diesel Generator Cummins Engine 275 kw Standby Generating 0

Heavy duty world class brand  industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards



250 kw Industrial Diesel Generator Cummins Engine 275 kw Standby Generating 1

Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!
