Standby 125kva Silent Generator Set Lovol 1006TAG Motor Auto Start DSE Controler
FOTON LOVOL SILENT TYPE GENERATOR SPECIFICATION:
| Genset model | Engine brand | Prime power KW KVA |
Standby power KW KVA |
Engine model | Fuel Consumption | ||
| GP25LV | Lovol | 20 | 25 | 22 | 28 | 1003G | 5L/hr |
| GP30LV | Lovol | 24 | 30 | 26 | 33 | 1003G | 6L/hr |
| GP38LV | Lovol | 30.4 | 38 | 33 | 42 | 1003TG | 7L/hr |
| GP40LV | Lovol | 32 | 40 | 35 | 44 | 1003TG | 8L/hr |
| GP40LV | Lovol | 32 | 40 | 35 | 44 | 1004G | 8L/hr |
| GP50LV | Lovol | 40 | 50 | 44 | 55 | 1004TG | 10L/hr |
| GP60LV | Lovol | 48 | 60 | 53 | 66 | 1004TG | 10L/hr |
| GP73LV | Lovol | 58.4 | 73 | 64 | 80 | 1004TG | 12L/hr |
| GP80LV | Lovol | 64 | 80 | 70 | 88 | 1006TG1A | 17L/hr |
| GP100LV | Lovol | 80 | 100 | 88 | 110 | 1006TG2A | 20L/hr |
| GP120LV | Lovol | 96 | 120 | 106 | 132 | 1006TAG | 22L/hr |
| GP138LV | Lovol | 110 | 138 | 121 | 152 | 1006TAG | 27L/hr |
Lovol silent generator 100kva specification:
| Rated power(Kw/kva) | 80/100 | |
| Frequency(Hz) | 50 | |
| Pahse | 3 | |
| Voltage(V) | 220/380 | |
| Current(A) | 152 | |
| Fuel capacity(L) | 510 | |
| Fuel consumption(L/Hour) | 22 | |
| Dimension (mm) | L | 3000 |
| W | 1100 | |
| H | 1750 | |
| Weight(kg) | 2320 | |
| Noice level for silent type(Db/7m) | 65 | |
Lovol diesel engine specification:
| Item No. | 1004G | 1004TG | 1006TG1A | 1006TG2A | 1006TAG |
| Speed - rpm | 1500/1800 | ||||
| Cylinder number | 4 | 4 | 6 | 6 | 6 |
| Rated power - kW | 40/44 | 65.7/75.6 | 84.3/97.6 | 92.3/108.4 | 121/134 |
| Max. power - kW | 44/48 | 72.3/83.2 | 92.7/107.3 | 102/119.2 | 134/147 |
| Fuel consumption - g/kW.h | ≤210 | ≤205 | ≤205 | ≤205 | ≤205 |
| Net weight - kg | 540 | 550 | 710 | 710 | 710 |
| Dimension - mm | 1253x706x946 | 1484x740x1107 | 1600x800x1064 | ||
| Cylinder Bore x Stroke - mm | 100x127 | 100x127 | 100x127 | 100x127 | 100x127 |
| Displacement - L | 3.99 | 3.99 | 5.99 | 5.99 | 5.99 |
| Max. ambient temperature | 50 ℃ | ||||
| Speed governing system type | Mechanical | Electronic - GAC | |||
| Speed governing rate | ≤5% | ≤5% | ≤5% | ≤5% | ≤1% |
| Configuration | in-line, direct injection, water cooled | ||||
| Rotation of crankshaft | Counter-clockwise - viewed from flywheel side | ||||
| Aspiration | Natural | Turbocharged | Turbo & A-A intercooled | ||
Description:
1. Original FOTON Lovol diesel engines
2. Alternator: Italy Mecc alte / Stamford
3. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing.
4. ATS cabinet
5. Type: Silent type, weather proof, Trailer type
Applications:
1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake
Competitive Advantage:
1. User friendly with low emissions
2. More power reserve, better performance
3. Fast delivery. Big quantity of Engines in stock.
4. Good parts commonality
5. Original FOTON Lovol engine , good quality , good price.

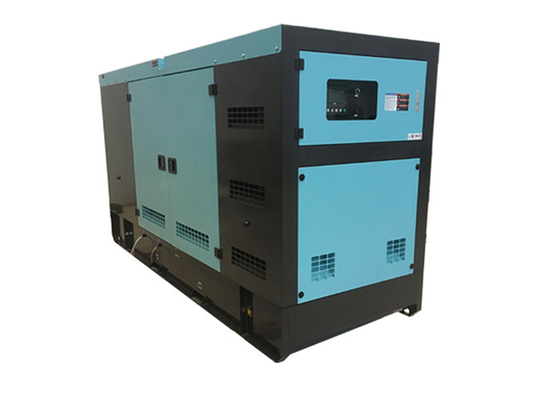

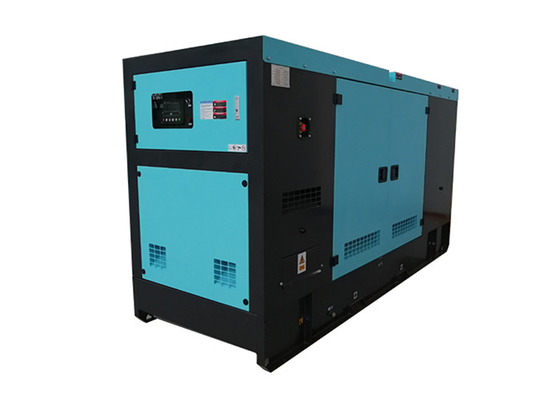

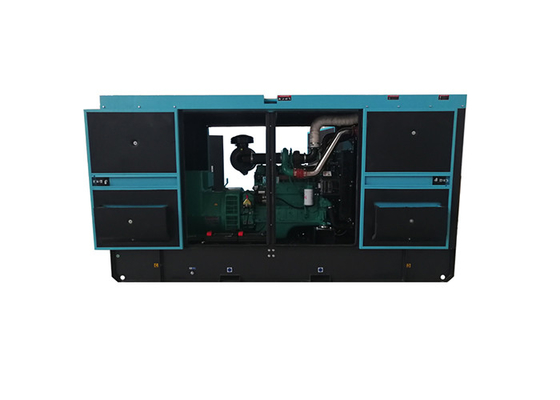

Lovol Foton Silent generators photos:
