50kw Electric Cummins Diesel Generators set Soundproof Generators

  • img.alt
  • img.alt
Place of Origin Jiangsu of China
Brand Name POWER FRIEND
Certification ISO,CE Certification
Model Number PF-DC63
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 300 Set / Month
Product Details
Output Power 50kw Frequency 50/60HZ
Voltage 220v - 690v Optional Engine Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional
Alternator Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional Controller Deepsea, Smartgen, Harsen For Optional
MCCB ABB Or Delixi Cooling System Water Cooled
Genset Type Open Type, Silent Type, Container Type, Trailer Type For Optional ATS Optional
High Light

cummins diesel genset

,

emergency diesel generator
Leave a Message
Product Description

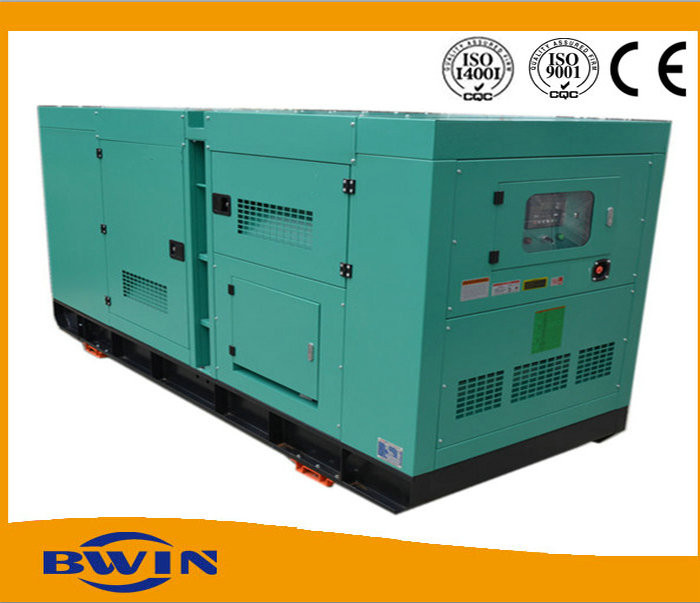

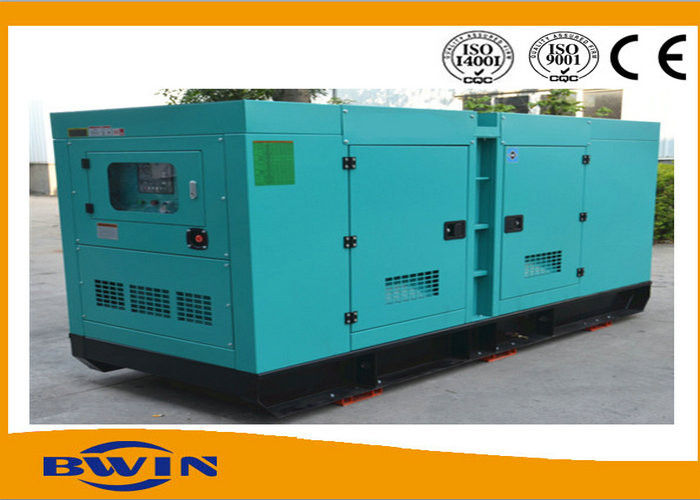

50kw Electric Cummins Diesel Generators set Soundproof Generators



Prime Power

        63/50 (KVA/KW)

Standby Power

        70/55 (KVA/KW)

 Freqency

50HZ

Phase Number

3

Power factor

0.8 COSØ

Rated Voltage

400/230V

Net Weight

        1070KG

Dimention

1822*810*1370 mm(length*width*height)

Engine Mode

Cummins   4BTA3.9-G2

Engine Speed

1500RPM

Fuel Comsuption

12.5 L/H

Cylinder Number

4

Bore/Stroke

102*120 mm

Capacity

8.3 L

Engine Air Flow

135.6m3/min

Exhaust Gas Flow

9.96 m3/min

Exhaust Gas Temperature

475 °c

Total oil capacity

11 L

Total Coolant Capacity

28 L

Alternator model

       Leroy Somer LSA44.2L65/Stamford BCI224F

Starting Mode

24V Electronic

Run Time (50% Load)

10-12 hours

Coupling

SAE Disc-coupling

Phase/Poles

3 Phase 4 Wire

Excitation

Brushless,self-excited, AVR regulation

Insulation System

Class H

Protection Class

IP23



Cummins / Stamford Genset Features:

1. Engine: Cummins industrial diesel engine

2. Heat Dissipation: Radiator 40°C max, fans are driven by belt, with safe guard

3. Protective Operation: Choice of manual/auto and AMF control panels and protection systems

4. Control Panel: Digital auto-start LED panel

5. Shakeproof: Anti Vibration Suspension Absorber

6. Safe Filter: Dry type air filter, fuel filter, oil filter

7. Breaker: Mould case circuit breaker

8. Power: 24V DC start motor and storage battery

9. Nozzle: Ripple flex exhaust pipe, exhaust siphon, flange, and muffler



50kw Electric Cummins Diesel Generators set Soundproof Generators 0

50kw Electric Cummins Diesel Generators set Soundproof Generators 1

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running

automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional.



50kw Electric Cummins Diesel Generators set Soundproof Generators 2



50kw Electric Cummins Diesel Generators set Soundproof Generators 3





Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets.

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours



If have any questions, please contact us. Your inquiry would be appreciated.
