85kva FAWDE Soundproof Diesel Generator Super Silent Diesel Engine Genset

Place of Origin WUXI, CHINA
Certification ISO9001/ ISO14001 / CE / SONCAP
Model Number PF-FW94
Minimum Order Quantity 1 set
Price 5,434.00 - 6,958.00
Packaging Details poly wooden case or plastic poly
Delivery Time 25 work days
Supply Ability 250 sets / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model PF-FW94 Certificate CE/ISO9001
Power Factor 0.8 Genset Structure SILENT
Insulation Class H Protection Class IP23
Construction Type SAE Disc-coupling Displacement 8.7L
Warranty 12 Months/1000 Hours Engine Model CA4DF2-12D
Speed 1500/1800rpm
High Light

power generating set


silent diesel generators

Leave a Message
Product Description

85kva FAWDE Soundproof Diesel Generator Super Silent Diesel Engine Genset


Specification of PowerFriend Genset
Genset Genset Model PF-FW94
Prime at 50HZ, 40℃ ambient 68KW 85KVA
Standby at 50HZ, 40℃ ambient 75KW94KVA
Rated Gen-set output 230/400V 50Hz
Dimension (L×W×H)mm Open: 2100*850*1250,
Silent: 2800*1100*1450
Weight Open: 1300kg, Silent: 1800kg
Fuel consumption 100% prime load 18.8L/hr
Rated currency 122A
Circuit Breaker Delixi/CHINT or Customized
Base fuel tank At least for 8-hour contunuous running
Controller Deepsea/ ComAp/ Smartgen
Noise Level/dBA @7m(Silent type only) 65
Engine Engine Brand FAWDE
Engine Model CA4DF2-12D
Governor/Class Electronic
Cylinder NO. & Build 40℃
Cooling mode Line
Bore and stroke 110×125 mm
Compression ratio 17:01
Displacement 4.75
Engine Prime Power at 1500rpm 84KWm
Engine Standby Power at 1500rpm 92KWm
Alternator Alternator Brand Stamford type, brushless, 100% copper
Insulation class H
Protection class IP23








1. Power Range: 0-150KVA

2. Engine: FAWDE

3. Alternator: Genuine Stamford, Marathon, Meccalte, etc

4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing,

5. ATS is optional

6. Type: Open type, Soundproof type, Trailer type, Container type, etc

7. Color: Can be customized




1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6. Standby power or main power, indoor or outdoor using.


Competitive Advantage:


1. Full power range.

2. All genuine engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.

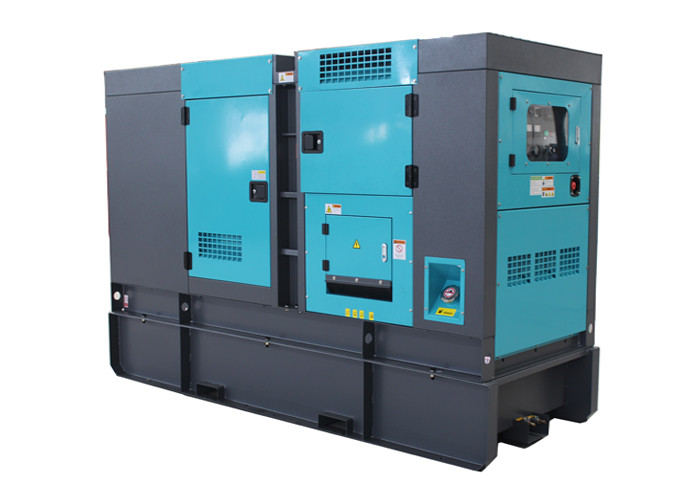

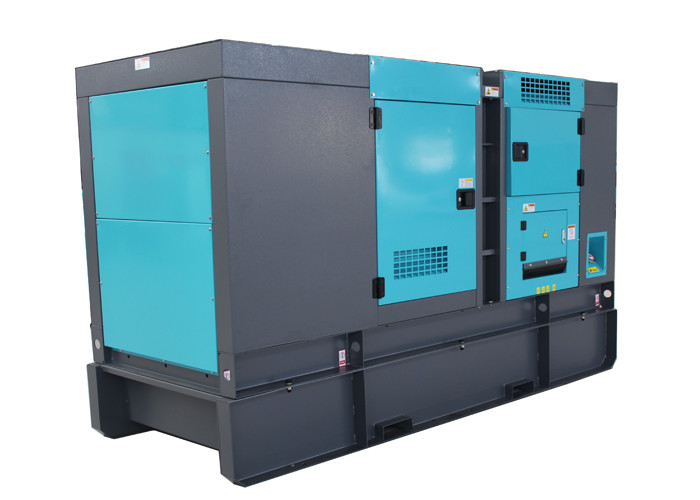

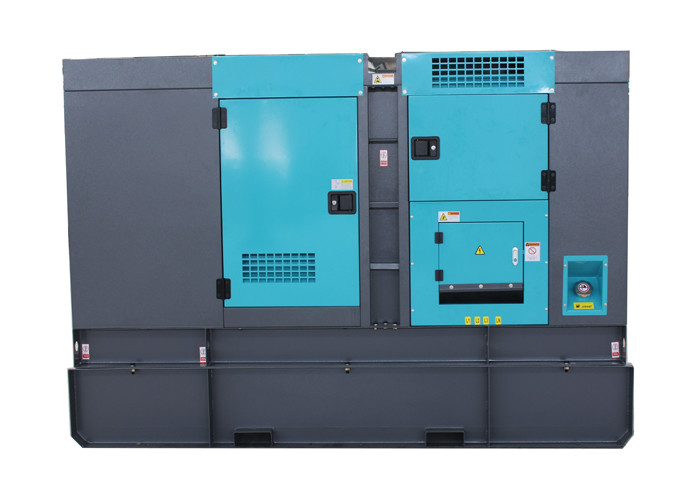

photos of the generator set:


85kva FAWDE Soundproof Diesel Generator Super Silent Diesel Engine Genset 085kva FAWDE Soundproof Diesel Generator Super Silent Diesel Engine Genset 1



85kva FAWDE Soundproof Diesel Generator Super Silent Diesel Engine Genset 2


Packaging & Shipping

Delivery Time: 30 days after deposite

Package: nude packing or plywooden case

high quality diesel genset with 20-150kva engine series power.jpg



Company Information


JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.

Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients. We supply Generator Sets from 2kva to 3000kva.









If have any questions, please contact us. Your inquiry would be appreciated.
