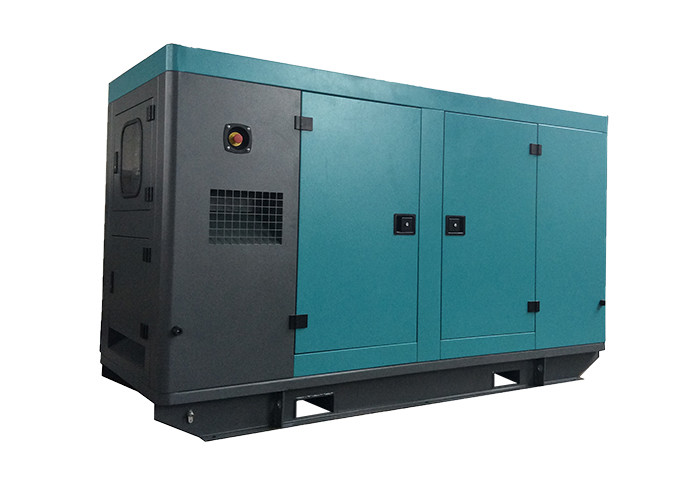

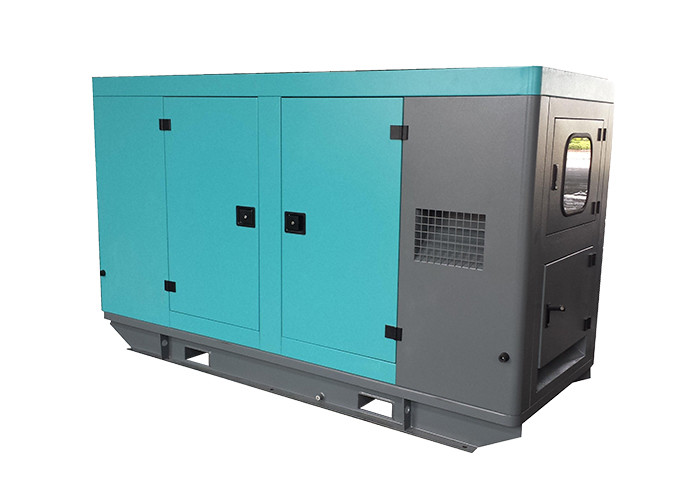

High Performance Silent Generator Set 68KW 85KVA Electric Start
Product describition
| SPECIFICATIONS | ||
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | GP94FWS |
| 1.2 | Prime at 50HZ, 40℃ ambient | 68KW 85KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 75KW94KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | Open: 2100*850*1250, Silent: 2800*1100*1450 |
| 1.7 | Weight | Open: 1300kg, Silent: 1800kg |
| 1.8 | Fuel consumption 100% prime load | 18.8L/hr |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 1.10 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | FAWDE |
| 2.2 | Engine Model | CA4DF2-12D |
| 2.3 | Governor/Class | Electronic |
| 2.4 | Cylinder NO. | 40℃ |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 24V, electric |
| 2.8 | Air intake type | Turbocharged&Intercooling |
| 2.9 | Cooling mode | Radiator cooled (enclose water) |
| 2.10 | Bore and stroke | 110×125 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 4.75 |
| 2.13 | Engine Prime Power at 1500rpm | 84KWm |
| 2.14 | Engine Standby Power at 1500rpm | 92KWm |
| 2.15 | Lubrication oil capacity | 16L |
| 2.16 | Oil consumption | 0.06 |
| 2.17 | Dry weight of base | 480Kg |
| 2.18 | Dry weight of Gen Pac | 550Kg |
| 2.19 | Overall dimension(G.P) | 1300x860x938(mm) |
| 2.20 | Overall dimension(base) | 970x630x930(mm) |
| 2.21 | 27℃ air consumption ( m³/ min) | 6 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR | ||
| 3.1 | Alternator Model | Stamford/UCI224G |
| 3.2 | Alternator Type | A.C. síncrono |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Sin escobillas auto emocionante |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 123A |
| 3.12 | Efficiency | 0.903 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 370kg |
Why choose us:
Description:
1.PowerFriend is devoted to the R&D and manufacturing of diesel generator sets since 2010.
2.The marketing center is located in Wuxi Steel Union governor's buildinghas .
3.PowerFriend is maintaining long term strategic friendship cooperation with domestic and abroad famous manufactures of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroysomer, Stamford, and Marathon etc.
GPRO is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, GPRO Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generaotr set from GPRO have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.
Package & Delivery
Package: Plastic Package.
Payment: By 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 %L/C at sight.
Delivery: 25 days after we get the down payment.
Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of12 months from date of despatch or 1000 running hours from date of commissioning whicheverdate occurs the sooner.
