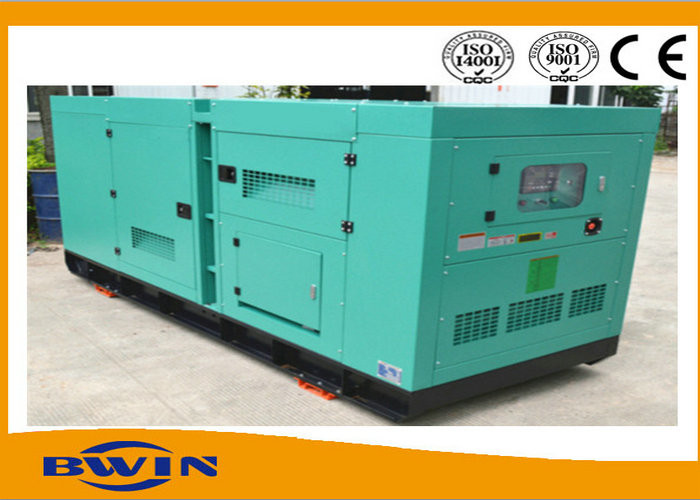

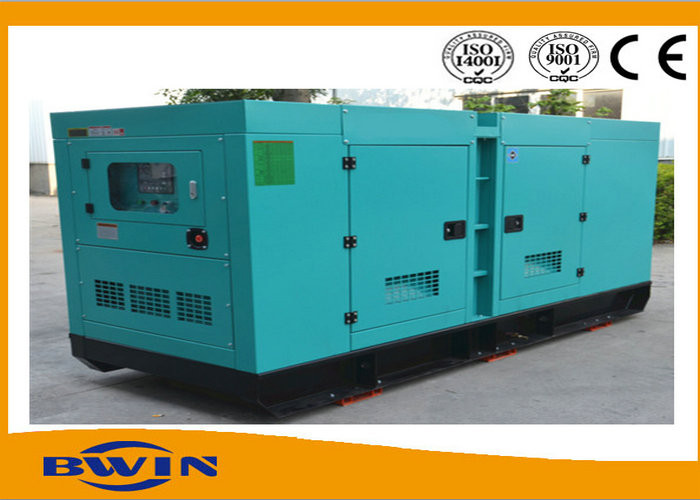

Cummins water cooled diesel generator 6CTAA8.3-G2 160kw 200kva
Model: PF-DC200
|
Prime Power |
200/160 (KVA/KW) |
|
Standby Power |
215/172 (KVA/KW) |
|
Freqency |
50HZ |
|
Phase Number |
3 |
|
Power factor |
0.8 COSØ |
|
Rated Voltage |
400/230V |
|
Net Weight |
1700 KG |
|
Dimention |
2394*980*1636mm(length*width*height) |
|
Engine Mode |
Cummins 6CTAA8.3-G2 |
|
Engine Speed |
1500RPM |
|
Fuel Comsuption |
45 L/H |
|
Cylinder Number |
6 |
|
Bore/Stroke |
114*135 mm |
|
Capacity |
8.3 L |
|
Engine Air Flow |
240 m3/min |
|
Exhaust Gas Flow |
32.58 m3/min |
|
Exhaust Gas Temperature |
640 °c |
|
Total oil capacity |
20 L |
|
Total Coolant Capacity |
31 L |
|
Alternator model |
Leroy Somer LSA46.2L6/Stamford 274H |
|
Starting Mode |
24V Electronic |
|
Run Time (50% Load) |
10-12 hours |
|
Coupling |
SAE Disc-coupling |
|
Phase/Poles |
3 Phase 4 Wire |
|
Excitation |
Brushless,self-excited, AVR regulation |
|
Insulation System |
Class H |
|
Protection Class |
IP23 |
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
