Cummins Diesel Genset 30kw - 200kw power Deepsea / Smartgen / Harsen Controller

Cummins Diesel Genset 30kw - 200kw power Deepsea / Smartgen / Harsen Controller

  • High Light

    cummins power generator

    ,

    emergency diesel generator

  • Output Power
    48KW 60KVA
  • Frequency
    50/60HZ
  • Voltage
    220v - 690v Optional
  • Engine
    Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional
  • Alternator
    Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
  • Controller
    Deepsea, Smartgen, Harsen For Optional
  • MCCB
    ABB Or Delixi
  • Cooling System
    Water Cooled
  • Genset Type
    Open Type, Silent Type, Container Type, Trailer Type For Optional
  • ATS
    Optional
  • Place of Origin
    Jiangsu of China
  • Brand Name
    GPRO
  • Certification
    ISO,CE Certification
  • Model Number
    PF-DC66
  • Minimum Order Quantity
    1 SET
  • Price
    Negotiation
  • Packaging Details
    Plywood or Plastic packing
  • Delivery Time
    15 - 20 working day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    300 Set / Month

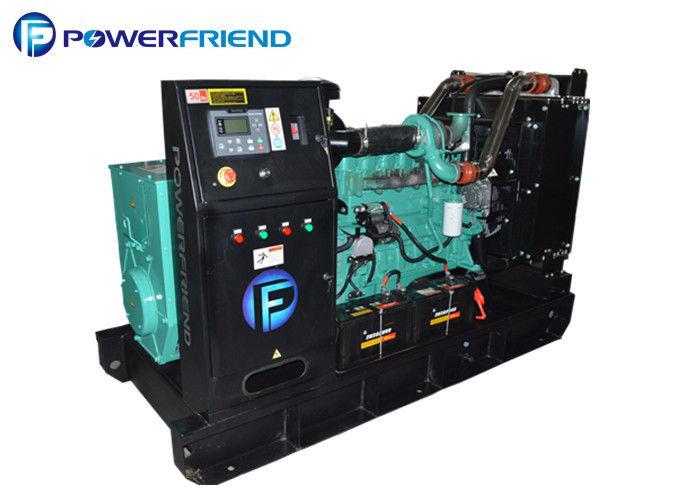

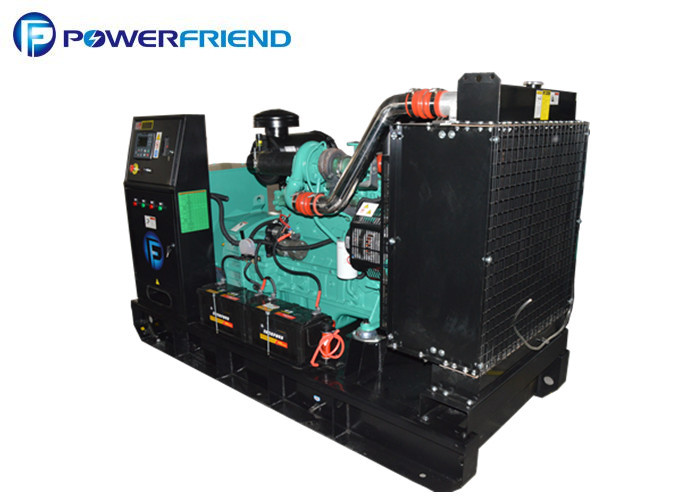

Cummins Diesel Genset 30kw - 200kw power Deepsea / Smartgen / Harsen Controller

Cummins diesel generator 30kw - 200kw power generating high quality

1. Specification of Genset
Gensets Model PF-DC66
Prime Power 48kw/60va
Rated Voltage 380/220V
Rated Frequency (HZ) 50/60hz
Rated Speed 1500rpm/1800rpm
Power Factor 0.8(lagging)
Dimensions (mm) (L×W×H) 1710x700x1340
Genset Weight (kg) 960
2. Specification of Diesel Engine
Engine Brand Cummins
Engine Model 4BTA3.9-G2
Number of Cylinders 4
Cylinder Arrangement Vertical in-line
Cycle Four stroke
Aspiration Turbocharged, Water cooling
Fuel System PT type fuel pump, EFC
Bore×Stroke (mm×mm) 159 x 159
Displacement (Liter) 50.3
Compression Ratio 13.9:1
Speed Governor Electronic
Cooling System Forced Water Cooling Cycle
Total lubrication System Capacity (L) 95
Fuel Consumption at 100% Load (L/H) 57
Starting Method DC24V electrical starting
3. Specification of Alternator
Alternator Brand Stamford / Meccalte
Alternator Model 224E
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP21
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class H
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
4. Specification of Control Panel (with Deepsea Controller)
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure, high water temperature,over speed, over load protection function.
The features of Deepsea controller:
Deepsea controller is a new generation automatic control module for single genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of genset for user or special assembly factory.



ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional

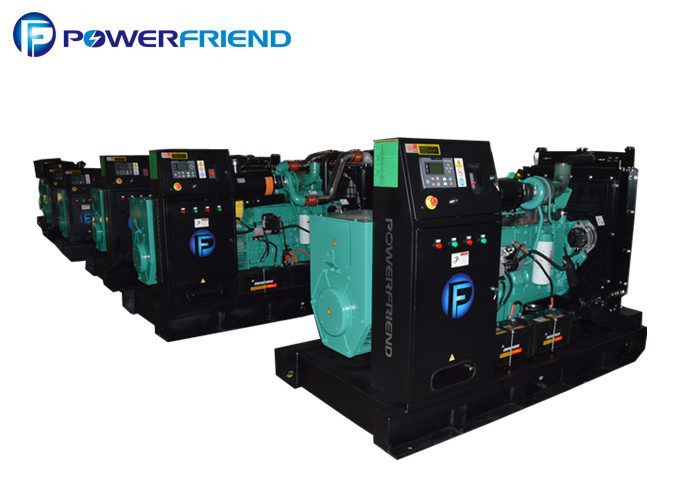

Cummins Diesel Genset 30kw - 200kw power Deepsea / Smartgen / Harsen Controller 0

Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!
