Vertical 80KW 100KVA Silent Diesel Power Generator With SC4H160D2 Model

1 set
MOQ
Negotiation
Price
Vertical 80KW 100KVA Silent Diesel Power Generator With SC4H160D2 Model
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 100KVA/80KW
Standby Power: 110KVA / 88KW
Current: 160A
Voltage: 220/380V
Engine: SDEC SC4H160D2
Alternator: Mecc Alte / Stamford / Chinese Brand
Controller: Smartgen / DeepSea/ Harseen With AMF Function
MCCB: Delixi / ABB 3 Pole Or 4 Pole
Sound Level/db: 65dB 7 Meter
Warranty: 1 Year Or 1000 Hours
ATS: Aiskai 160A 4 Pole
High Light:

industrial diesel generators

,

diesel genset

Basic Infomation
Place of Origin: WUXI city ,China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP110SDS
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 25 days
Supply Ability: 500 sets / Month
Product Description

Vertical 80KW 100KVA Silent Diesel Power Generator With SC4H160D2 Model


SDEC POWER DIESEL GENERATOR SPECIFICATION:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP110SDS
1.2 Prime at 50HZ, 40℃ ambient 80KW 100KVA
1.3 Standby at 50HZ, 40℃ ambient 88KW 110KVA
1.4 Rated Gen-set output 230/400V  50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 2182×914×1482mm
1.7 Weight 1320kg
1.8 Fuel consumption 100% prime load 22.2L/H
1.9 Total heat radiated to ambient 39.0KW(Prime), 46.5KW(Standby)
1.10  Structure of Gen-set

The Gen-set adopt integrative structure,

engine is fix on high strength steel

 basic frame, anti vibration instrument

 between the engine and basic frame,

 cooling fan have protecting cap,

control cabinet and circuit

 breaker installed on Gen-set

1.11  Control system (Optional)

Basic control panel or Advanced

control panel with automatically

start-up function and other function

2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand SDEC
2.2 Engine Model SC4H160D2
2.3 Governor/Class Mechanical/Electronical
2.4 Cylinder NO. 6
2.5 Engine build Vertical
2.6 Fuel spray pattern PB direct injection
2.7 Aspiration Turbocharged
2.8 Cooling mode Radiator cooled (enclose water)
2.9 Bore and stroke 100×127 mm
2.10  Compression ratio 17.5:1
2.11 Displacement 5.99L
2.12 Engine Prime Power at 1500rpm 92.3KWm
2.13 Engine Standby Power at 1500rpm 102.0KWm
2.14 start-up method 12V, electric
2.15 Battery capacity 120A/hr
2.16 Starting/Min temperature -15℃
2.17 Lubircating oil consumption 0.111L/h
2.18 Lubrication oil capacity 16.1L
2.19 Coolant capacity – radiator and engine (40℃) 27.7L
2.20  Exhaust temp - full load prime 550℃
2.21 Exhaust gas flow – full load prime 974m3/h
2.22 Exhaust gas back pressure max 76mm/Hg
2.23 Air flow - radiator (40℃  ambient) 2.3m3/s
2.24 Pusher fan head ( duct allowance ) 40 ℃ 13mmH2O
2.25 Air intake – engine - full   load prime 344.4m3/h
2.26 Standard Air intake temp 25℃
2.27 Fuel type #0 Diesel (Natural temperature)
2.28 Filter system

Adopt  whole  changeable

 lubricating  oil,fuel

  filter and air filter

2.29 Exhaust system

Adopt  industrial  high

 efficiency  silencer

and flexible bellows

2.30  Engine derating - altitude

Above the sea-level

1525m high, a fall of 4%

from a rise of 300m.

2.31 Engine derating- temperature

Above the ambient temperature

 40℃ high, a fall of 2%

 from a rise of 11%.

3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model G274C
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10  Phase & wires 3 phase 12 wires
3.11 Rated currency 144.4A
3.12 Efficiency 90.30%
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃

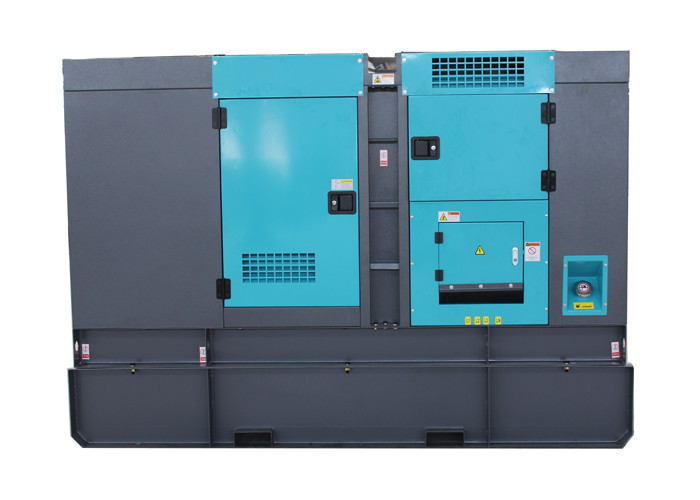

Vertical 80KW 100KVA Silent Diesel Power Generator With SC4H160D2 Model 0

Description:



1. Original SDEC ShangHai motor

2. Alternator: Brushless

3. Controller: UK Deepsea / Smartgen /Harseen

4. Options: remote controller, synchronizing.

5. With ATS / Battery Charger

6. Type: Soundproof type, weather proof, Trailer type

7. Color: Any color

8. Support OEM



Applications:



1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow





Competitive Advantage:



1. Low fuel consumption

2. Good quality engine and alternator

3. Fast delivery. Big quantity of Engines in stock.

4. The generator set is mounted on a heavy duty fabricated steel skid type base–              frame with anti vibration mounting pads.

5. Use high standard of sponge to make soundproof.

6. The canopy design is user friendly, and easy for maintenance.

7. Pre and after sales service is provided.

8. 365 days, 24 hours after sale service

9. Economy / Competitive price

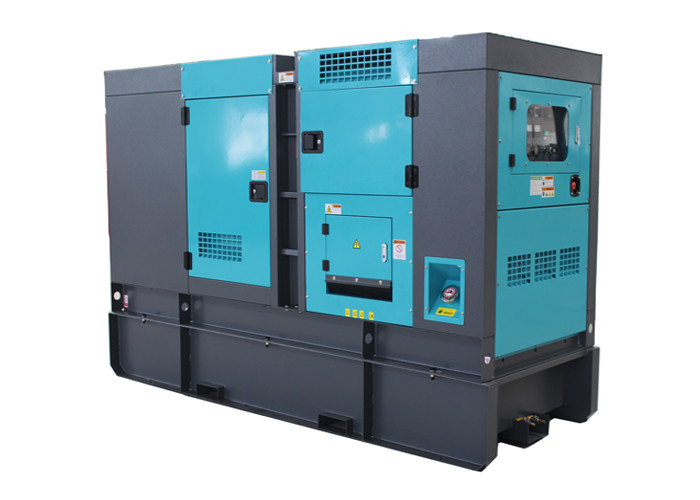

Vertical 80KW 100KVA Silent Diesel Power Generator With SC4H160D2 Model 1

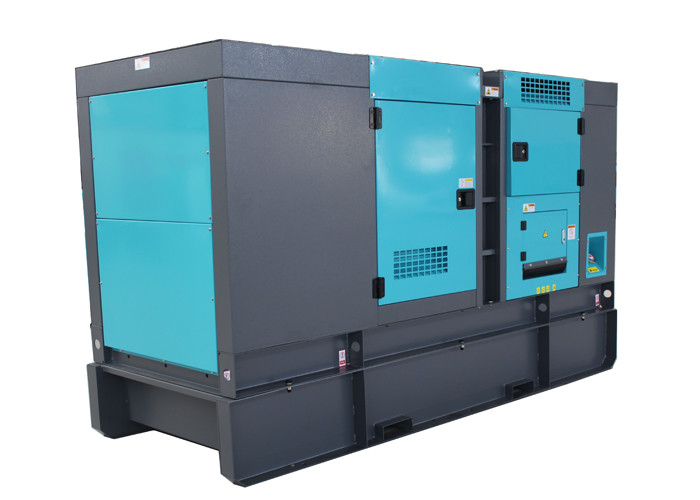

Vertical 80KW 100KVA Silent Diesel Power Generator With SC4H160D2 Model 2
