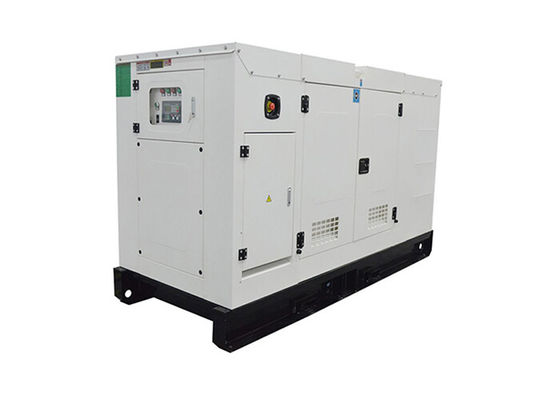

Silent Type 1800 Rpm Diesel Generator Rated Power 125Kva 100Kw IVECO Engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent | Frequency | 50Hz/60Hz |
|---|---|---|---|
| Engine | IVECO/CUMMINS/PERKINS/DOOSAN/FAWDE | Alternator | STAMFORD TYPE |
| Control Panel | Smartgen 6110 | Voltage | 220V/380V |
| Current | 189A | Phase | 3 Phase / 1 Phase |
| RPM | 1500/1800 | Prime Power | 100kw/125kva |
| High Light | emergency diesel generator,silent diesel generator set |
||
Product Description
Silent Type 1800 Rpm Diesel Generator Rated Power 125Kva 100Kw IVECO Engine
Product Description
| Technical specification | |
| Genset Model | PF-IV138S |
| Prime Power | 100KW/125KVA |
| Standby Power | 110KW/138KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 180.4A |
| Genset Structure | SILENT |
| Dimension | 3400×1120×1785mm |
| Net Weight | 2900KG |
| Noise level | 72 dba @ 7 meters |
| Engine Model | FPT IVECO/NEF67SM1 |
| Engine Features | 4-cylinder,4 stroke,Turbocharged |
| Bore * Stroke | 104mm × 132mm |
| Displacement | 6.7L |
| 12-hour Power(kw) | 110KW/1500 |
| Fuel Consumption L/H | 29.3L/H |
| Compression Ratio | 17.5:1 |
| Governor type | Mechnical |
| Alternator Model | MECC ALTE/ECP34-1L/4 |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler Panel | Deepsea/ ComAp/ Smartgen |
| Packaging & Shipping |
| Trade shows |
| Our services |
- After-sales:
Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours.
- Guarantee:
Warraty period is one year or 1000 hours (depends on which occurs first ). If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.
- Free training:
We can professionally arrange experienced engineers to provide users with free training in our factory . Certainly , we also provide the paid training of customers’ site.
| FAQ |
Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.
Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
