12 Cylinder Water Cooled 1200kw 1500kva Container Diesel Generator Set

  • 12 Cylinder Water Cooled 1200kw 1500kva Container Diesel Generator Set
  • 12 Cylinder Water Cooled 1200kw 1500kva Container Diesel Generator Set
  • 12 Cylinder Water Cooled 1200kw 1500kva Container Diesel Generator Set
Place of Origin WUXI
Brand Name POWER FRIEND
Certification ISO9001/ISO14001/CE/PVOC
Model Number PF-CC1650S
Minimum Order Quantity 1 set
Price negotiate
Packaging Details standard packing
Delivery Time 30 days
Payment Terms L/C, T/T
Supply Ability 50 sets / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Rate 1200KW Frequency 50HZ／60HZ
Engine Model KTA50-GS8 Voltage 230／400
Alternator STAMFORD /PI734C Warranty 1 Year Or 1000 Hours
Phase Three Cooling System Water Cooling
Type Silent Fuel Consumption 311L/H
Leave a Message
Product Description

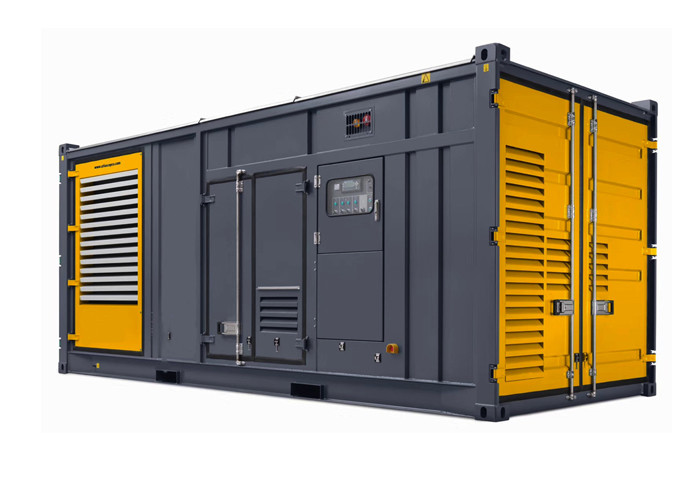

12 Cylinder Water Cooled 1200kw 1500kva Container Diesel Generator Set


Product Description:



Genset Model PF-CC1650S
Prime Power 1200KW/1500KVA
Standby Power 1320KW/1650KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 2165A
Genset Structure SILENT
Dimension 12192×2435×2896mm
Net Weight 13000KG
Noise level 86dB at 7 meters
Engine Model KTA50-GS8
Engine Features 12-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 159mm × 159mm
Displacement 50.3L
12 HOURS Power(kw) 1287KW/1500
Fuel Consumption L/H 311L/H
Compression Ratio 14.9:1
Governor type ELECTIC
Alternator Model STAMFORD /PI734C
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Smartgen 6120 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator

12 Cylinder Water Cooled 1200kw 1500kva Container Diesel Generator Set 0

12 Cylinder Water Cooled 1200kw 1500kva Container Diesel Generator Set 1



Description:

Diesel engine is an internal -combustion engine, in which air is compressed to a sufficiently high temperature to ignite diesel fuel injected into the combustion chamber. It can be used to power diesel generator , water pump, tiller etc. Since the future emission standard demands, we are always improving the fuel and engine structures to reduce the impact on environment. "Green Engine" is our target. We always pay more attention to climate protection and environmental.



Package & Payment & Delivery Date



Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 %L/C at sight.

Delivery: 25 days after we get the down payment.

Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of12 months from date of despatch or 1000 running hours from date of commissioning whicheverdate occurs the sooner.



FAQ:



1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
2. What is your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
3. What is your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
4. Can the generators be customized?
Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
5. Can you use our logo?
Yes. For mass orders, we can use customer's logo instead of ours.
