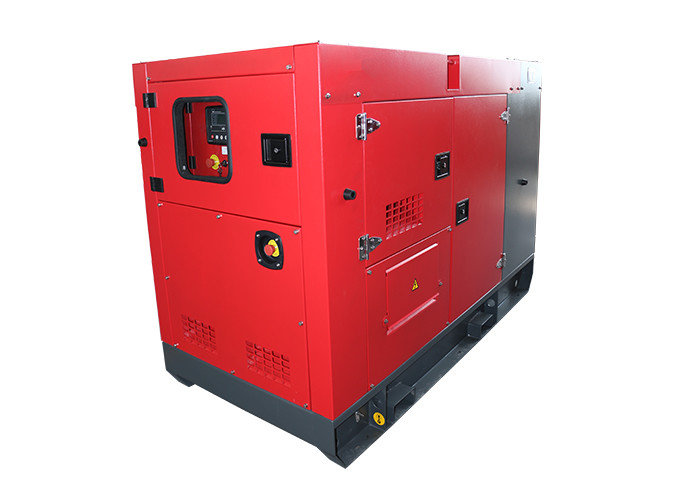

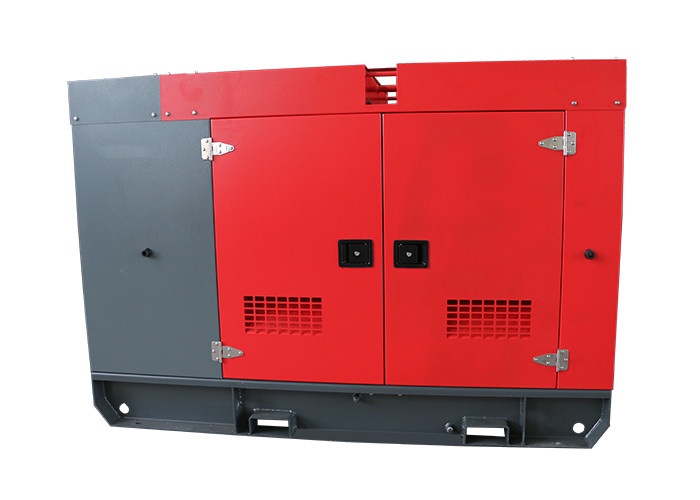

Brushless Self Exciting 25KW 30KVA 4 Cylinder Fawde Diesel Generator
-
Engine BrandFAWDE
-
Prime Power25KW 30KVA
-
Genset ModelPF-FW33S
-
Standby Power28KW 33KVA
-
Engine Model4DW92-39D
-
Rated Current(A)45.1 (A)
-
Warranty1 Year Or 1000 Hours
-
CertificatesCE, ISO9001
-
Place of OriginChina（Mainland）
-
Brand NameGPRO
-
CertificationISO9001/ CE
-
Model NumberPF-FW33S
-
Minimum Order Quantity1 set
-
Pricenegotiate
-
Packaging Detailspoly wooden case or plastic poly
-
Delivery Time15 working days
-
Payment TermsL/C, T/T
-
Supply Ability500 sets / Month
Brushless Self Exciting 25KW 30KVA 4 Cylinder Fawde Diesel Generator
Brushless Self Exciting 25KW 30KVA 4 Cylinder Fawde Diesel Generator
Product describition
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | GP-FW33S |
| 1.2 | Prime at 50HZ, 40℃ ambient | 25KW 30KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 28KW 33KVA |
| 1.4 | Rated Gen-set output | 400/230V 50Hz/60HZ |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | Open: 1750*800*1100, Silent: 2300*1120*1200 |
| 1.7 | Weight | Open: 800kg, Silent: 1200kg |
| 1.8 | Fuel consumption 100% prime load | 7 |

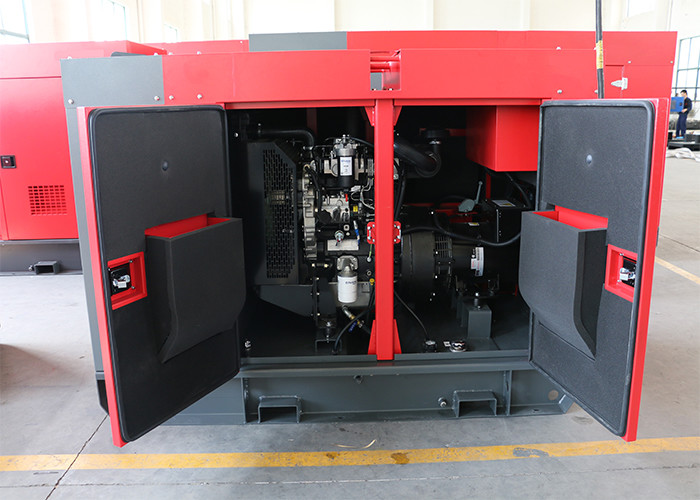

| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 2 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | FAWDE/Xichai |
| 2.2 | Engine Model | 4DW92-39D |
| 2.3 | Governor/Class | Mechanical or Electronic |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 24V, electric |
| 2.8 | Air intake type | Natural |
| 2.9 | Cooling mode | Water Cooling |
| 2.10 | Bore and stroke | 102×118 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 3.86 |
| 2.15 | Lubrication oil capacity | 12.5L |
| 2.16 | Oil consumption | 0.06 |
| 2.21 | 27℃ air consumption ( m³/ min) | 2.6 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR | ||
| 3.1 | Alternator Model | UP184F |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5% |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 45.1A |
| 3.12 | Efficiency | 0.862 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1,NEMA1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 156KG |
Why choose us:
Company Information:
Wuxi Gpro Power Solution Co., Ltd is focus on power generator products and service in China.
Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators.
We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.
1.Gpro is devoted to the R&D and manufacturing of diesel generator sets since 2010.
2.The marketing center is located in Wuxi Steel Union governor's buildinghas .
3.Gpro is maintaining long term strategic friendship cooperation with domestic and abroad famous manufactures of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroysomer, Stamford, and Marathon etc.
Sale service:
Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours.
Guarantee:
Warraty period is one year or 1000 hours (depends on which occurs first ). If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.
Free training:
We can professionally arrange experienced engineers to provide users with free training in our factory . Certainly , we also provide the paid training of customers’ site.
If You Are Interesting In GPRO , Pls Contace Us Freely ,Welcome To Visit GPRO!!
Our products are sold all over the world, you can rest assured.
