40KW Air cooled Deutz Diesel Generator Set Soundproof Generating 50KVA

Place of Origin Jiangsu of China
Brand Name POWER FRIEND
Certification ISO,CE Certification
Model Number PF-D50
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 300 Set / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Power 40KW 50KVA Frequency 50/60HZ
Voltage 220v - 690v Optional Engine Deutz
Alternator Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional Controller Deepsea, Smartgen, Harsen For Optional
MCCB ABB Or Delixi Cooling System Water Cooled
Genset Type Open Type, Silent Type, Container Type, Trailer Type For Optional ATS Optional
High Light

emergency diesel generator

,

silent diesel generator set

Leave a Message
Product Description

40KW Air cooled Deutz Diesel Generator Set Soundproof Generating 50KVA



Generator Model

PF-D50

Prime power (KW)

50kVA / 40kW

Standby power (KW)

55kVA / 44kW

Engine Data

Engine model

Deutz  F6L912D

Engine filter system

Dry air filter type, Fuel filters, Lube filter

Compress ratio

16:1

Bore * stroke (mm)

105 * 120

100% load fuel consump.(L/h)

11.8

Lubricating oil consump(g/kwh)

Less than 1.36

Exhaust air flow (m3/min)

120

Air consumption (m3/min)

9

Exhaust gas temperature (°C)

500

Oil capacity (L)

120

Alternator Data

Alternator Model

Stamford   UCI224D

Connecting type

3 Phase and 4 Wires, “Y” type connecting

Protection grade

IP22

Insulation class

H/H

Exciter type

Brushless, self-exciting, with AVR

Generator Data

Size(mm)

2400*1000*1300

Weight(kg)

1710

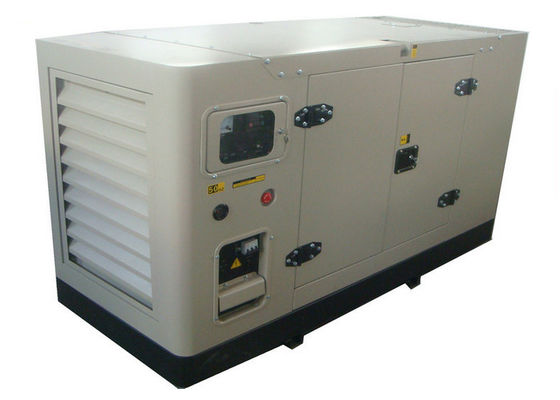

40KW Air cooled Deutz Diesel Generator Set Soundproof Generating 50KVA 0

40KW Air cooled Deutz Diesel Generator Set Soundproof Generating 50KVA 1



40KW Air cooled Deutz Diesel Generator Set Soundproof Generating 50KVA 2




Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card

Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump

Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers

Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours


If have any questions, please contact us. Your inquiry would be appreciated.
