FAWDE Engline 30KW Silent Running Diesel Generators Low Owning And Operating Cost

  • FAWDE Engline 30KW Silent Running Diesel Generators Low Owning And Operating Cost
  • FAWDE Engline 30KW Silent Running Diesel Generators Low Owning And Operating Cost
  • FAWDE Engline 30KW Silent Running Diesel Generators Low Owning And Operating Cost
Place of Origin WUXI, CHINA
Brand Name POWER FRIEND
Certification ISO9001/ ISO14001 / CE / SONCAP
Model Number PF-FW41
Minimum Order Quantity 1 set
Price negotiation
Packaging Details poly wooden case or plastic poly
Delivery Time 25 work days
Supply Ability 250 sets / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model PF-IV440 Prime 30KW 38KVA
Standby 33KW 41KVA Rated Gen-set Output 230/400V 50Hz
Dimension (L×W×H)mm Open: 1800*800*1150, Silent: 2320*1060*1150 Weight Open: 800kg, Silent: 1200kg
Fuel Consumption 100% Prime Load 8.3L/H Controller Deepsea/ ComAp/ Smartgen
Noise Level/dBA @7m(Silent Type Only) 65 Warranty Time 1year/1000hours
High Light

industrial diesel generators

,

diesel genset
Leave a Message
Product Description



Low Owning And Operating Costs Diesel Generator with FAWDE Engline 30KW

Specification of PowerFriend Genset
Genset Genset Model PF-FW41
Prime at 50HZ, 40℃ ambient 30KW 38KVA
Standby at 50HZ, 40℃ ambient 33KW 41KVA
Rated Gen-set output 230/400V 50Hz
Dimension (L×W×H)mm Open: 1800*800*1150,
Silent: 2320*1060*1150
Weight Open: 800kg, Silent: 1200kg
Fuel consumption 100% prime load 8.3L/H
Rated currency 54A
Circuit Breaker Delixi/CHINT or Customized
Base fuel tank At least for 8-hour contunuous running
Controller Deepsea/ ComAp/ Smartgen
Noise Level/dBA @7m(Silent type only) 65

Engine Engine Brand FAWDE
Engine Model 4DX21-53D
Governor/Class Mechanical or Electronic
Cylinder NO. & Build 4
Cooling mode Line
Bore and stroke 102×118 mm
Compression ratio 17:01
Displacement 3.86
Engine Prime Power at 1500rpm 39KWm
Engine Standby Power at 1500rpm 43KWm

Alternator Alternator Brand Stamford type, brushless, 100% copper
Insulation class H
Protection class IP23

Description:



1. Power Range: 0-150KVA

2. Engine: FAWDE

3. Alternator: Genuine Stamford, Marathon, Meccalte, etc

4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing,

5. ATS is optional

6. Type: Open type, Soundproof type, Trailer type, Container type, etc

7. Color: Can be customized



Applications:



1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6. Standby power or main power, indoor or outdoor using.



Competitive Advantage:



1. Full power range.

2. All genuine engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.

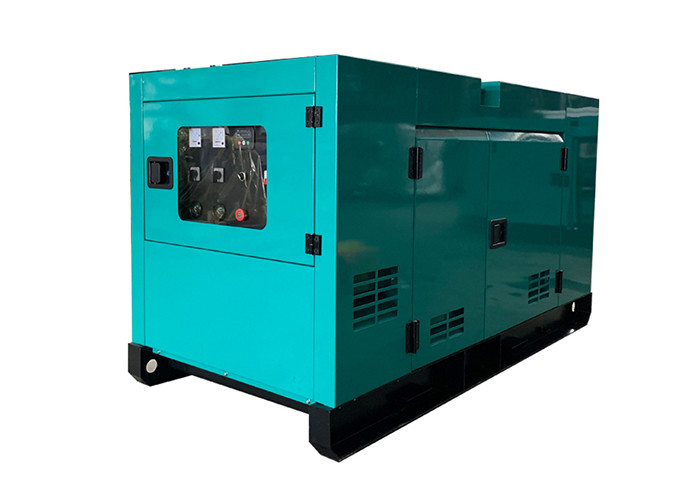

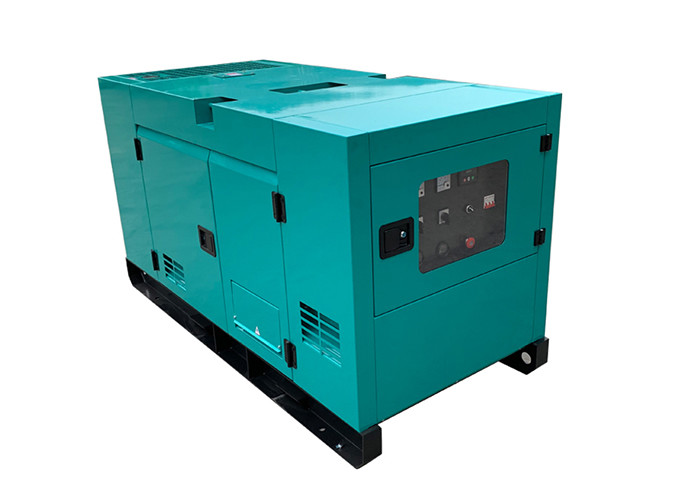

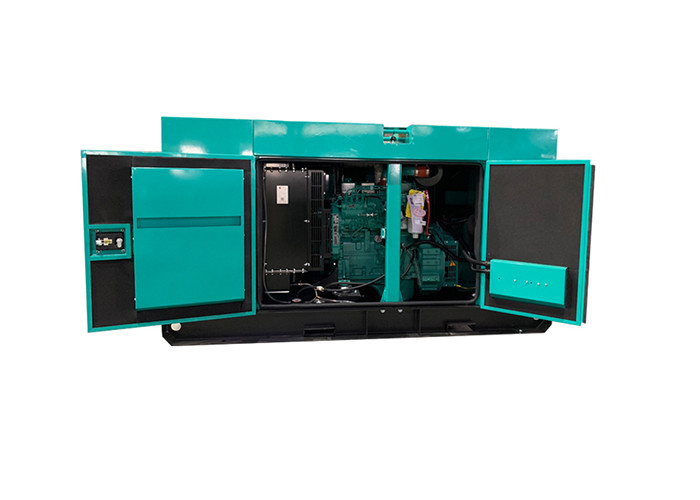

photos of the generator set:



FAWDE Engline 30KW Silent Running Diesel Generators Low Owning And Operating Cost 0

FAWDE Engline 30KW Silent Running Diesel Generators Low Owning And Operating Cost 1

FAWDE Engline 30KW Silent Running Diesel Generators Low Owning And Operating Cost 2



Packaging & Shipping

Delivery Time: 30 days after deposite

Package: nude packing or plywooden case

high quality diesel genset with 20-150kva engine series power.jpg





Company Information



JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.

Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients. We supply Generator Sets from 2kva to 3000kva.

















If have any questions, please contact us. Your inquiry would be appreciated.
