48KW Silent Running Diesel Generators With Electrical Start Relible Cummins Engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 48kw / 60kva | Frequency | 50HZ / 60HZ |
|---|---|---|---|
| Current | 86.6A | Voltage | 220/380V, 230V/400V, 240V/415V |
| Engine | Cummins Engine DCEC | Controller | Smartgen/ DeepSea/ Comap |
| MCCB | 4 Pole | Warranty | 1 Year Or 1000 Hours |
| Alternator | Stafmord/Marathon/Meccalte/PowerFriend | Fuel Tank | At Least 8 Hours Continuous Working |
| High Light | power generating set,silent diesel generators |
||
Product Description

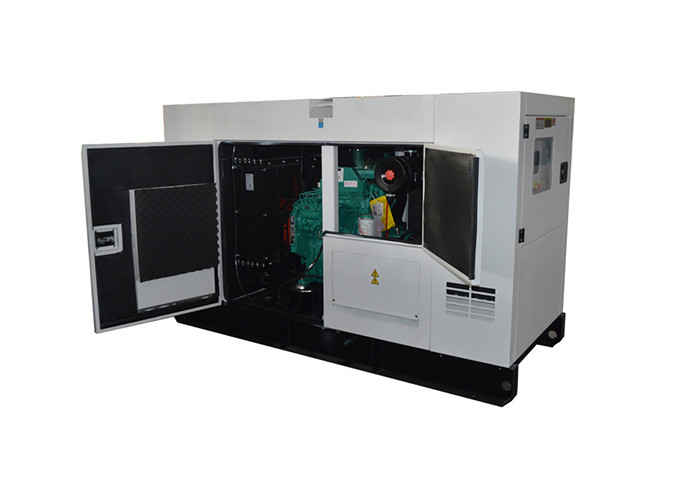

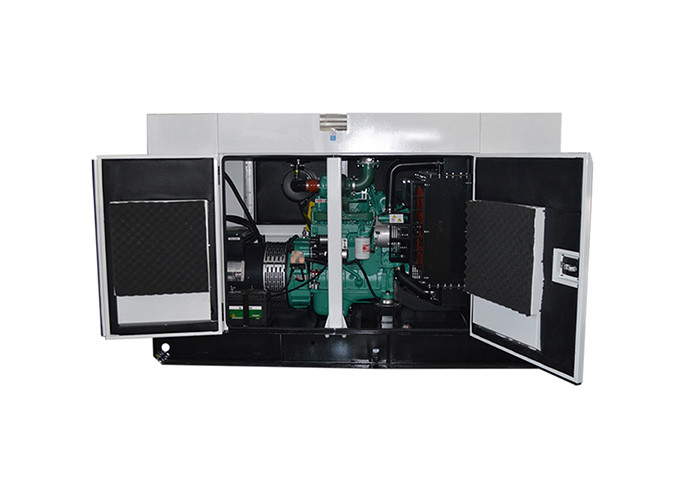

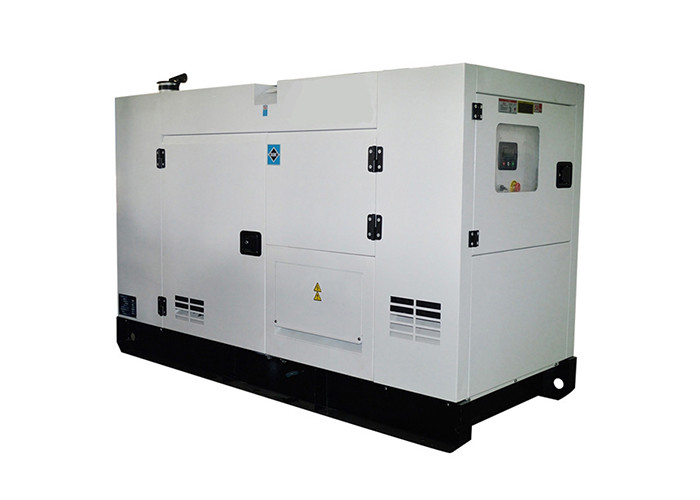

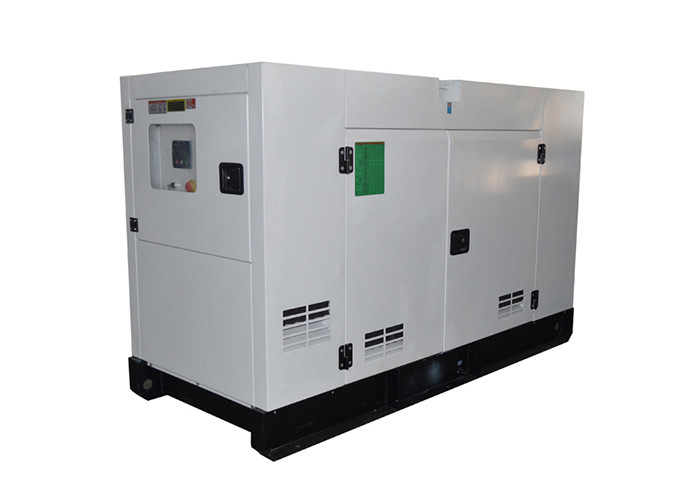

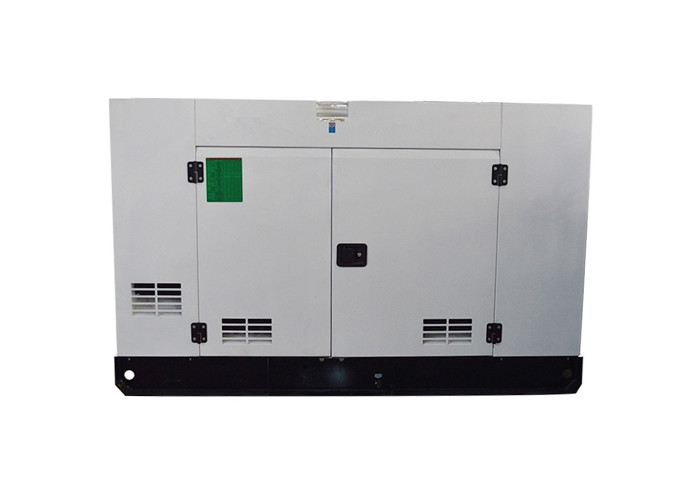

48KW Silent type Generator Set With Electrical start relible cummins Engine
diesel generator specification:
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-DC66 |
| 1.2 | Prime at 50HZ, 40℃ ambient | 48KW 60KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 53KW 66KVA |
| 1.4 | Rated Gen-set output | 230/400V 220/380V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | 2650×1050×1650mm |
| 1.7 | Weight | 1726kg |
| 1.8 | Fuel consumption 100% prime load | 10.7L/h |
| 1.9 | Total heat radiated to ambient | 16KW |
| 1.10 | Noise Level at 7m | 68dB |
| 1.11 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 1.12 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | Cummins |
| 2.2 | Engine Model | 4BTA3.9-G2 |
| 2.3 | Governor/Class | Electrical |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Fuel spray pattern | PT direct injection |
| 2.7 | start-up method | 24V, electric |
| 2.8 | Aspiration | Turbocharged |
| 2.9 | Cooling mode | Radiator cooled (enclose water) |
| 2.10 | Bore and stroke | 102×120 mm |
| 2.11 | Compression ratio | 16.5:1 |
| 2.12 | Displacement | 3.9 L |
| 2.13 | Engine Prime Power at 1500rpm | 50KWm |
| 2.14 | Engine Standby Power at 1500rpm | 55KWm |
| 2.17 | Lubrication oil capacity | 11.0L |
| 2.18 | Coolant capacity - radiator and engine (40℃) | 28L |
| 2.19 | Fuel type | #0 Diesel (Natural temperature) |
| 2.2 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.21 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTENATOR | ||
| 3.1 | Alternator Model | UP224E |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 86.6A |
| 3.12 | Efficiency | 0.888 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
The details of Cummins diesel generator set:
Cummins engines: All brand new, original Cummins.
Description:
1. Power Range: 20kw - 400kw for DCEC Cummins
2. Engine: Original Cummins engine
3. Alternator: Genuine Stamford, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. ATS is optional
6. Type: Open type, Soundproof type, Trailer type, Container type, etc
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
