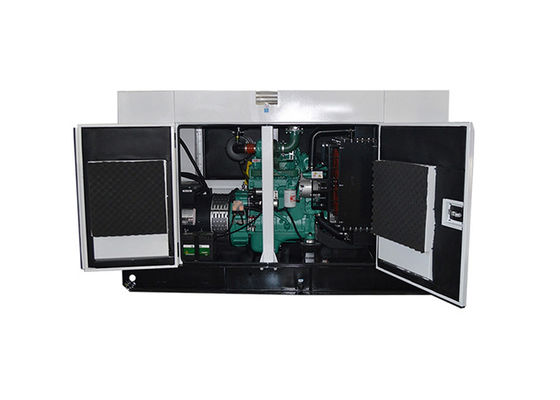

Electrical Equipment 50kva 40kw Diesel Generator Set Silent Canopy Genset
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | PF-FW55 | Certificate | CE/ISO9001 |
|---|---|---|---|
| Power Factor | 0.8 | Starting Method | Mechanical Or Electronic |
| Color | Depend | Engine Speed (rpm) | 1500 |
| Warranty | 1 Year/1000 Hours | Options | ATS/ Water Heater |
| Circuit Breaker | ABB/Delixi | Generator Type | Open Type, Silent Type, Container Type, Trailer Type For Optional |
| High Light | emergency diesel generator,silent diesel generator set |
||
Product Description
electrical equipment 50kva 40kw diesel generator price silent canopy genset
Product Description
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-FW55 |
| 1.2 | Prime at 50HZ, 40℃ ambient | 40KW 50KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 44KW 55KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | Open: 1800*760*1150, Silent: 2400*950*1200 |
| 1.7 | Weight | Open: 940kg, Silent: 1400kg |
| 1.8 | Fuel consumption 100% prime load | 14 |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 2 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | FAWDE |
| 2.2 | Engine Model | 4DX22-65D |
| 2.3 | Governor/Class | Electronic |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 24V, electric |
| 2.8 | Air intake type | Turbocharged |
| 2.9 | Cooling mode | Water Cooling |
| 2.10 | Bore and stroke | 110×125 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 4.75 |
| 2.13 | Engine Prime Power at 1500rpm | 65KWm |
| 2.14 | Engine Standby Power at 1500rpm | 72KWm |
| 2.15 | Lubrication oil capacity | 16L |
| 2.16 | Oil consumption | 0.06 |
| 2.17 | Dry weight of base | 470Kg |
| 2.18 | Dry weight of Gen Pac | 540Kg |
| 2.19 | Overall dimension(G.P) | 1300×700×938(mm) |
| 2.2 | Overall dimension(base) | 970×630×930(mm) |
| 2.21 | 27℃ air consumption ( m³/ min) | 5 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR | ||
| 3.1 | Alternator Model | Stamford/UCI224D |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5% |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 86.6A |
| 3.12 | Efficiency | 88.80% |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1,NEMA1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 270kg |
Company Information
JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.
Portable Series: 2-12kva, air cooled, 1 or 2 Cylinders, 3000rpm/ 3600rpm
Water Cooled Series: 6-3000kva, water cooled, 3-16 Cylinders, 1500rpm/ 1800rpm
