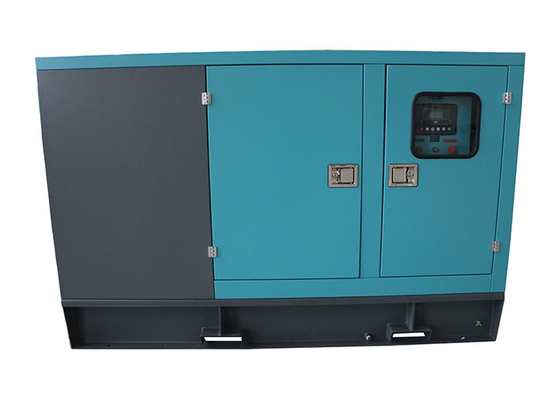

30kva 24kw Rain Proof Silent Type Diesel Power Generator Dynamo Diesel Generators
Product Description
| 1. SPECIFICATIONS OF GEN-SET |
| 1.1 |
Set Model |
GP33FWS |
| 1.2 |
Prime at 50HZ, 40℃ ambient |
24KW 30KVA |
| 1.3 |
Standby at 50HZ, 40℃ ambient |
26KW 33KVA |
| 1.4 |
Rated Gen-set output |
230/400V 50Hz |
| 1.5 |
Rated Relative humidity |
≤ 60 % |
| 1.6 |
Dimension (L×W×H) |
Open: 1800*760*1150,
Silent: 2320*1060*1150 |
| 1.7 |
Weight |
Open: 800kg, Silent: 1100kg |
| 1.8 |
Fuel consumption 100% prime load |
6.7l/h |
| 1.9 |

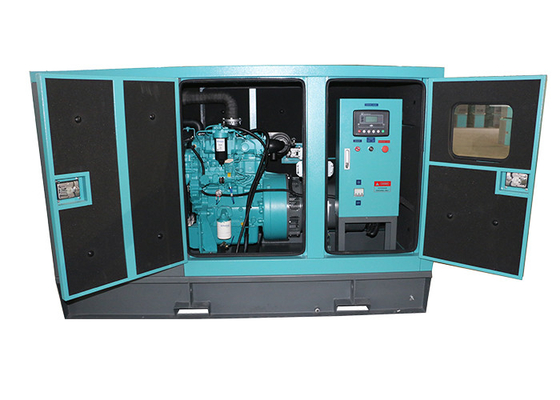

Structure of Gen-set |
The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 2 |
Control system (Optional) |
Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE |
| 2.1 |
Engine Brand |
FAWDE |
| 2.2 |
Engine Model |
4DX21-45D |
| 2.3 |
Governor/Class |
Mechanical or Electronic |
| 2.4 |
Cylinder NO. |
4 |
| 2.5 |
Engine build |
Line |
| 2.6 |
Emission compliant |
Stage II |
| 2.7 |
start-up method |
24V, electric |
| 2.8 |
Air intake type |
Natural |
| 2.9 |
Cooling mode |
Water Cooling |
| 2.10 |
Bore and stroke |
102×118 mm |
| 2.11 |
Compression ratio |
17:01 |
| 2.12 |
Displacement |
3.86 |
| 2.13 |
Engine Prime Power at 1500rpm |
33KWm |
| 2.14 |
Engine Standby Power at 1500rpm |
36KWm |
| 2.15 |
Lubrication oil capacity |
12.5L |
| 2.16 |
Oil consumption |
0.06 |
| 2.17 |
Dry weight of base |
350Kg |
| 2.18 |
Dry weight of Gen Pac |
375Kg |
| 2.19 |
Overall dimension(G.P) |
1155×680×835(mm) |
| 2.2 |
Overall dimension(base) |
810×680×800(mm) |
| 2.21 |
27℃ air consumption ( m³/ min) |
2.6 |
| 2.22 |
Fuel type |
#0 Diesel (Natural temperature) |
| 2.23 |
Filter system |
Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 |
Exhaust system |
Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR |
| 3.1 |
Alternator Model |
STAMFORD / PI 144G |
| 3.2 |
Alternator Type |
A.C. Synchronous |
| 3.3 |
Rated Voltage |
230/400V |
| 3.4 |
Rated Frequency |
50HZ |
| 3.5 |
Rated speed |
1500 RPM |
| 3.6 |
Voltage regulation mode |
Auto |
| 3.7 |
Alternator voltage regulation |
±0.5% |
| 3.8 |
Exciting mode |
Brushless self exciting |
| 3.9 |
Power factor |
0.8 (lagging) |
| 3.10 |
Phase & wires |
3 phase 12 wires |
| 3.11 |
Rated currency |
45.1A |
| 3.12 |
Efficiency |
0.862 |
| 3.13 |
Insulation class |
H |
| 3.14 |
Protection class |
IP23 |
| 3.15 |
Single load step to NFPA110 |
100% |
| 3.16 |
Standards |
IEC34-1,NEMA1 |
| 3.17 |
Max. Ambient Temperature |
40℃ |
| 3.18 |
Min. Ambient Temperature |
- 20℃ |
| 3.19 |
Max. altitude |
1000m |
| 3.20 |
Weight |
156kg |
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Advantages:
. We are a powerful and unity sales team:
. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
