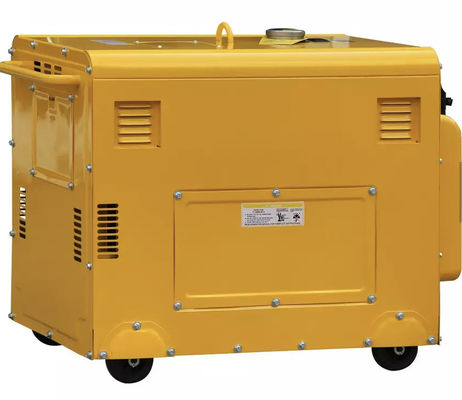

Soundproof EPA Engine Diesel Generator 25KW 30kva Diesel Generator

  • Soundproof EPA Engine Diesel Generator 25KW 30kva Diesel Generator
  • Soundproof EPA Engine Diesel Generator 25KW 30kva Diesel Generator
Place of Origin China（Mainland）
Brand Name PowerFriend
Certification ISO9001/ CE
Model Number PF-FW33S
Minimum Order Quantity 1 set
Price negotiate
Packaging Details poly wooden case or plastic poly
Delivery Time 15 working days
Payment Terms L/C, T/T
Supply Ability 500 sets / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Fawde Diesel Generator Prime Power 25KW 30KVA
Genset Model PF-FW33S Standby Power 28KW 33KVA
Engine Model 4DW92-39D Rated Current(A) 45.1 (A)
Warranty 1 Year Or 1000 Hours Certificates CE, ISO9001
High Light

EPA engine diesel generator

,

Soundproof engine diesel generator

,

25KW 30kva diesel generator
Leave a Message
Product Description

25KW 30KVA Soundproof 15kva EPA Engine Diesel Generator Set



Manual Controller
- A current, Voltage, Frequency simulative meters;
- An oil pressure, a water thermometer and indicator lights;
- 4 additional protection functions are provided optional;
- Start/ stop manually.


Automatic controller
Brand: Smartgen, ComAp or Deepsea
- Control with AMF module;
- Static battery charger;
- Emergency stop push button;
- Basic protection function, etc.



Product describition



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-FW33S
1.2 Prime at 50HZ, 40℃ ambient 25KW 30KVA
1.3 Standby at 50HZ, 40℃ ambient 28KW 33KVA
1.4 Rated Gen-set output 400/230V 50Hz/60HZ
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) Open: 1750*800*1100,
Silent: 2300*1120*1200
1.7 Weight Open: 800kg, Silent: 1200kg
1.8 Fuel consumption 100% prime load 7
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand FAWDE/Xichai
2.2 Engine Model 4DW92-39D
2.3 Governor/Class Mechanical or Electronic
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 24V, electric
2.8 Air intake type Natural
2.9 Cooling mode Water Cooling
2.10 Bore and stroke 102×118 mm
2.11 Compression ratio 17:01
2.12 Displacement 3.86
2.15 Lubrication oil capacity 12.5L
2.16 Oil consumption 0.06
2.21 27℃ air consumption ( m³/ min) 2.6
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1 Alternator Model UP184F
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 45.1A
3.12 Efficiency 0.862
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 156KG



Soundproof EPA Engine Diesel Generator 25KW 30kva Diesel Generator 0
