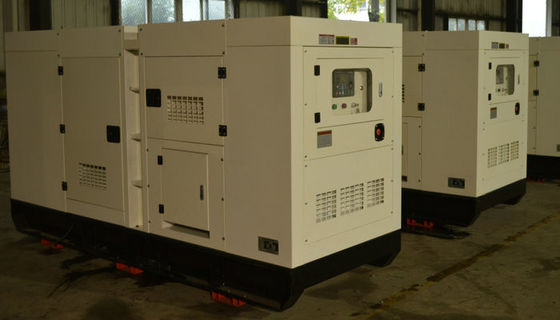

220v - 690v 50kw Electric Deutz Generator 62kva Smartgen Controller
|
GENERATOR SET |
|
|
Genset model |
PF-D62 |
|
Prime power (KW/KVA) |
50/62.5 |
|
Standby power (KW/KVA) |
55/69 |
|
Frequency & voltage |
400V, 50HZ |
|
No. of Phase |
3 |
|
Genset type |
Open skid type |
|
Reference Dimension & Weight (W*H, mm)/KGS |
2050*850*1550;1000kgs |
|
DIESEL ENGINE |
|
|
Engine brand & Model |
DEUTZ TD226B-4D |
|
Rated output |
60KW |
|
Rated Speed |
1500RPM |
|
Engine Type |
In-line, direct injection, four stroke |
|
No. of cylinder |
4 |
|
Bore*stroke |
105*120mm |
|
Aspiration method |
turbocharged |
|
Governor |
Mechanical/Electrical |
|
Starting method |
Electric starting |
|
Cooling method |
Forced water cooled |
|
Displacement |
4L |
|
Fuel consumption |
208g/kw.h |
|
Rotation direction of crankshaft |
Counter clockwise(face to flywheel end) |
|
ALTERNATOR |
|
|
Alternator brand & model |
Stamford/Leroy Somer/China reputed brand |
|
Type |
Brushless & self-excited |
|
No. of phase |
3 |
|
Volatage |
400V |
|
Frequency |
50HZ |
|
Power Factor |
0.8 |
|
Insulation Grade |
H |
|
Protection Grade |
IP22/23 |
|
Altitude |
≤1000m |
Deutz air-cooled power generation is to choose Beijing internal combustion engine co., LTD., the production of air-cooled engine matched brushless generator. Its characteristic is: low noise, low fuel consumption, small size, suitable for high elevations.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1. ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
