High Light
deutz generator set
,3 phase diesel generator
-
Rated Power20KW /25 KVA
-
Standby Power22KW /28KVA
-
EngineDeutz / F3L912
-
AlternatorOrginal Stamford / Mecc Alte
-
Controler PanelDeepSea / Smartgen
-
Air BreakerMCCB DLIXI 3 Pole Or 4 Pole
-
Warranty1 Year Or 1000 Hours
-
CertificateISO/CE/ KENYA PVOC
-
Place of OriginWUXI city China
-
Brand NameGPRO
-
CertificationISO9001/ISO14001/CE
-
Model NumberB-D25
-
Minimum Order Quantity1 SET
-
Pricenegotiation
-
Packaging DetailsPOLY WOODEN CASE
-
Delivery Time25 DAYS
-
Supply Ability500/SETS/ MONTH

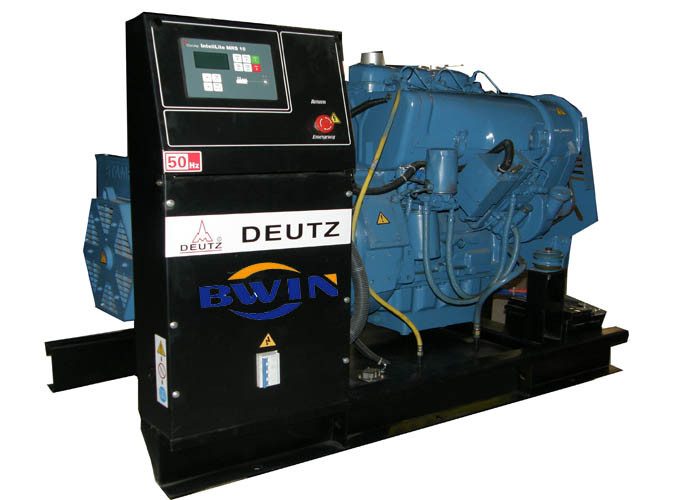

Mechanical Deutz Generator Air cooled for desert 20kw 25kva diesel power
Mechanical Deutz Generator Air cooled for desert 20kw 25kva diesel power
Desert use Air cooled Deutz diesel generator 25kva 20kw Specification:
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | B-D25 |
| 1.2 | Prime at 50HZ, 40℃ ambient | 20KW 25kVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 22KW 28kVA |
| 1.4 | Rated Gen-set output | 400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | 1300*773*1015mm |
| 1.7 | Weight | 475kg |
| 1.8 | Fuel consumption 100% prime load | 6.5L/h |
| 1.9 | Structure of Gen-set |
The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 1.10 | Control system (Optional) |
Basic control panel or Advanced control panel with automatical start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | DEUTZ |
| 2.2 | Engine Model | F3L912 |
| 2.3 | Governor/Class | Mechanical/Electric |
| 2.4 | Cylinder NO. | 3 |
| 2.5 | Engine build | Line |
| 2.6 | Start-up method | 12/24V,electric |
| 2.7 | Battery capacity | 70~100A/hr |
| 2.8 | Fuel spray pattern | Direct injection |
| 2.9 | Aspiration | Natural |
| 2.10 | Cooling mode | Air-cooled |
| 2.11 | Bore and stroke | 100 × 120mm |
| 2.12 | Displacement | 2.828L |
| 2.13 | Lubricating oil capacity | 11L |
| 2.14 | Engine Prime Power at 1500rpm | 24kWm |
| 2.15 | Engine Standby Power at 1500rpm | 26kWm |
| 2.16 | Fuel consumption | ≤248 |
| 2.17 | Fuel type | #0 Diesel (Natural temperature) |
| 2.18 | Filter system |
Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.19 | Exhaust system |
Adopt industrial high efficiency muffler and ripple pump |
| 2.20 | Engine derating – altitude |
Above the sea level 1525m high, a fall of 4% from a rise of 300m. |
| 2.21 | Engine derating – temperature |
Above the ambient temperature 50℃ high, the engine will be a fall of 3% from a rise of 11%. |
| 3. SPECIFICATIONS OF ALTENATOR | ||
| 3.1 | Alternator Model | PI 144E |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5％ |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated current | 40A |
| 3.12 | Efficiency | 85.80% |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1 |
| 3.17 | Ambient Temperature | 40℃ |
| 3.18 | Relative humidity | - 20℃ |
| 3.19 | Altitude | 1000m |
| 3.20 | Weight | 150㎏ |
Description:
1. Power Range: 20KW / 25KVA
2. Engine: Original Air cooled Deutz engine
3. Alternator: Stamford / Mecc Alte
4. Controller: Deepsea or Smartgen
5. Type: Open type, Soundproof type, weatherproof type, Trailer type, Container type, etc
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
7. Special for deserts and less water place.
Competitive Advantage:
1. Engine low fuel consumption.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
10. No need water to cool the generators.
Generators photos:
