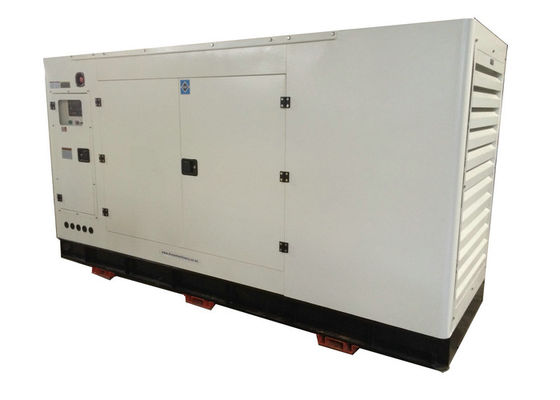

60kw Air Cooled Deutz Generator / Power Diesel Genset 50Hz / 1500rpm
Genset Model | PF-D75 | ||||||||||||||||
Prime Power(50HZ) | 60KW / 75KVA | ||||||||||||||||
Standby Power(50HZ) | 66KW /82KVA | ||||||||||||||||
Frequency/Speed | 50Hz/1500rpm | ||||||||||||||||
Standard Voltage | 230V/400V | ||||||||||||||||
Voltage Available | 220V/380V | ||||||||||||||||
Phases | Three phases, four wires | ||||||||||||||||
Manufacturer | BWIN |
Engine
Manufacturer | Deutz Engines Company Limited | ||||||||||||||||
Model | BF6L913 | ||||||||||||||||
Engine speed | 1500rpm | ||||||||||||||||
Engine power | |||||||||||||||||
Standby power | 50kw | ||||||||||||||||
Prime power | 47kw | ||||||||||||||||
Number of cylinder | 4 cylinder in-line | ||||||||||||||||
Type | Vertical 4-stroke air-cooled deirect injection | ||||||||||||||||
Aspiration | Naturally aspirated | ||||||||||||||||
Bore * Stroke | 102*125mm | ||||||||||||||||
Displacement | 4.086 L | ||||||||||||||||
Compression ratio | 18 | ||||||||||||||||
Direction of rotation | clockwise | ||||||||||||||||
Combustion Air Flow | 4.2m3/min | ||||||||||||||||
Exhaust Gas Flow | 4.33 m3/min | ||||||||||||||||
Exhaust Gas Temperature | 550oC | ||||||||||||||||
Area of heat radiation | 0.16m2 | ||||||||||||||||
Noise dB | 105a | ||||||||||||||||
Electric System | 12V/24V |
Alternator
Manufacturer | Leroy-somer Electro-technique (Fuzhou) Company Ltd. | ||||||||||||||||
Model | LSA42.3M8 | ||||||||||||||||
Output power | 40 KW | ||||||||||||||||
AVR model | R220 / R438 | ||||||||||||||||
Number of phase | 3 | ||||||||||||||||
Power factor (Cos Phi) | 0.8 | ||||||||||||||||
Altitude | ≤ 1000 m | ||||||||||||||||
Overspeed | 2250RPM | ||||||||||||||||
Number of Pole | 4 | ||||||||||||||||
Exciter type | Shunt / AREP | ||||||||||||||||
Insulation class | H | ||||||||||||||||
Voltage regulation | ±1% | ||||||||||||||||
Sustained short circuit current | 300% (3 IN) : 10s | ||||||||||||||||
Total harmonics (TGH/THC) | no load < 3% - on load < 2% | ||||||||||||||||
Wave form : NEMA = TIF | < 50 | ||||||||||||||||
Bearing | single |
Deutz air-cooled power generation is to choose Beijing internal combustion engine co., LTD., the production of air-cooled engine matched brushless generator. Its characteristic is: low noise, low fuel consumption, small size, suitable for high elevations.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1. ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
