3 Phase 12 Wire AVR AC Indoor Electric Generator Alternator 3000RPM 3600RPM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power(Prime/Standby) | 10 To 500kva | Frequency | 50/60hz |
|---|---|---|---|
| AVR | Brushless | Bearing | Single/Double |
| Copper | 100% Copper | Protection | IP 22 Or IP23 |
| Insulation | Class F/H | Warranty | One Year Or 1000hrs |
| Voltage | 190-454v | ||
| High Light | generator alternator,stamford alternators |
||
Product Description

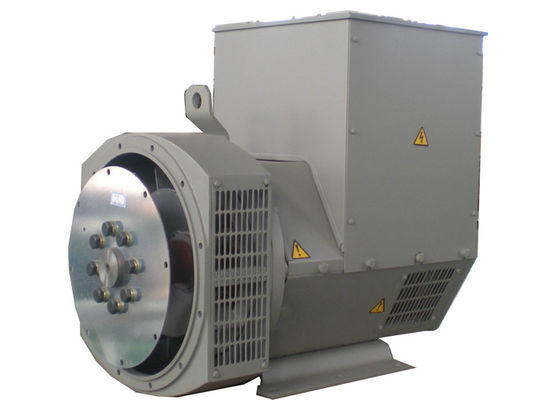

3 phase 12 wire AVR type brushless alternators AC Indoor Electric Generator 3000RPM 3600RPM
Brushless alternator specifications (6.5kw to 1000kw):
|
Model |
3 PHASE 50HZ 1500RPM |
3 PHASE 60HZ 1800RPM 110-240V/230-460V |
||
|
KVA |
KW |
KVA |
KW |
|
|
PF164A |
8.1 |
6.5 |
10.2 |
8.2 |
|
PF164B |
11 |
8.8 |
13.8 |
11 |
|
PF164C |
13.5 |
10.8 |
16.9 |
13.5 |
|
PF164D |
16 |
12.8 |
20.2 |
16 |
|
PF184ES |
20 |
16 |
25 |
20 |
|
PF184E |
22.5 |
18 |
28.8 |
23 |
|
PF184F |
27.5 |
22 |
34.4 |
27.5 |
|
PF184G |
31.3 |
25 |
37.5 |
30 |
|
PF184H |
37.5 |
30 |
46.9 |
37.5 |
|
PF184J |
40 |
32 |
50 |
40 |
|
PF224C16 |
42.5 |
34 |
52.5 |
42 |
|
PF224D16 |
50 |
40 |
62.5 |
50 |
|
PF224E16 |
60 |
48 |
72.5 |
58 |
|
PF224F16 |
72.5 |
58 |
87.5 |
70 |
|
PF224G16 |
85 |
68 |
100 |
80 |
|
PF274C14 |
100 |
80 |
125 |
100 |
|
PF274D14 |
114 |
91 |
138 |
110 |
|
PF274DL14 |
125 |
100 |
156 |
125 |
|
PF274E14 |
140 |
112 |
168 |
134 |
|
PF274EL14 |
150 |
120 |
187.5 |
150 |
|
PF274F14 |
160 |
128 |
190 |
152 |
|
PF274G14 |
175 |
140 |
213 |
170 |
|
PF274H14 |
200 |
160 |
245 |
196 |
|
PF274J14 |
225 |
180 |
281 |
225 |
|
PF274K14 |
250 |
200 |
320 |
256 |
|
PF444C1 |
250 |
200 |
320 |
256 |
|
PF444D1 |
294 |
135 |
380 |
305 |
|
PFK444D1 |
313 |
250 |
390 |
312 |
|
PF444E1 |
325 |
260 |
394 |
315 |
|
PFK444E1 |
350 |
280 |
405 |
324 |
|
PF444F1 |
375 |
300 |
488 |
390 |
|
PFK444F1 |
400 |
320 |
500 |
480 |
|
PF544C1 |
450 |
360 |
594 |
475 |
|
PF544D1 |
500 |
400 |
625 |
500 |
|
PF544DL1 |
563 |
450 |
703 |
563 |
|
PF544E1 |
600 |
480 |
750 |
600 |
|
PF544FD1 |
625 |
500 |
780 |
624 |
|
PF544F1 |
670 |
536 |
800 |
640 |
|
PF634B |
750 |
600 |
900 |
720 |
|
PF634C |
800 |
640 |
958 |
766 |
|
PF634D |
910 |
728 |
1090 |
872 |
|
PF634E |
1000 |
800 |
1197 |
958 |
|
PF634F |
1130 |
904 |
1332 |
1066 |
|
PF634G |
1250 |
1000 |
1450 |
1160 |
Description:
1. Power Range: 6.5-1000kw
2. Alternator: AC three phase/ single phase, brushless, 100% copper.
3. Color: Can be customized
4. AVR: MX321, MX341, AS440, SX440, SX460, etc
5. The generators have been designed for use in a maximum ambient temperature of 40℃ and altitude less than 1000M above sea level.
6. Arranges in order all voltages may obtain from the single wide wingding,also namely (three-phase) and 4 (single-phase) reorganizes through 12 terminals may obtain.
7. Other special voltage can meet by our company.
8. Optinal permanent magnetic alternator,provide invariable excitation in any situation.
9. Easy to be connected with power network or other alternators.Standard 2/3pitch windings avoid excessive neutral current.
10. Dynamically balanced rotords,with single or teo sealed ball bearings.
11. Simple installation and maintenance with easy access to terminals,rotating diodes and coupling bolts.
12. Wide range of flange adaptor and single bearing coupling disc.
13. Built to conform to all leading industrial standards.
Applications:
For Genset, generator replacement, reselling, etc.
Winding:
All generator stators are wound to 2/3 pitch
Competitive Advantage:
1. Full power.
2. All with 100% copper.
3. low consumption
4. The components we use are in high quality.
5. Pre and after sales service is provided.
6. Fast response for the inquires, service, etc.
Euipments for your reference:
Brushless alternators Photos:
Brushless alternators Packing and Loading Photos:
